機架式
CS-R29
2U 12顆硬碟盒 機架式機箱
- 支援最大尺寸為 E-ATX 的主機板

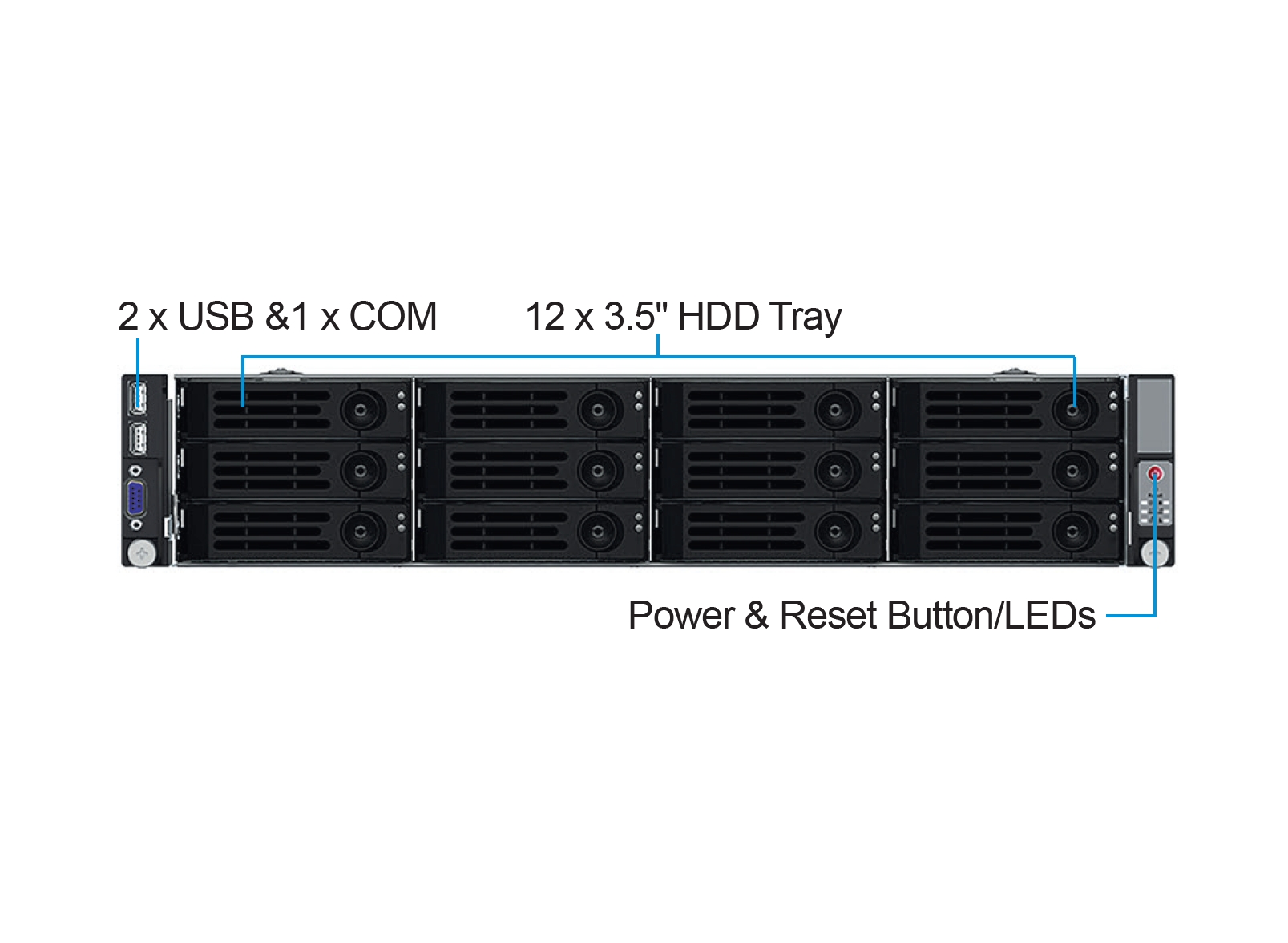

- 12 個 3.5 英吋可插拔 HDD 托盤

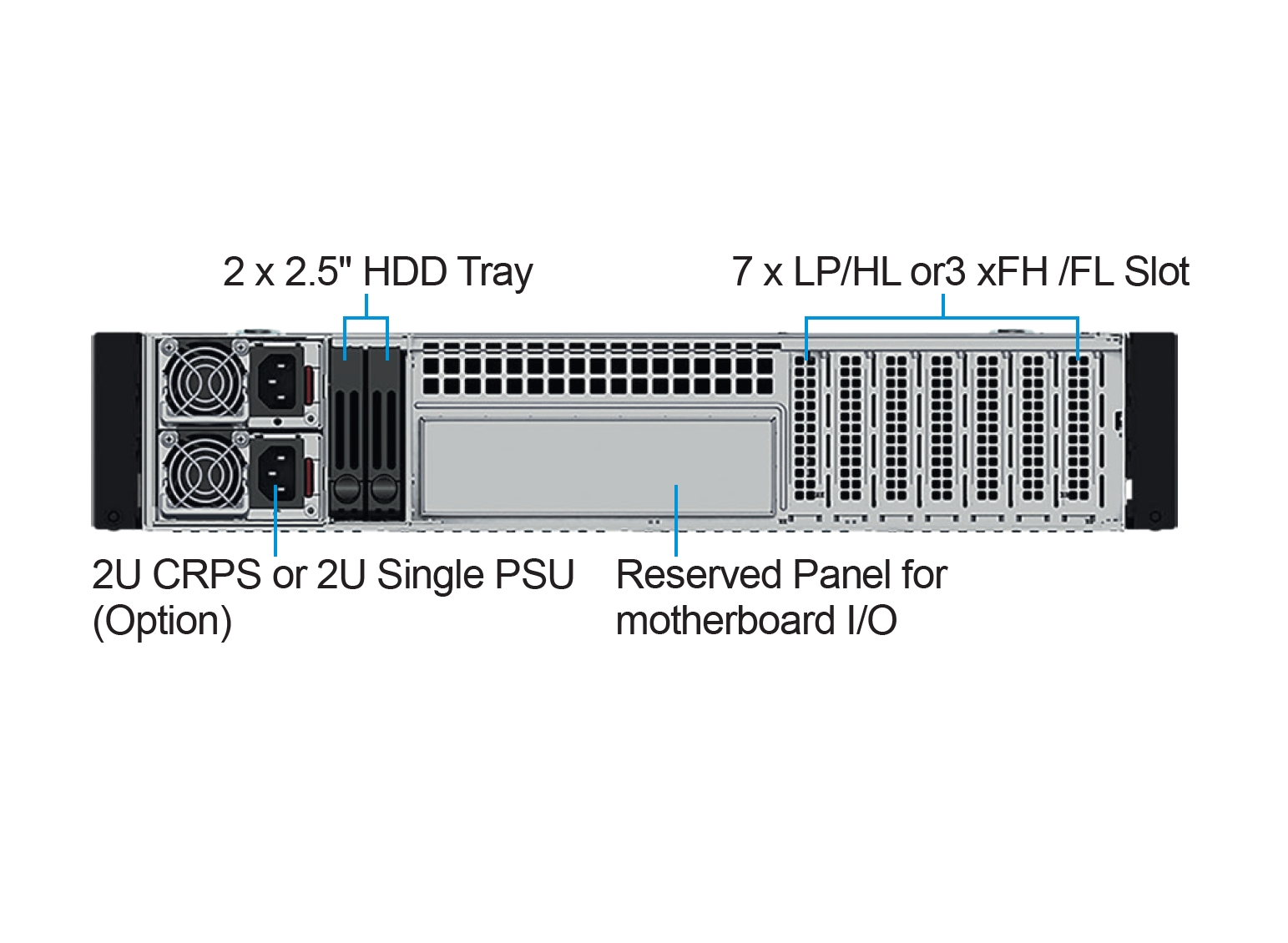

- 2 x 2.5” 可插拔 HDD 托盤（後）
- 7 個薄型/全長擴充槽
- 2 個 USB 3.0
| Model | CS-R29 |
| M/B Form Factor | E-ATX, ATX, Micro-ATX, Mini-ITX |

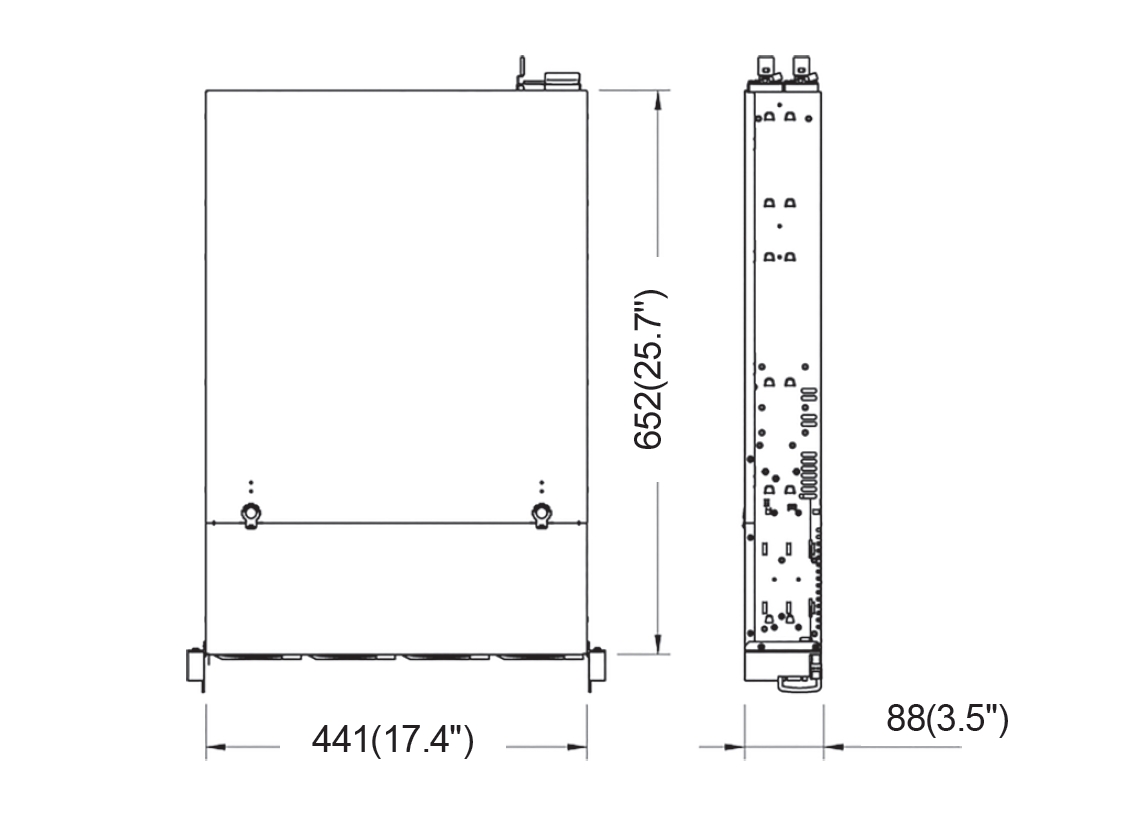

| Dimensions (W x D x H) | 438mm x 647mm x 88mm (17.2” x 25.5” x 3.5”) |
| Color | Black C (Front panel only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 12 x 3.5” Swappable HDD Trays
2 x 2.5” Swappable HDD Trays(Rear) |
| Peripheral Bay | N/A |
| HDD Backplane | 12 Port 12Gbps SAS/ SATA to 3-Port Mini-SAS HD with SGPIO |
| Expansion Slot | 7 x Low-Profile/ Full-Length
3 x Full-Height/ Full-Length (Option) |

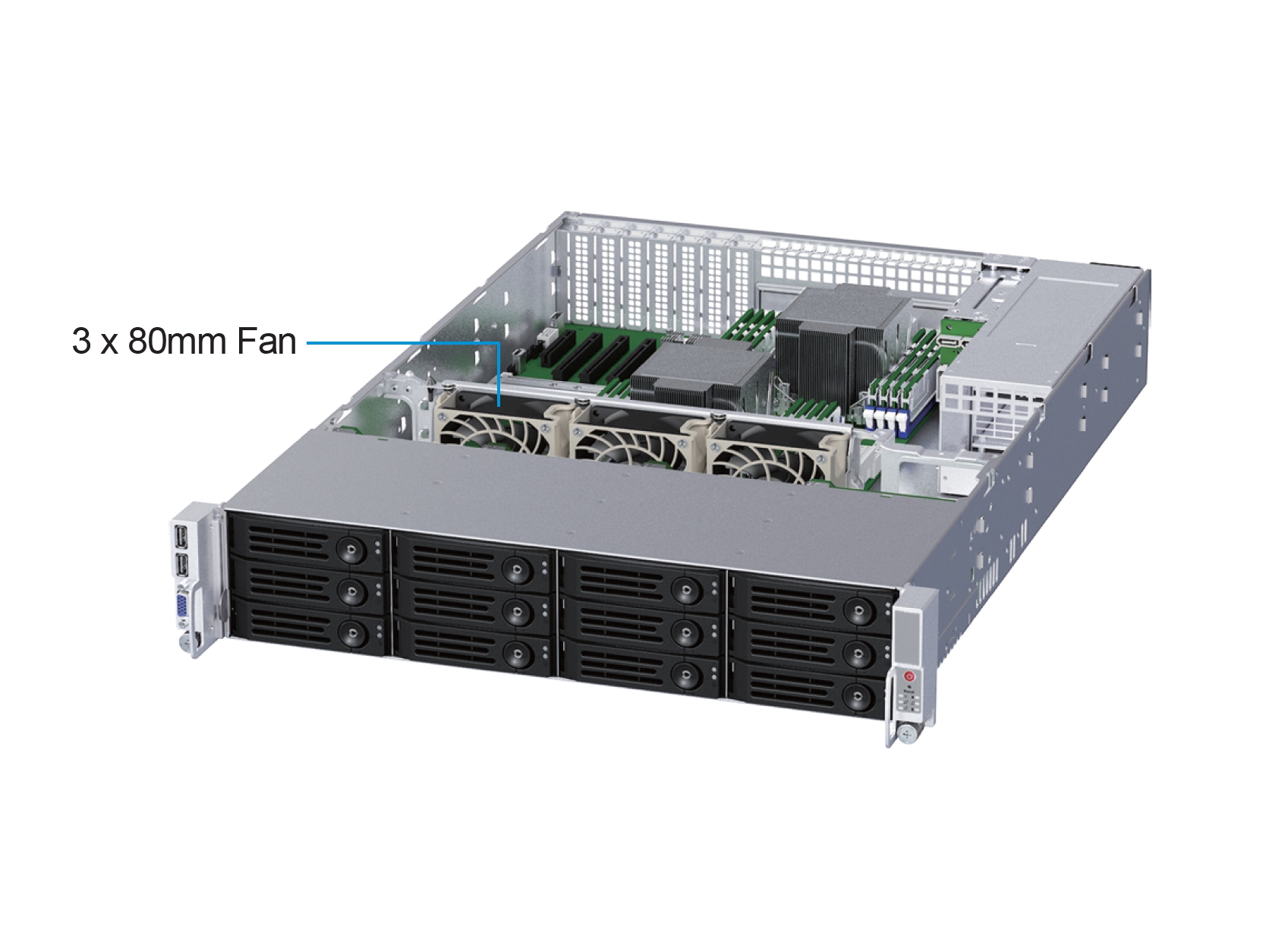

| System Cooling | 3 x 8038mm PWM fan |
| Front Panel | Input / Output
2 x USB 3.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | 2U CRPS Power Supply: D260 x W77 x H84mmx(Optional)
2U Single Power Supply: D240 x W100 x H70mm (Optional) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H200 | 2.5” HDD Tray with Easy Lock |
| HDD Tray | AC-H201 | 2.5” Tool Less-HDD Tray |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” to 2.5” HDD Converter Tray with Easy Lock |
| HDD Tray | AC-H34 | 3.5” to 2.5” HDD Converter Tray with Key Lock |
| Bracket | AC-K200 | 3.5” to 2.5” HDD Tray Bracket |
| Backplane | AC-B237 | 12-port 12Gbps SAS/SATA to 3-port Mini-SAS HD with SGPIO |
| Backplane | AC-B920 | 2-port 6Gbps SAS/SATA to SATA (for 2.5” HDD) |
| Power Supply | AC-PR5500 | 550W 2U CRPS PSU, 80PLUS Gold (Brand: Acbel) |
| Power Supply | AC-PR6500 | 650W 2U Redundant PSU, 80PLUS Gold (Brand: Acbel) |
| Power Supply | AC-PR1K20 | 1200W 2U CRPS PSU, with PDB & BKT (Brand: Acbel) |
| Power Supply | AC-PS5501 | 550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| Power Supply | AC-PS5500 | 550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| Power Supply | AC-PS6500 | 650W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| Power Supply | AC-PR8000 | 800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel ) |
| Slide Rail | AC-R50 | 2U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless |
| Slide Rail | AC-R55 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless |
| Slide Rail | AC-R53 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square to Round Hole converter |
| Heatsink | - | Please Refer Heatsink Product List for More Option |
