機架式
CS-R11
1U 機架式機箱
- 1U 機架式 19.85” 深度機殼
- 支援最大ATX尺寸的主機板

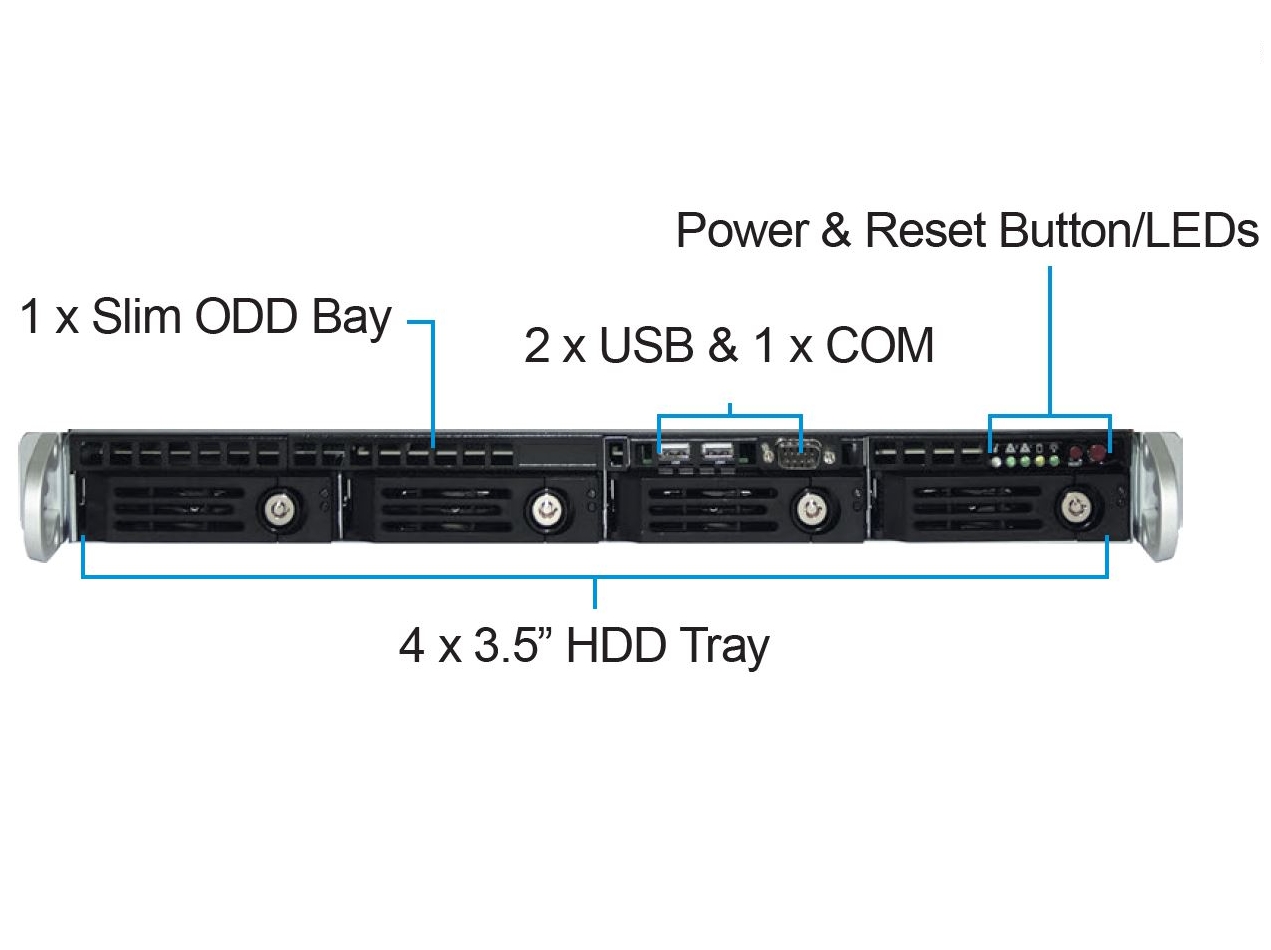

- 4 x 3.5” 可插拔 HDD 托盤（正面）
- 2 x USB 和 1 x COM 連接埠（正面）
- 1 個透過轉接卡的全高/半長擴充槽
| Model | CS-R11 |
| M/B Form Factor | Mini-ITX, Micro-ATX, ATX |
| Dimensions (W x D x H) | 437mm x 503mm x 43mm (17.2” x 19.85” x 1.69”) |
| Color | Black (Front panel only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 4 x 3.5” SAS/ SATA HDD Trays (Front) |
| Peripheral Bay | 1 x Slim ODD Bay (Optional) |
| HDD Backplane | 4-port 6 Gbps SAS/ SATA to 4-port SAS/ SATA
4-port 6Gbps SAS/ SATA to 4-port SAS/ SATA W/ SGPIO |

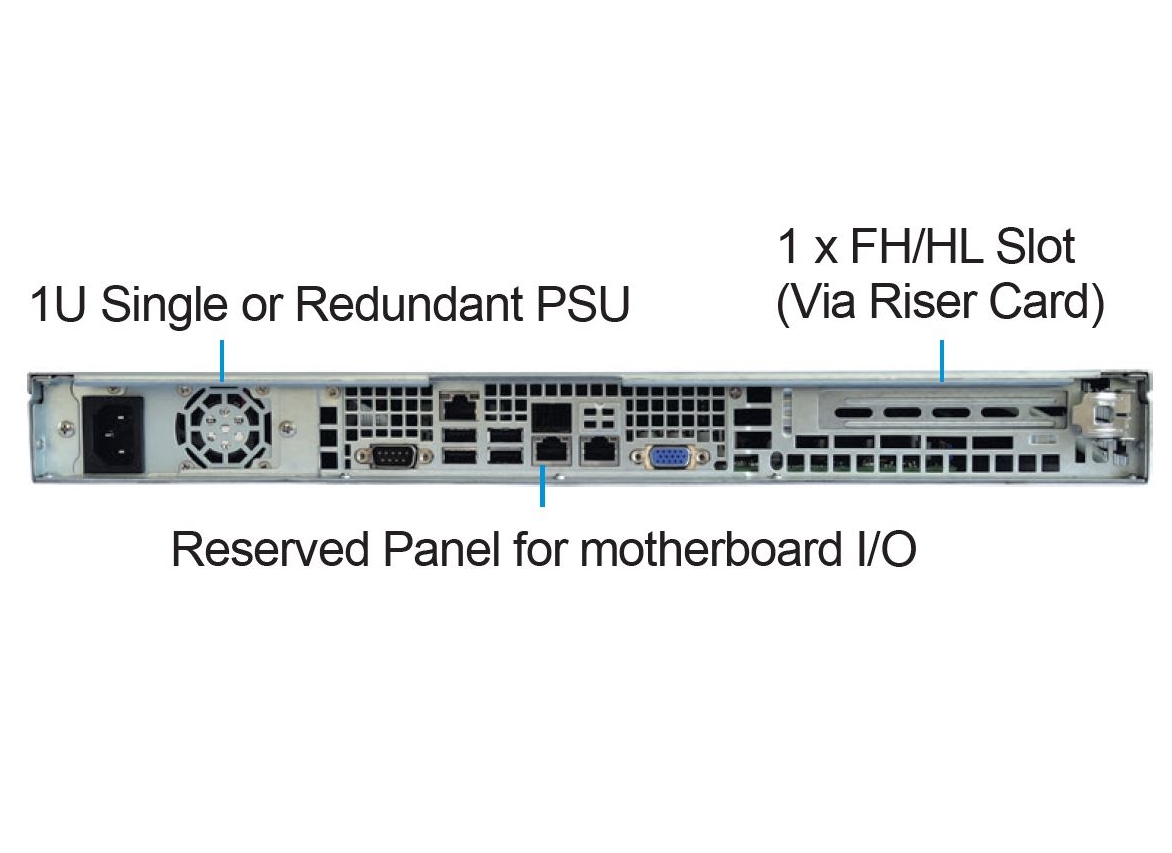

| Expansion Slot | 1 x Full-Height/ Half-Length via Riser Card |

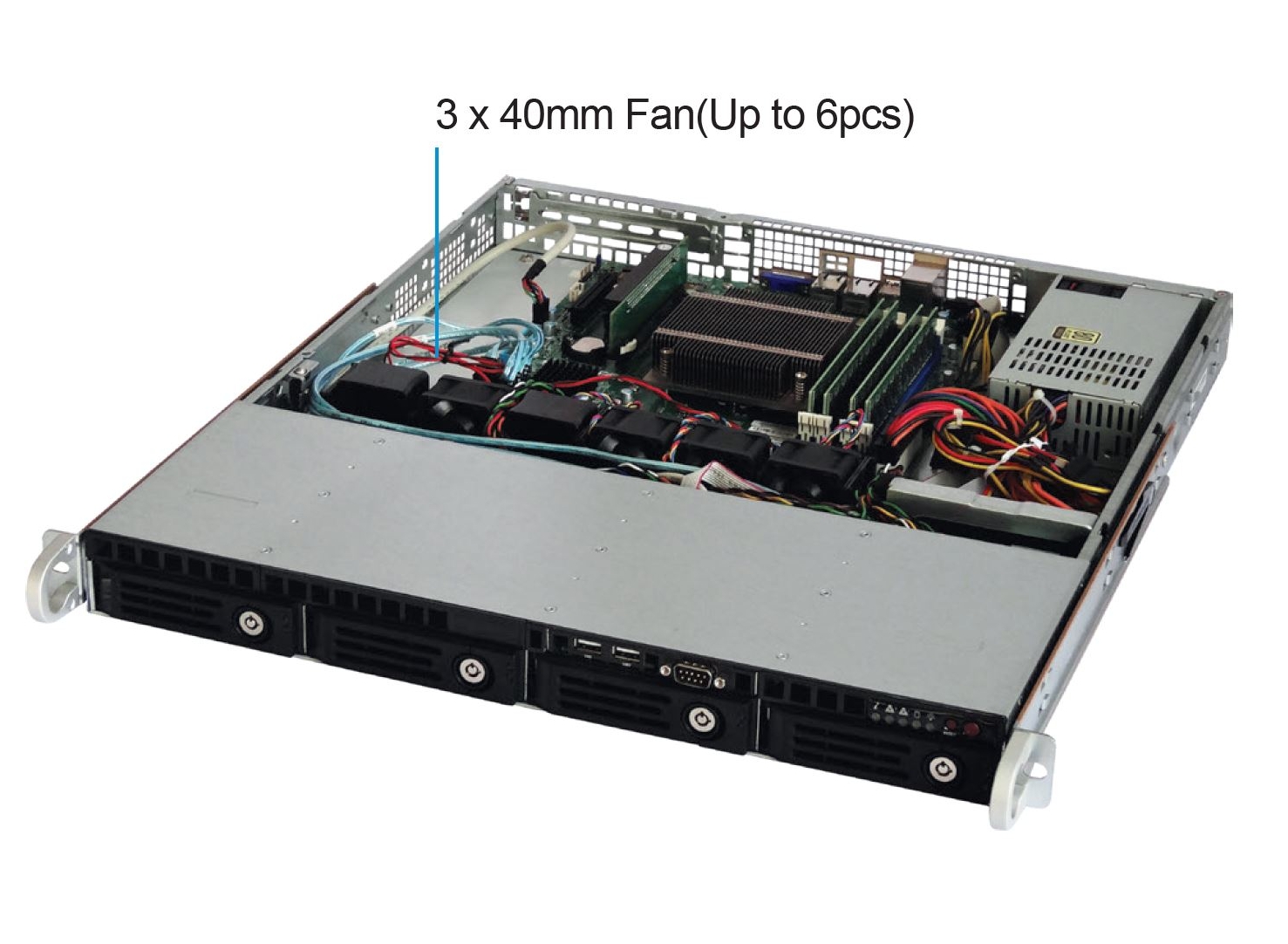

| System Cooling | 3 x 40mm Swappable PWM Fan (Up to 6 Fans) |
| Front Panel | Input / Output
2 x USB 2.0 or USB 3.0 (Optional) Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED |
| Physical Secure | Chassis Intrusion switch |
| Power Supply | 1U single PSU (Optional): D220 x W100 x H40mm
1U redundant PSU (Optional): D220 x W55 x H40mm |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 85% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H31 | 3.5" HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5" HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5" HDD Tray with Easy Lock (Metal) |
| HDD Tray | AC-H34 | 3.5" HDD Tray with Key Lock (Metal) |
| Bracket | AC-K200 | 3.5" to 2.5" HDD Tray Bracket |
| Bezel | AC-F100 | 1U Plastic Front Bezel with Key Lock, Black |
| Backplane | AC-B130 | 4-Port 6Gbps SAS/SATA to SATA |
| Backplane | AC-B131 | 4-port 6Gbps SAS/SATA to SATA with SGPIO |
| PSU | AC-PS2501 | 250W 1U Single PSU, Flex-ATX (IEC62368) (Brand: Liteon) |
| PSU | AC-PS2500 | 250W 1U Single PSU, Flex-ATX, 80PLUS Bronze (IE62368) (Brand: FSP) |
| PSU | AC-PS3500 | 350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Brand: Acbel) |
| PSU | AC-PS4000 | 400W 1U Single PSU, Flex-ATX, with PDB&BKT (Brand: Acbel) |
| PSU | AC-PR6001 | 600W 1U Redundant PSU with PDB&BKT (Brand: 3Y) |
| Slide Rail | AC-R102 | 1U Slide Rail, Thin Type, 26.5"~33.05", Linear, Toolless |
| Slide Rail | AC-R56 | 1U Slide Rail, Thin Type, 19"~26.4", Linear, Toolless |
| Heatsink | - | Please Refer Heatsink Product List for More Option |
