ラックマウント
CS-R46
4U 24ベイ ラックマウント シャーシ
- EE-ATXまでのマザーボードサイズをサポート

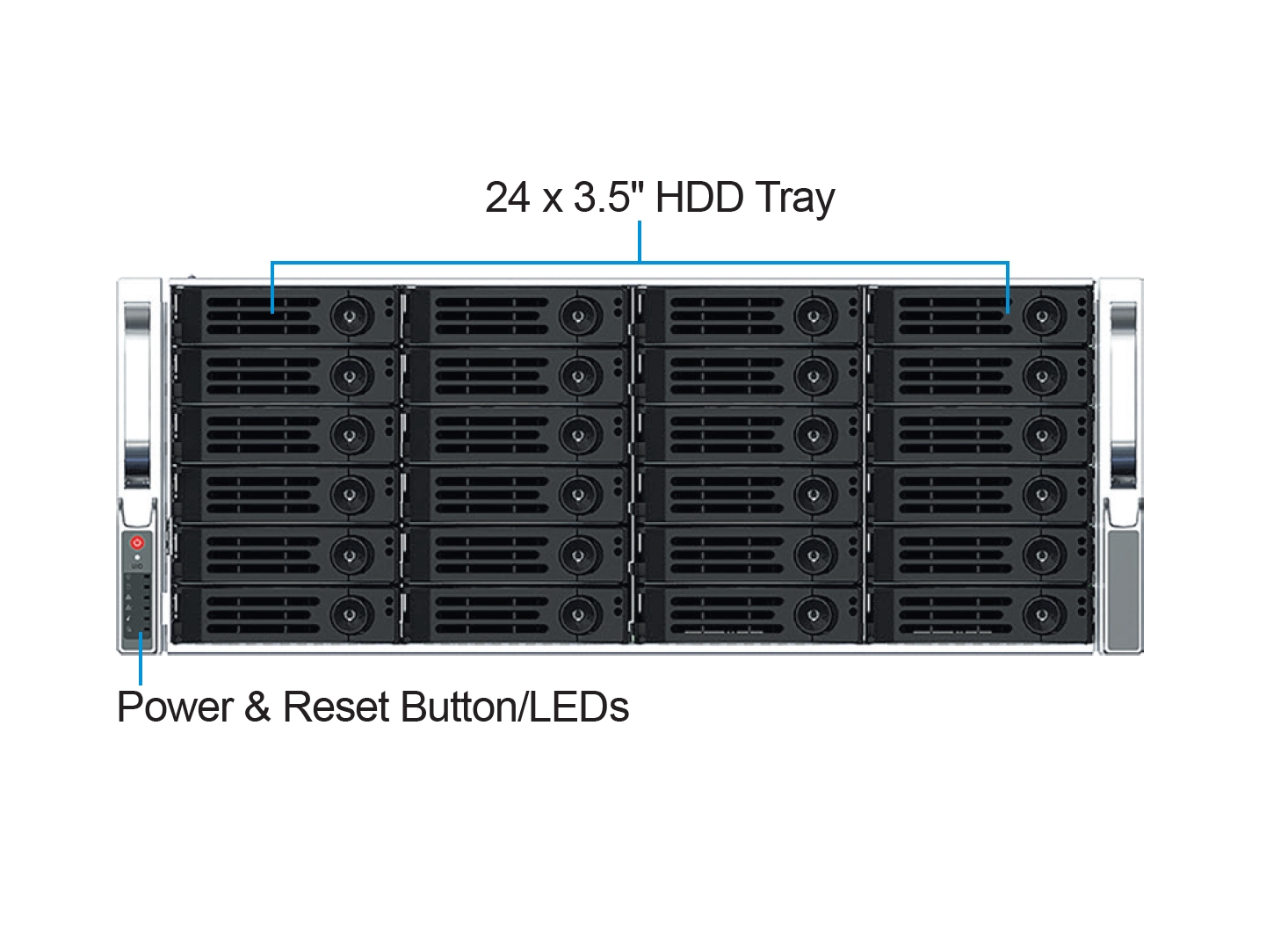

- 24 x 3.5 インチ交換可能 HDD トレイ 2 x 2.5 インチ交換可能 HDD トレイ (オプション)
- 2 x 2.5 インチ内蔵 HDD ベイまたは 1 x 3.5 インチ HDD ベイ (オプション)
- フルハイト/フルレングス拡張スロット 7 個
- オプションの2U CRPSまたは1U冗長PSU
| Model | CS-R46 |
| M/B Form Factor | EE-ATX(13” x 13.68”), E-ATX, ATX, Micro-ATX, Mini-ITX |
| Dimensions (W x D x H) | 437 x 660 x 178mm (17.2" x 26" x 7") |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 24 x 3.5” Swappable HDD Tray
2 x 2.5” Swappable HDD Tray 2 x 2.5” Internal HDD Bay or 1 x 3.5” Internal HDD Bay |
| Peripheral Bay | N/A |
| HDD Backplane | 24-port 12 Gbps SAS/ SATA to Mini-SAS HD or 12 Gbps single-expender |

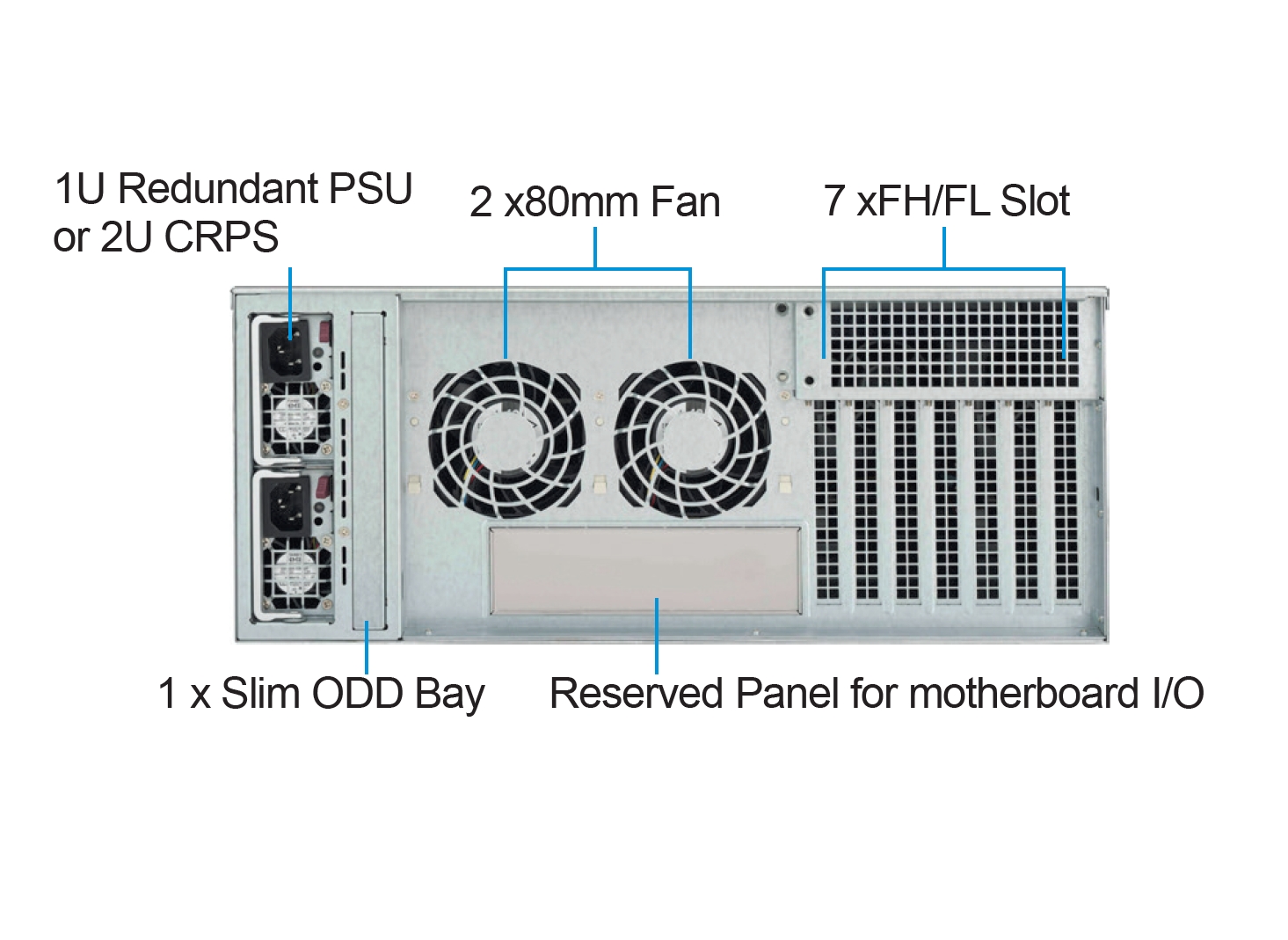

| Expansion Slot | 7 x Full-Height/ Full-Length |

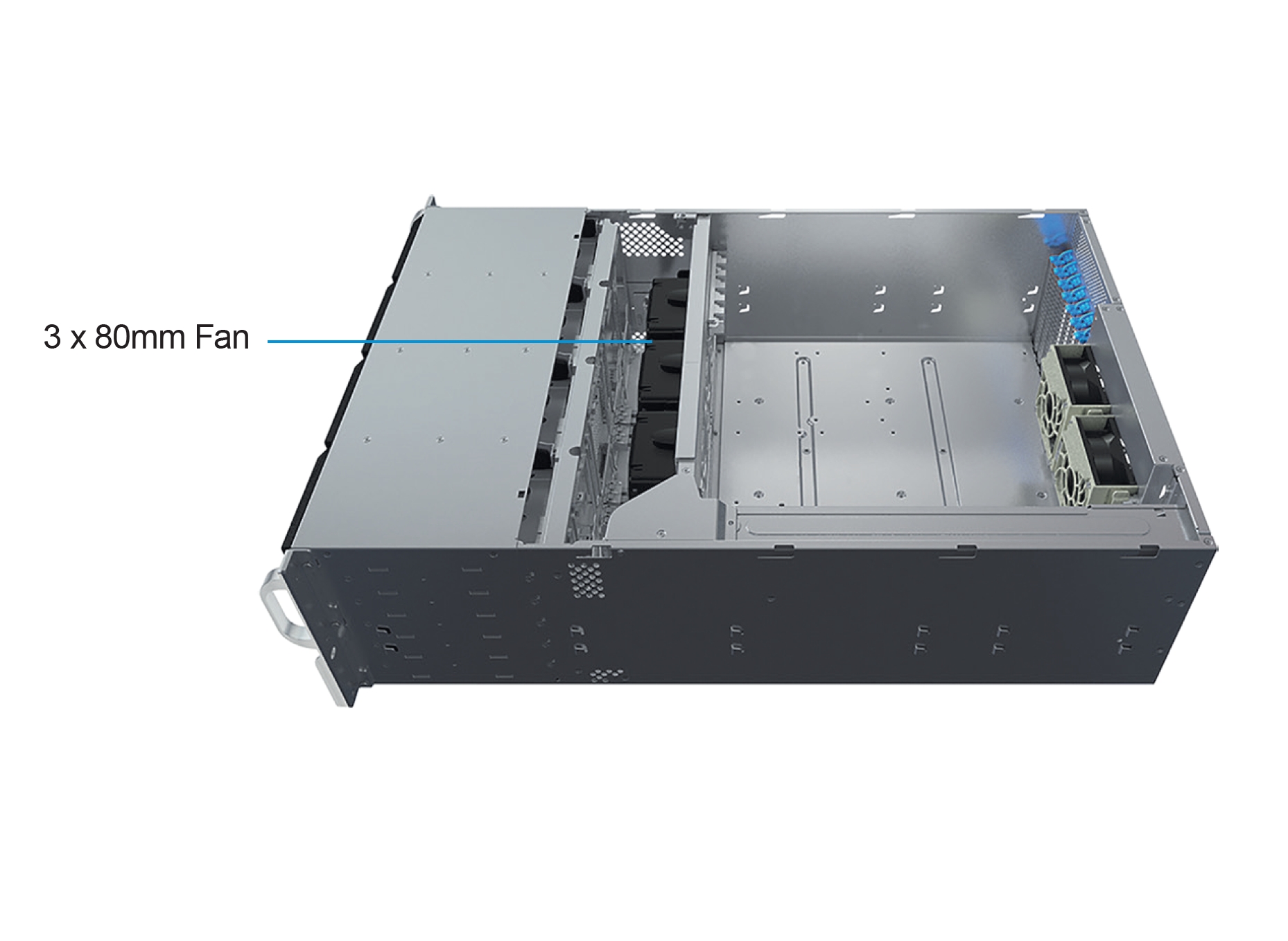

| System Cooling | 3 x 80mm PWM Fans
2 x 80mm PWM Fans (Rear) |
| Front Panel | Input / Output
2 x USB 2.0 or 3.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | 2U CRPS Power Supply: D260 x W77 x H84mm (Optional)
1U Redundant Power Supply : D336 x W76 x H40 mm (Optional) |
| Environment | Operating Temperature: 5° ~ 35°C (41° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H204 | 3.5” to 2.5” HDD Converter Tray |
| HDD Tray | AC-H305 | 3.5” HDD Tray with Easy Lock (Black button) |
| HDD Tray | AC-H306 | 3.5” HDD Tray with Easy Lock (Purple button) |
| Backplane | AC-B430 | 8-port 12Gbps SAS/SATA to 2-port Mini-SAS HD with SGPIO |
| Power Supply | AC-PS8501 | 850W PS/2 ATX PSU, 80PLUS Gold (Brand: Liteon) |
| Power Supply | AC-PS1K00 | 1000W ATX PS/2 PSU (Brand: Acbel) |
| Power Supply | AC-PS1K20 | 1200W ATX PS/2 PSU (Brand: Acbel) |
| Power Supply | AC-PS2K00 | 2000W ATX PS/2 PSU (Brand: Compuware) |
| Slide Rail | AC-R57 | 4U Slide Rail, Think Type, 26.5”~36.4” , Ball Bearing, quick- release |
| Slide Rail | AC-R58 | 2~4U Slide Rail, Think Type, 19”~26.6” , Ball Bearing, quick- release |
| Slide Rail | AC-R59 | 4~5U Slide Rail, 26.5~36.4”, Ball-Bearing, w/ ear handle |
| Heatsink | - | Please refer Heatsink Product for more option |
