ラックマウント
CS-R42

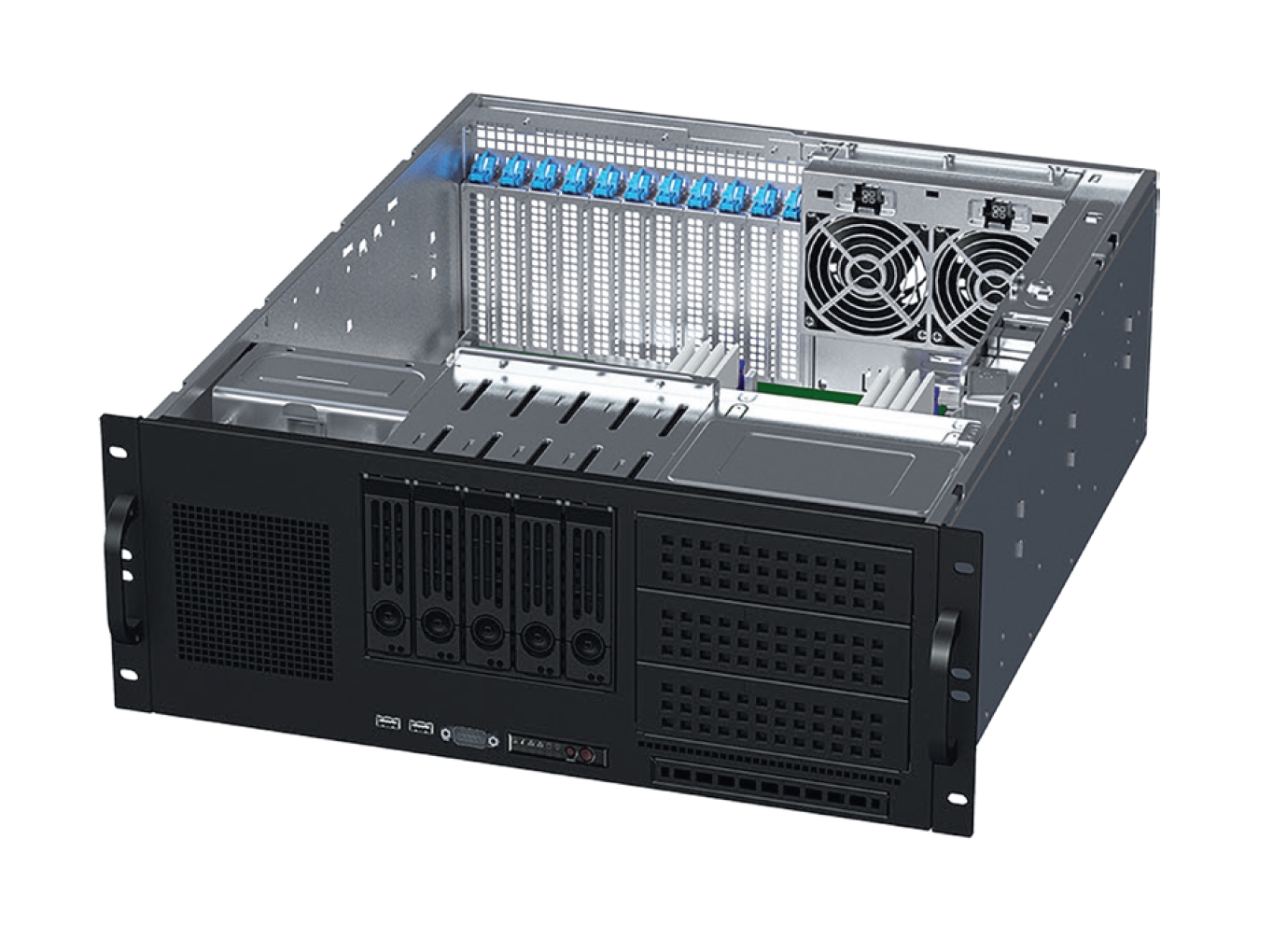

4U ラックマウントシャーシ
- E-ATXまでのマザーボードサイズをサポート
- 5 x 3.5インチ交換可能HDDトレイ
- 3 x 5.25インチ内蔵ドライブベイ
- オプションの7または11の拡張スロット
- オプションのATX PS/2または冗長PSU
| Model | CS-R42 |
| M/B Form Factor | E-ATX, ATX, Micro-ATX, Mini-ITX |

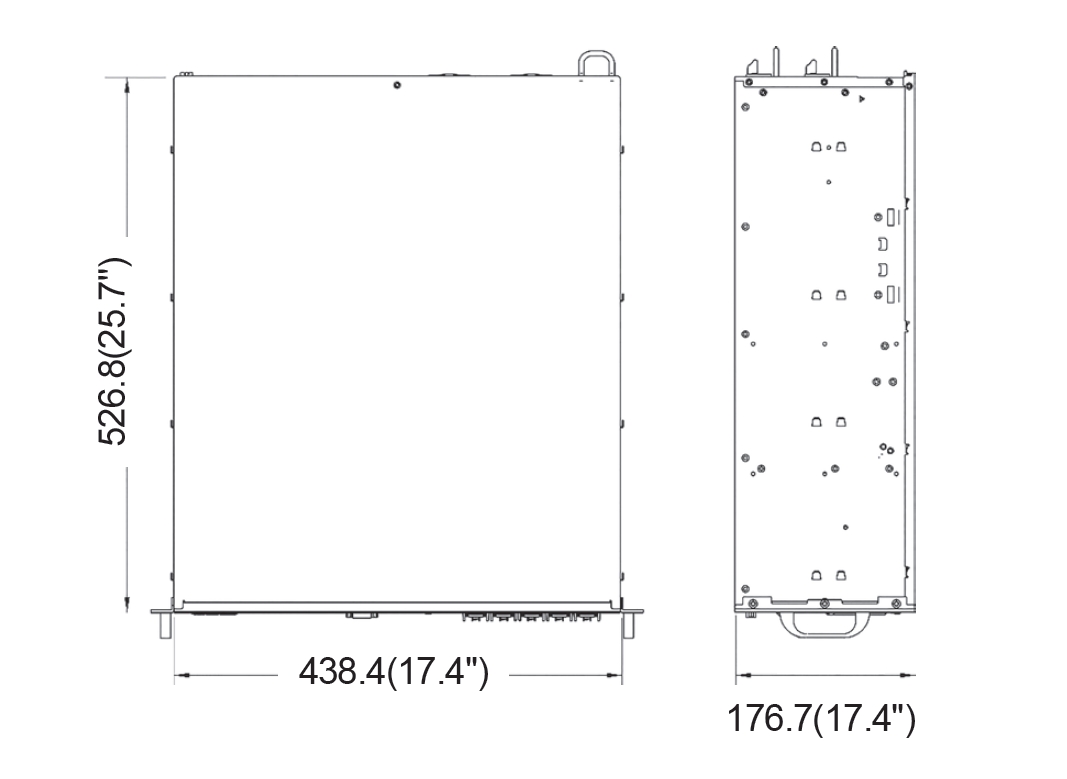

| Dimensions (W x D x H) | 438 x 527 x 177mm (17.2" x 20.8”x 7") |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 5 x 3.5” Swappable SAS/ SATA HDD Trays
3 x 5.25” Internal Drive Bays |
| Peripheral Bay | 1 x Slim ODD Bay |
| HDD Backplane | 5-port 12 Gbps SAS/ SATA to SATA |

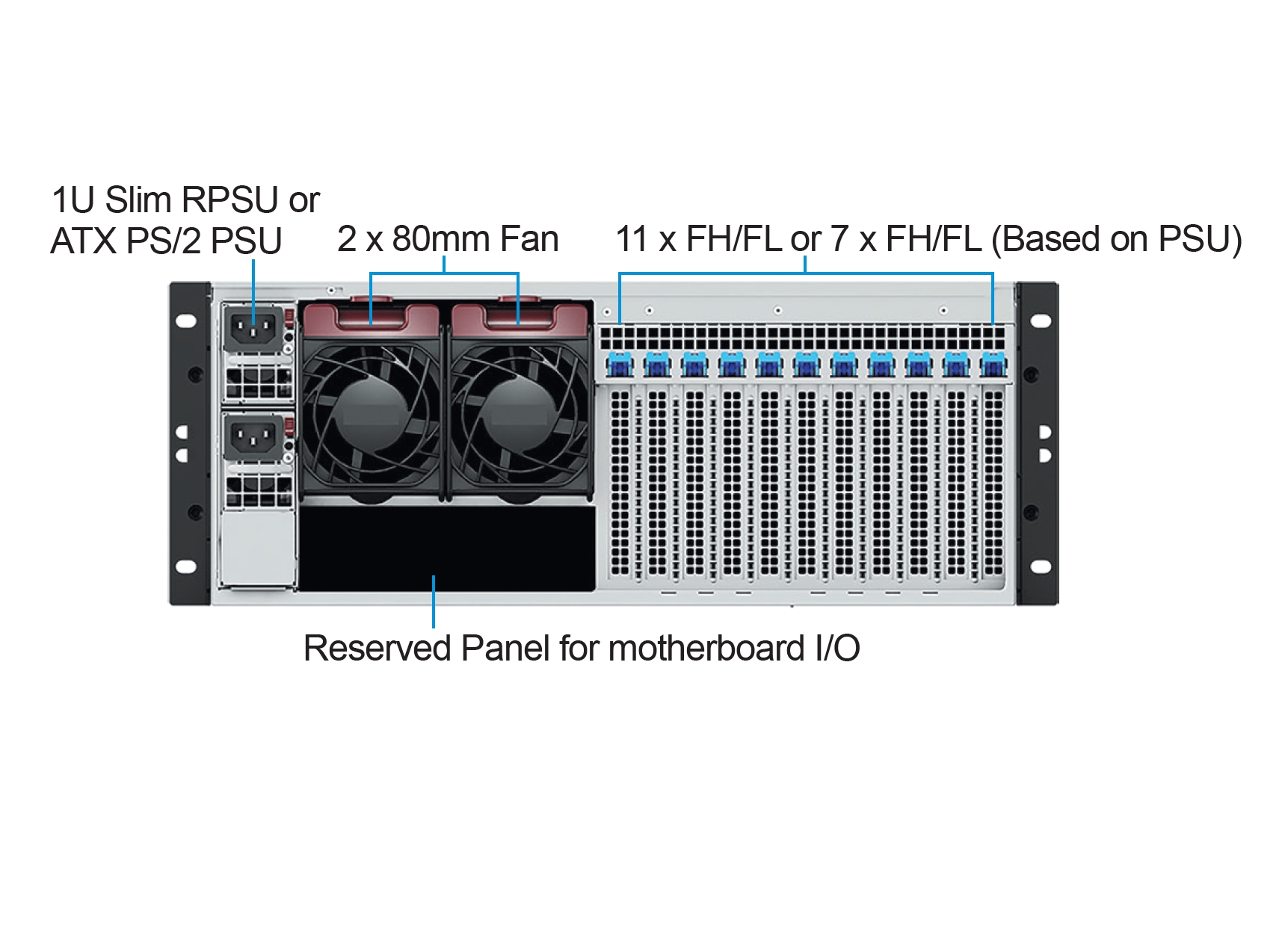

| Expansion Slot | 11 x Full-Height /Full-Length (For RPSU)
7 x Full-Height/ Full-Length (For PS/2 ATX) |
| System Cooling | 1 x 92mm PWM Fans (Front)
2 x 80mm PWM Fans (Rear) |

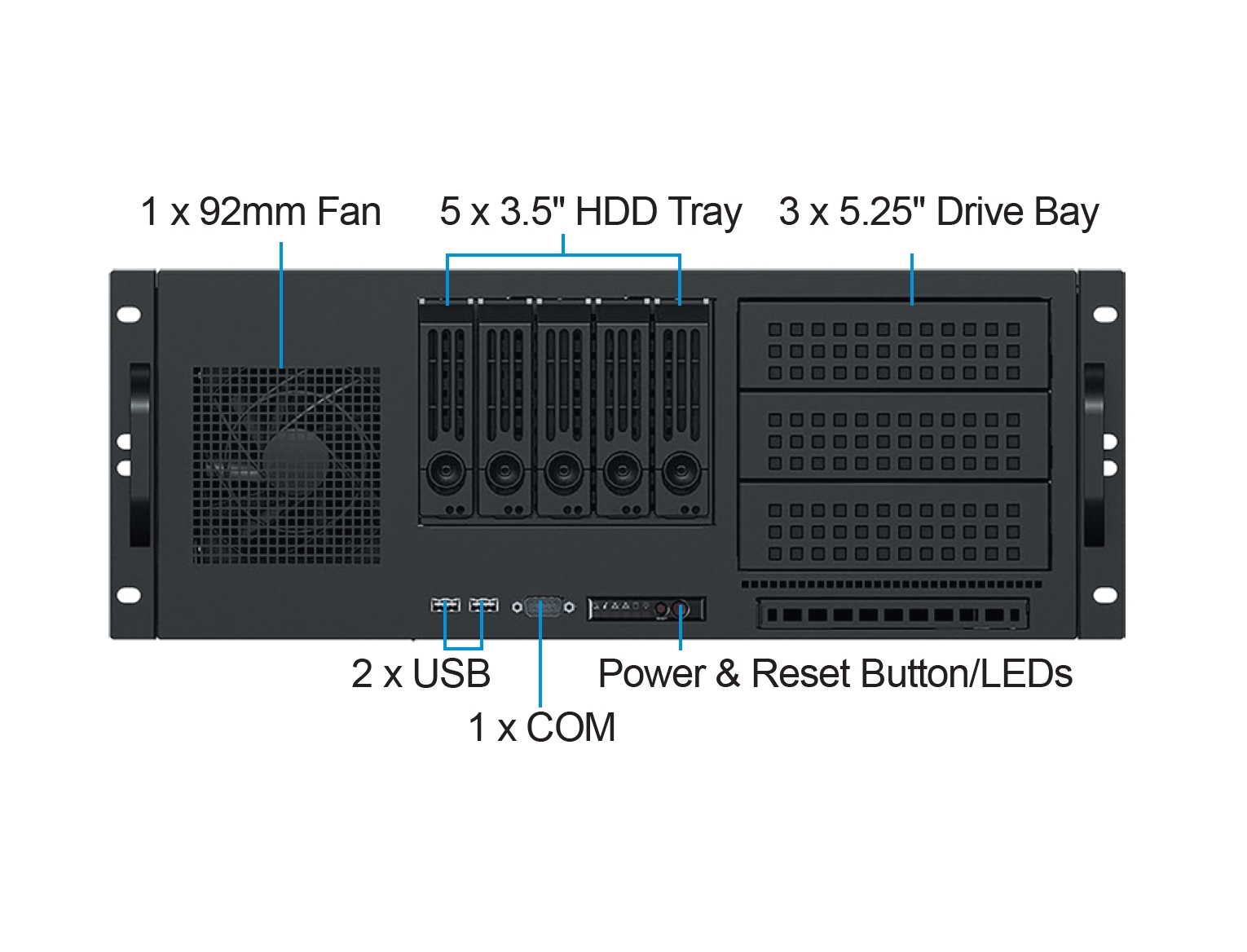

| Front Panel | Input / Output
2 x USB 2.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | 1U Redundant Power Supply: D220 x W54.5 x H40 mm, for 11 Slot SKU (Optional)
PS/2 ATX Power Supply: D185 x W150 x H86 mm, for 7 Slot SKU (Optional) |
| Environment | Operating Temperature: 5° ~ 35°C (41° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” HDD Tray with Easy Lock (Metal) |
| HDD Tray | AC-H34 | 3.5” HDD Tray with Key Lock (Metal) |
| Fan | AC-N80380 | 8038mm PWM fan, 9400RPM, 103.156CFM |
| Power Supply | AC-PR8600 | 860W 1U Redundant PSU, 80PLUS Titanium with PDB (Brand: Compuware) |
| Power Supply | AC-PS5503 | 550W PS/2 ATX PSU (Brand: Acbel) |
| Power Supply | AC-PS8501 | 850W PS/2 ATX PSU, 80PLUS Gold (Brand: Liteon) |
| Power Supply | AC-PS12K0 | 1200W PS/2 ATX PSU (Brand: Acbel) |
| Slide Rail | AC-R57 | 4U Slide Rail, Think Type, 26.5”~36.4” , Ball Bearing, Toolless |
| Slide Rail | AC-R58 | 2~ 4U Slide Rail, Think Type, 19” ~ 26. 6” , Ball Bearing, Toolless |
| Slide Rail | AC-R59 | 4~5U Slide Rail, 26.5~36.4”, Ball-Bearing, w/ Square to Round Hole Converter |
| Heatsink | - | Please Refer Heatsink/Cooler Product for More Option |
