CS-R28

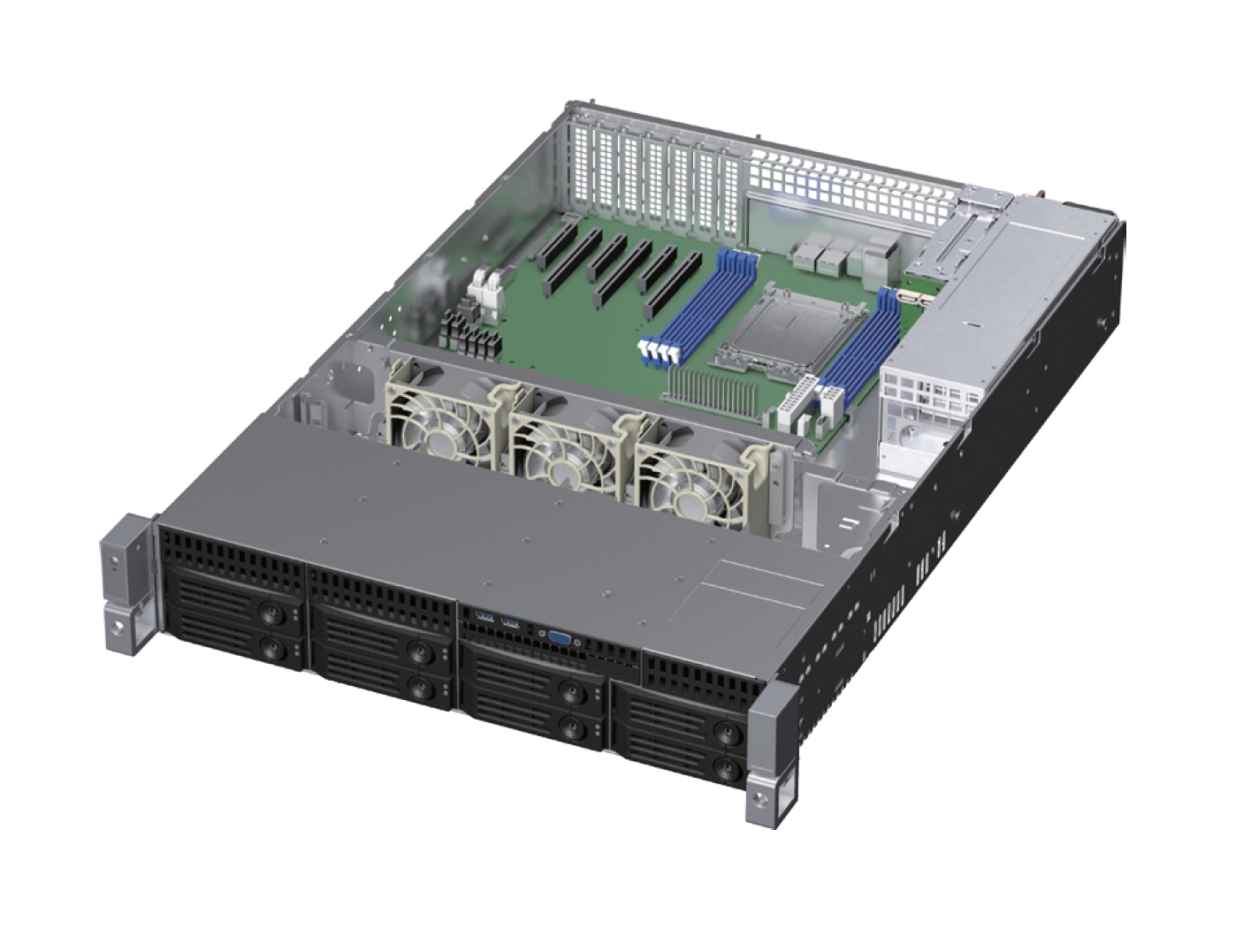

2U 8ベイ ラックマウント シャーシ

  • E-ATXまでのマザーボードサイズをサポート
  • 8 x 3.5インチ交換可能なHDDトレイ
  • 2 x 3.5インチ内蔵HDDベイ
  • 2 x 2.5 インチ交換可能 HDD トレイ (背面)
  • ロープロファイル/ハーフレングス拡張スロット x 7
  • USB 3.0 x 2
ModelCS-R28
M/B Form FactorE-ATX, Micro-ATX, Mini-ITX

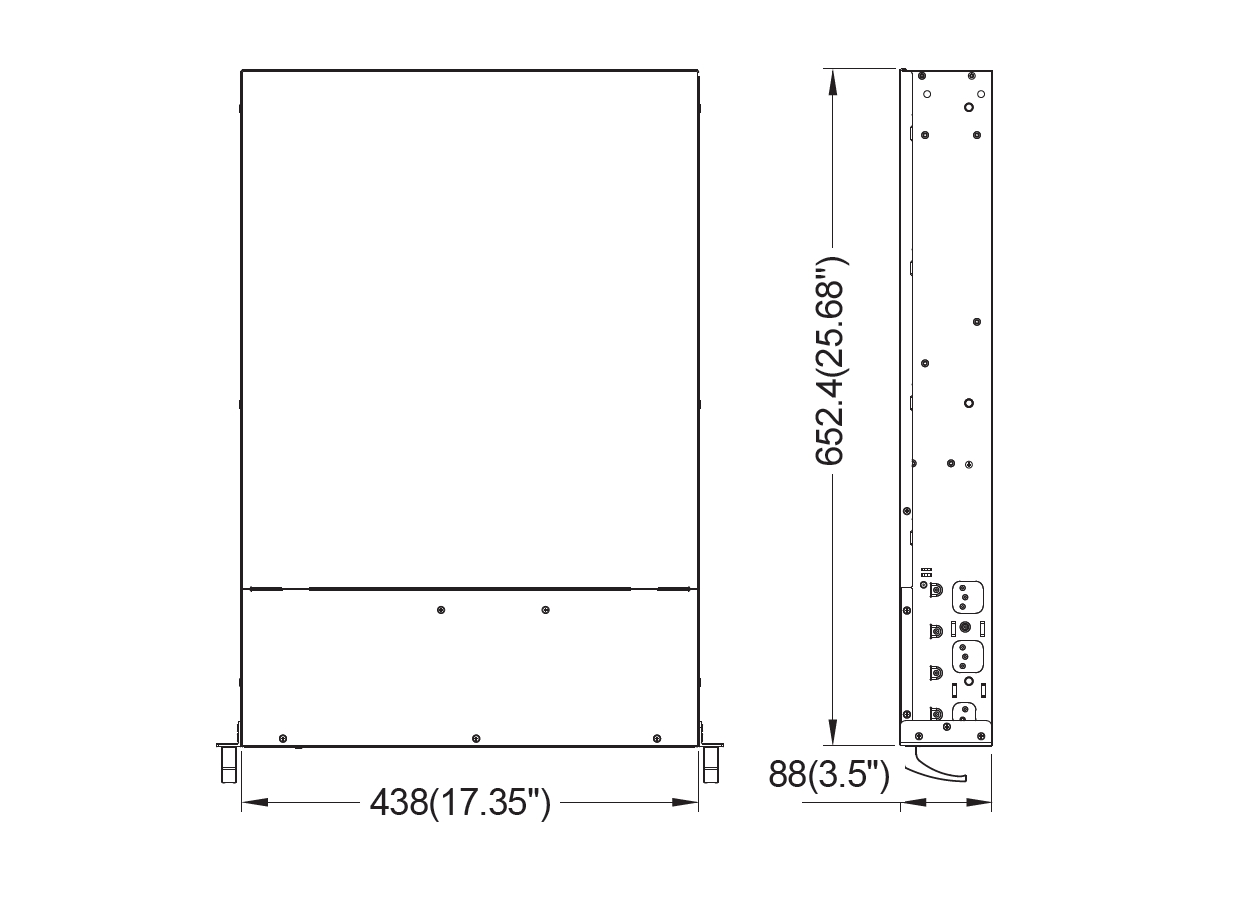

Dimensions (W x D x H)438 x 647 x 88mm (17.2” x 25.5” x 3.5”)
ColorBlack C (Front panel only)
Processor SupportDual and Single Intel® and AMD processors
Drive Bay8 x 3.5” Swappable HDD Trays
2 x 3.5” Internal HDD Bays
2 x 2.5” Swappable HDD Trays(Rear)
Peripheral Bay1 x Slim ODD (optional)
HDD Backplane8-port 6 Gbps SAS/ SATA to SAS
8-port 12Gbps SAS/ SATA to 2-port Mini-SAS HD with SGPIO(Optional)

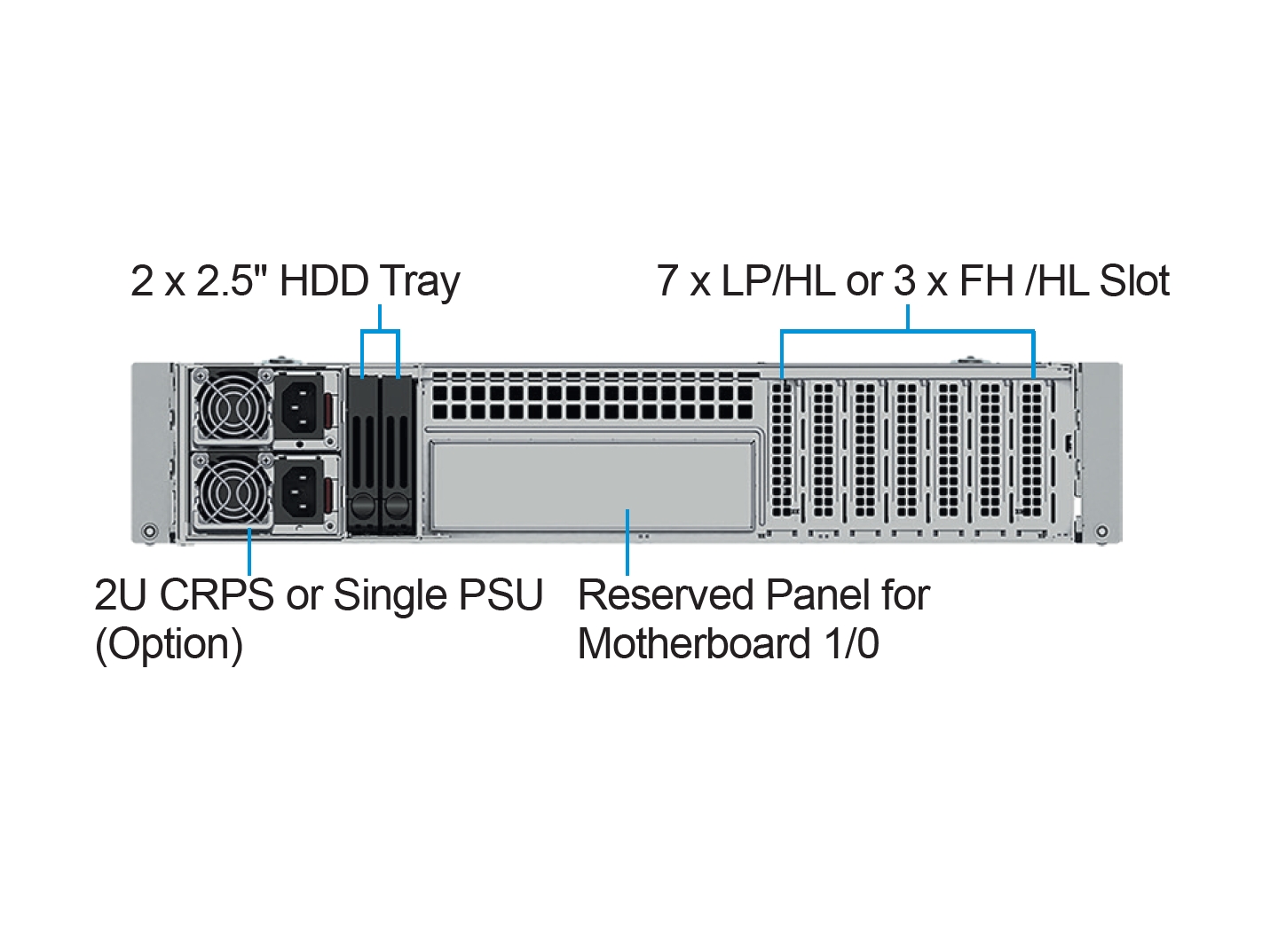

Expansion Slot7 x Low-Profile/ Full-Length
3 x Full-Height/ Full-Length (Option)
System Cooling3 x 8038mm PWM fan

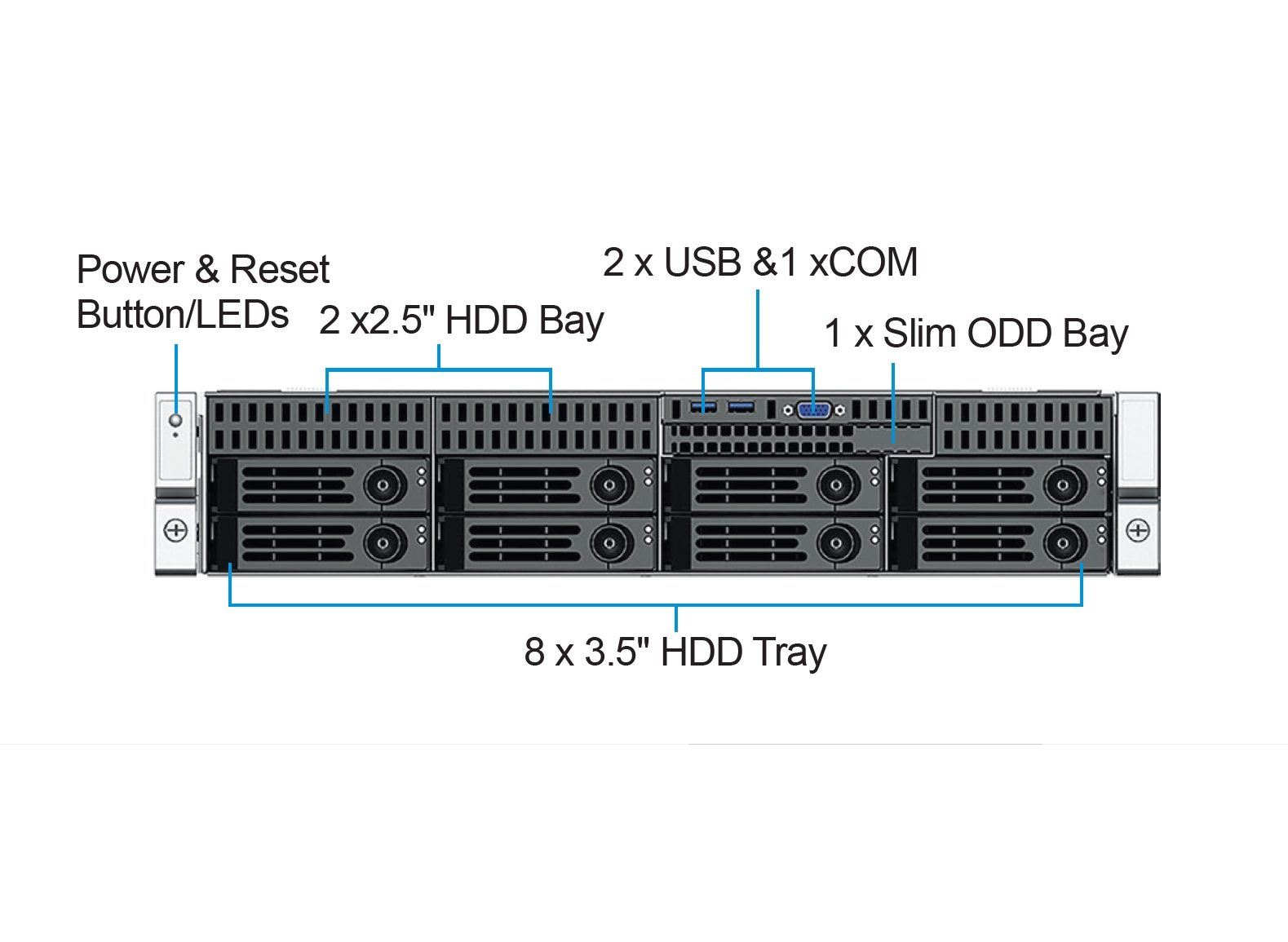

Front PanelInput / Output
2 x USB 3.0
1 x COM
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
1 x Overheat LED
1 x Power Fail LED
Physical SecureChassis intrusion switch
Power Supply2U CRPS Power Supply: D260 x W77 x H84mm (Optional)
2U Single Power Supply: D240 x W100 x H70mm (Optional)
EnvironmentOperating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 90% RH (Non-Condensing)
Storage Humidity: 5% ~ 95% RH (Non-Condensing)
CategoryModel No.Description
HDD TrayAC-H313.5” HDD Tray with Easy Lock (Plastic)
HDD TrayAC-H323.5” HDD Tray with Key Lock (Plastic)
HDD TrayAC-H333.5” to 2.5” HDD Converter Tray with Easy Lock
HDD TrayAC-H343.5” to 2.5” HDD Converter Tray with Key Lock
HDD TrayAC-H2002.5” HDD Tray with Easy Lock
HDD TrayAC-H2012.5” Tool-less HDD Tray
BracketAC-K2003.5” to 2.5” HDD Tray Bracket
BackplaneAC-B2318-port 6Gbps SAS/SATA to SATA with SGPIO
BackplaneAC-B2328-port 6Gbps SAS/SATA to SATA
BackplaneAC-B2388-port 12Gbps SAS/SATA to Mini-SAS HD with SGPIO
Power SupplyAC-PR5500550W 2U CRPS PSU, 80PLUS Gold (Brand: Acbel)
Power SupplyAC-PR6500650W 2U Redundant PSU, 80PLUS Gold (Brand: Acbel)
Power SupplyAC-PR1K201200W 2U CRPS PSU, with PDB & BKT (Brand: Acbel)
Power SupplyAC-PS5501550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
Power SupplyAC-PS5500550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
Power SupplyAC-PS6500650W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
Power SupplyAC-PR8000800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel )
Slide RailAC-R502U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless
Slide RailAC-R552U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless
Slide RailAC-R532U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square to Round Hole converter
Heatsink-Please Refer Heatsink Product List for More Option
