ラックマウント

CS-R25

2U 8ベイ ラックマウント シャーシ

  • 2U ラックマウント 21 インチ奥行きシャーシ
  • ATXまでのマザーボードサイズをサポート
  • 8 x 3.5インチ交換可能なHDDトレイ
  • 2 x 3.5インチ内蔵HDDベイ
  • 7 x ロープロファイル/フルレングスまたは
  • フルハイト/フルレングス拡張スロット x 3
  • 最大 4 x 8025mm PWM ファン
ModelCS-R25
M/B Form FactorATX, Micro-ATX, Mini-ITX

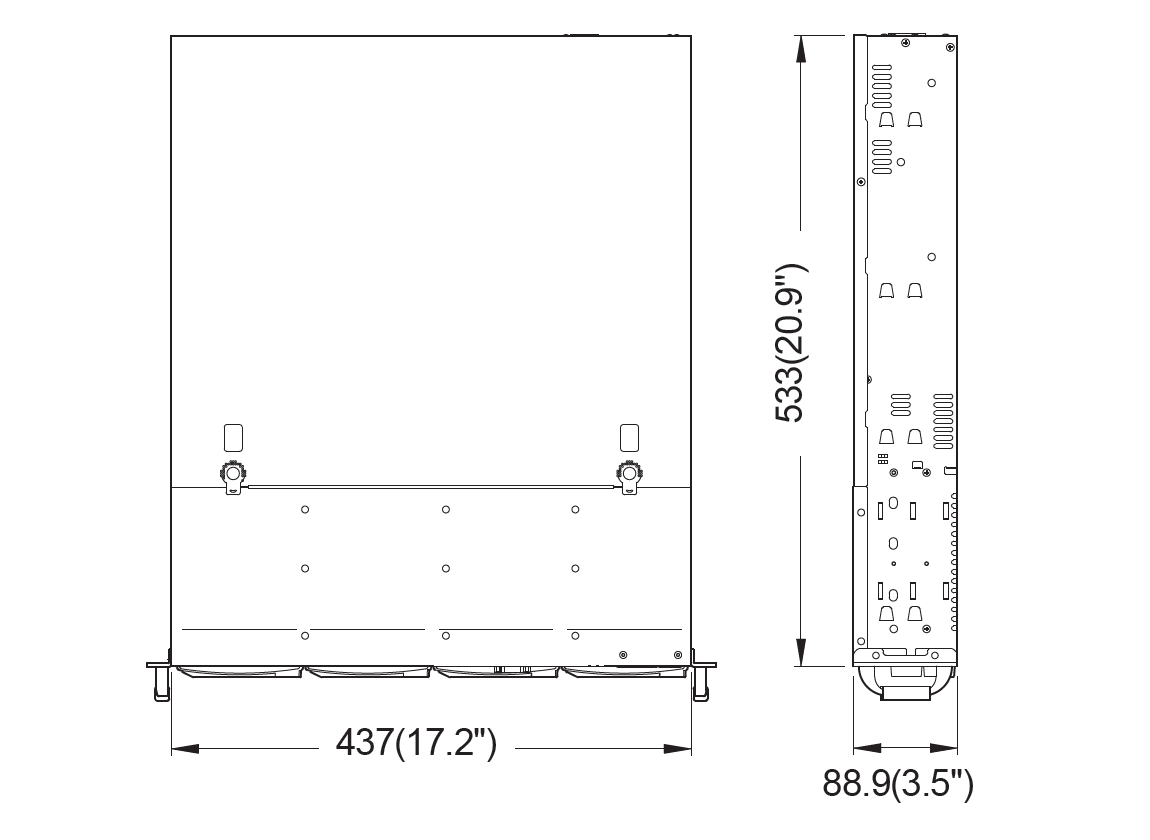

Dimensions (W x D x H)437mm x 533mm x 89mm (17.2” x 21” x 3.5”)
ColorBlack C (Front panel only)
Processor SupportDual and Single Intel® and AMD processors
Drive Bay8 x 3.5” swappable HDD Trays
2 x 3.5" internal HDD Bays
Peripheral Bay1 x Slim ODD Bay
HDD Backplane8-port 6 Gbps SAS/ SATA to SAS
8-port 12Gbps SAS/ SATA to 2-port MiniSAS-HD with SGPIO (Optional)

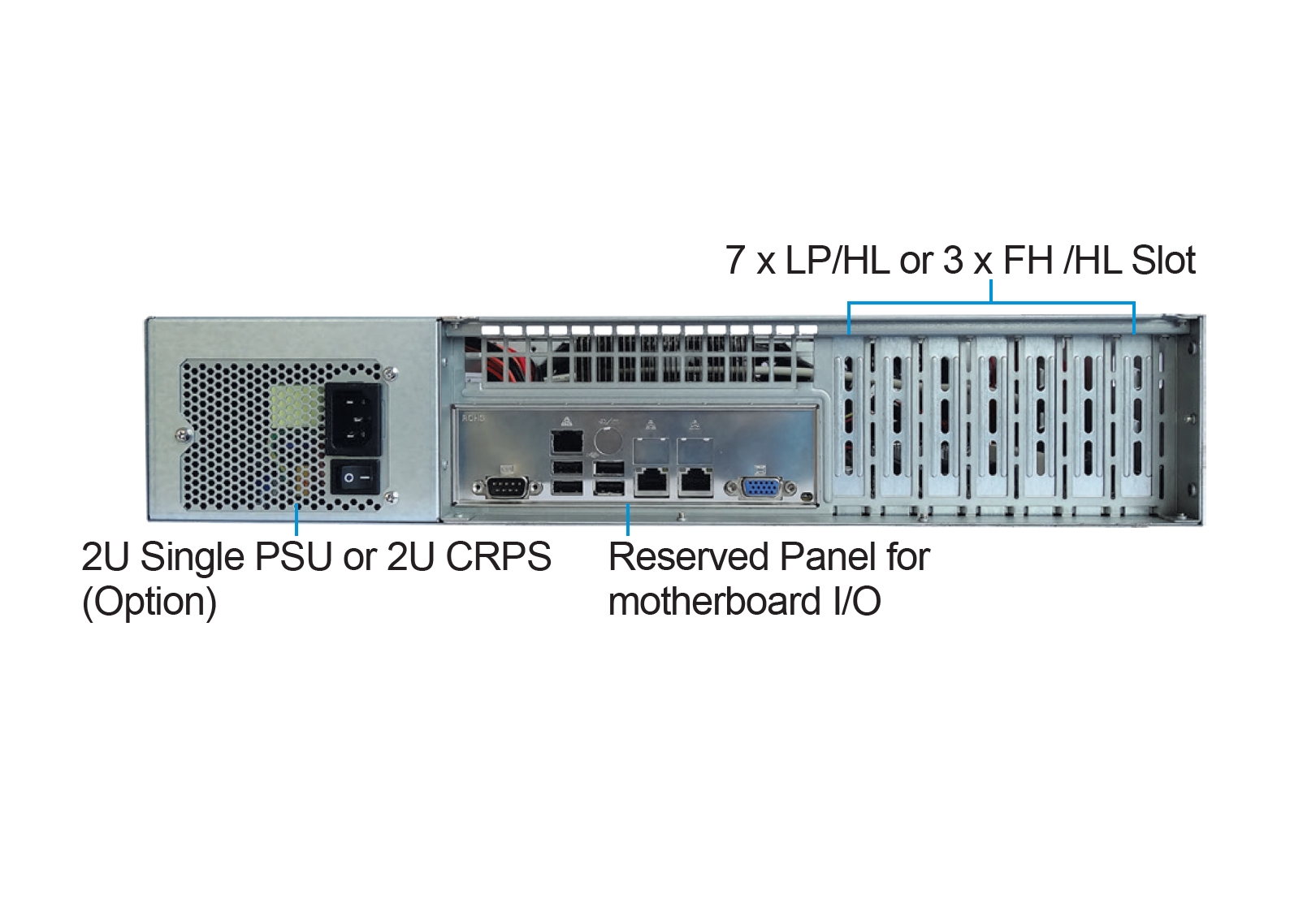

Expansion Slot7 x Low-Profile/ Half-Length
3 x Full-High/ Full-Length (Optional)

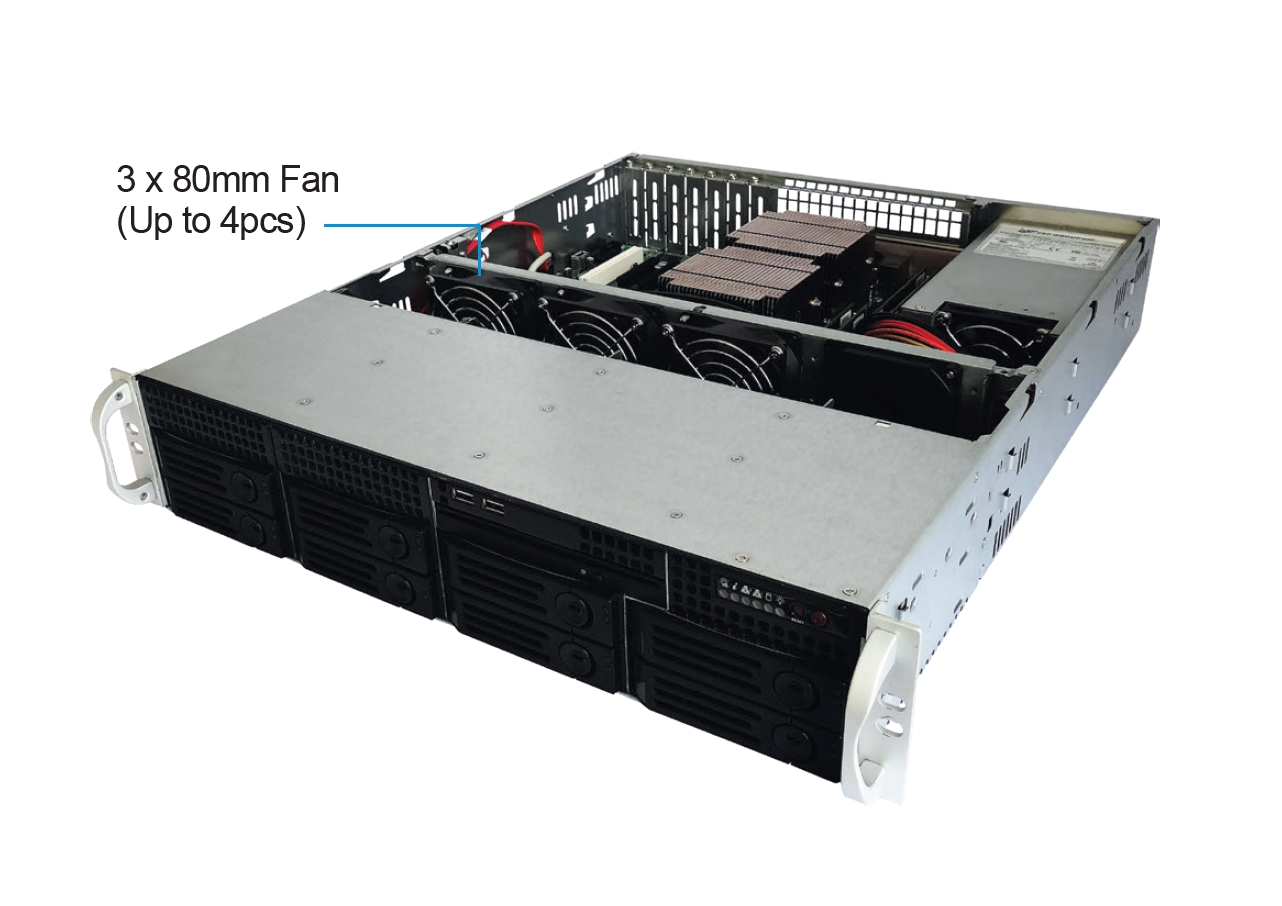

System CoolingUp to 4 x 8025mm PWM fan (Default 3pcs)

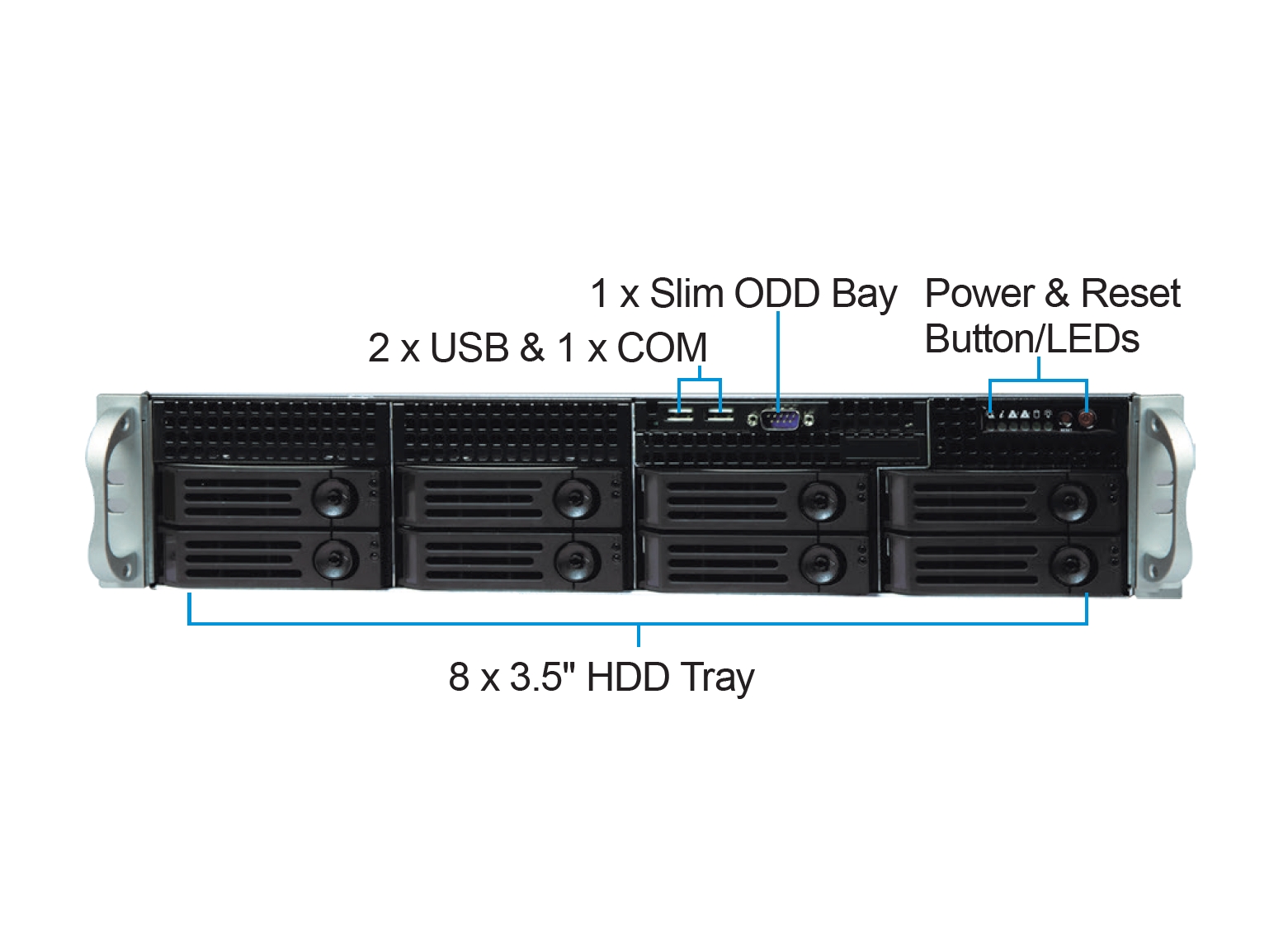

Front PanelInput / Output
2 x USB 2.0
1 x COM
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network Activity LEDs
1 x Overheat LED
1 x Power Fail LED
Physical SecureChassis intrusion switch
Power Supply2U CRPS Power Supply: D265 x W77 x H84mm (Optional)
2U Single Power Supply: D240 x W100 x H70mm (Optional)
EnvironmentOperating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 90% RH (Non-condensing)
Storage Humidity: 5% ~ 95% RH (Non-condensing)
CategoryModel No.Description
HDD TrayAC-H313.5” HDD Tray with Easy Lock (Plastic)
HDD TrayAC-H323.5” HDD Tray with Key Lock (Plastic)
HDD TrayAC-H333.5” to 2.5” HDD Converter Tray with Easy Lock
HDD TrayAC-H343.5” to 2.5” HDD Converter Tray with Key Lock
BracketAC-K2003.5” to 2.5” HDD Tray Bracket
BezelAC-F2002U Plastic Front Bezel with Key Lock, Black
BackplaneAC-B2328-port 6Gbps SAS/SATA to SATA
BackplaneAC-B2388-port 12Gbps SAS/SATA to Mini-SAS HD with SGPIO
PSUAC-PR5500550W 2U CRPS PSU, 80PLUS Gold (Brand: Acbel)
PSUAC-PR8000800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel)
PSUAC-PR1K201200W 2U CRPS PSU with PDB & BKT (Brand: Acbel)
PSUAC-PR6500650W 2U Redundant PSU, 80PLUS Gold (Brand: Acbel)
PSUAC-PS5501550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
PSUAC-PS5500550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
PSUAC-PS6500650W 2U Single PSU, 80PUS Bronze (Brand: Acbel)
Slide RailAC-R502U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless
Slide RailAC-R552U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless
Slide RailAC-R532U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square to Round Hole converter
Heatsink-Please Refer Heatsink Product List For More Option
