ラックマウント
CS-R24
2U 24ベイ ラックマウント シャーシ
- E-ATXまでのマザーボードサイズをサポート
- 24 x 2.5インチ交換可能なHDDトレイ

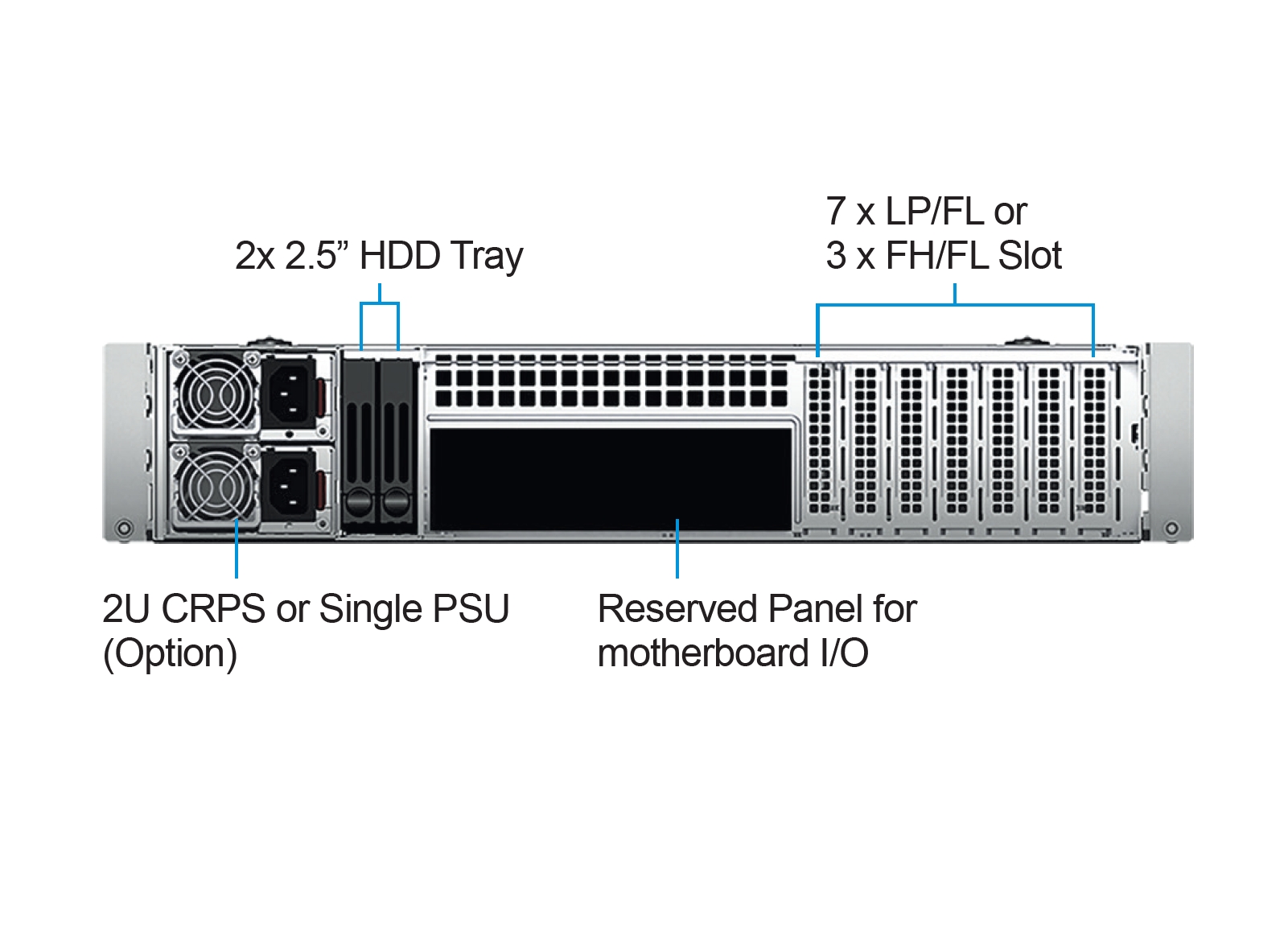

- 2.5インチ交換可能HDDトレイ×2
- ロープロファイル/フルレングス x 7 またはフルハイト/フルレングス拡張スロット x 3
- USB 3.0 x 2
- 2U CRPS電源に対応
| Model | CS-R24 |
| M/B Form Factor | E-ATX, ATX, Micro-ATX, Mini-ITX |

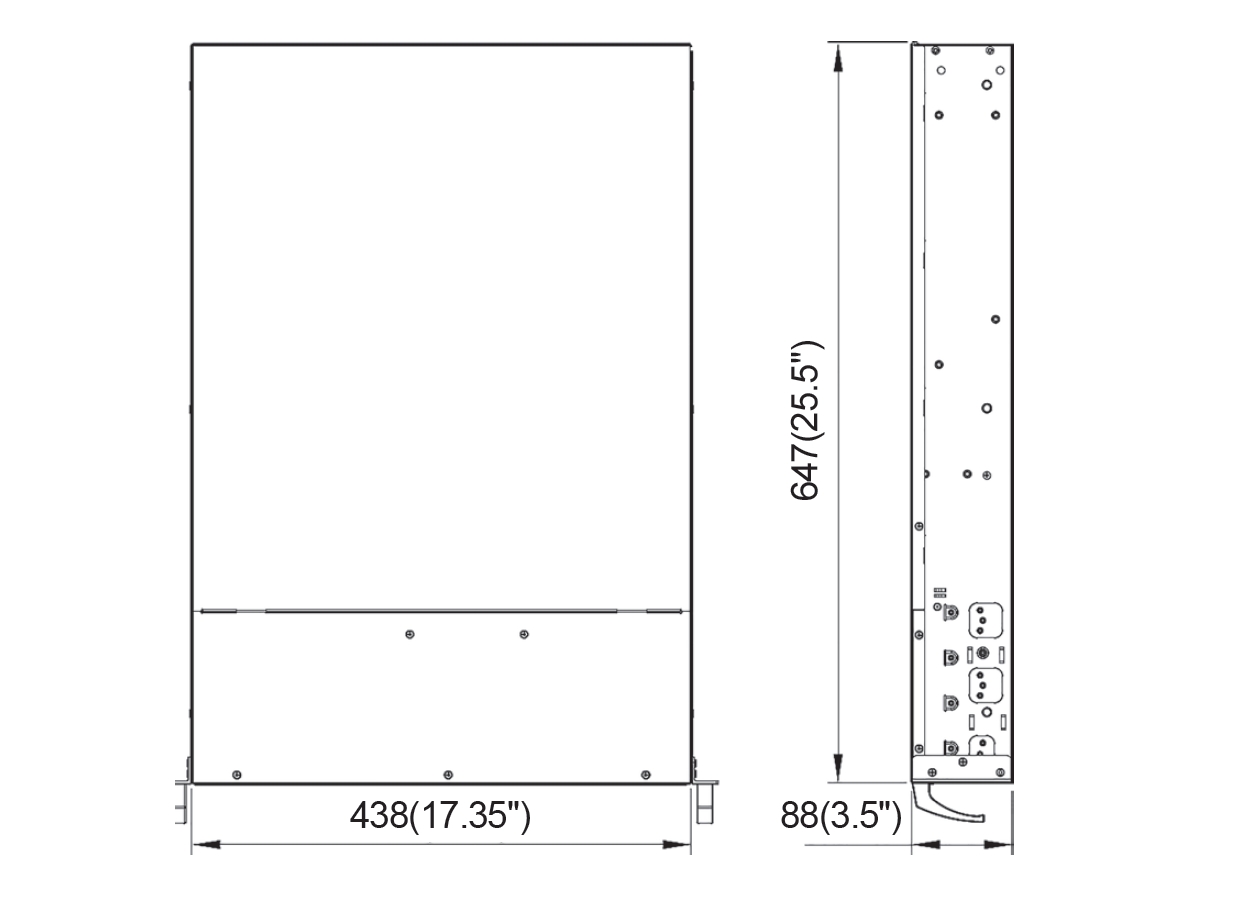

| Dimensions (W x D x H) | 438 x 647 x 88mm (17.2”x25.5”x3.5”) |
| Color | Black (Front panel only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 24 x 2.5” Swappable Tool-less HDD Trays
2 x 2.5” Swappable HDD Trays (Rear) |
| Peripheral Bay | N/A |
| HDD Backplane | 24-port 24Gbps SAS/ SATA/ NVMe to / Slim SAS with SGPIO |
| Expansion Slot | 7 x Low-Profile/ Half-Length
3 x Full-height/ Half-length (Optional) |

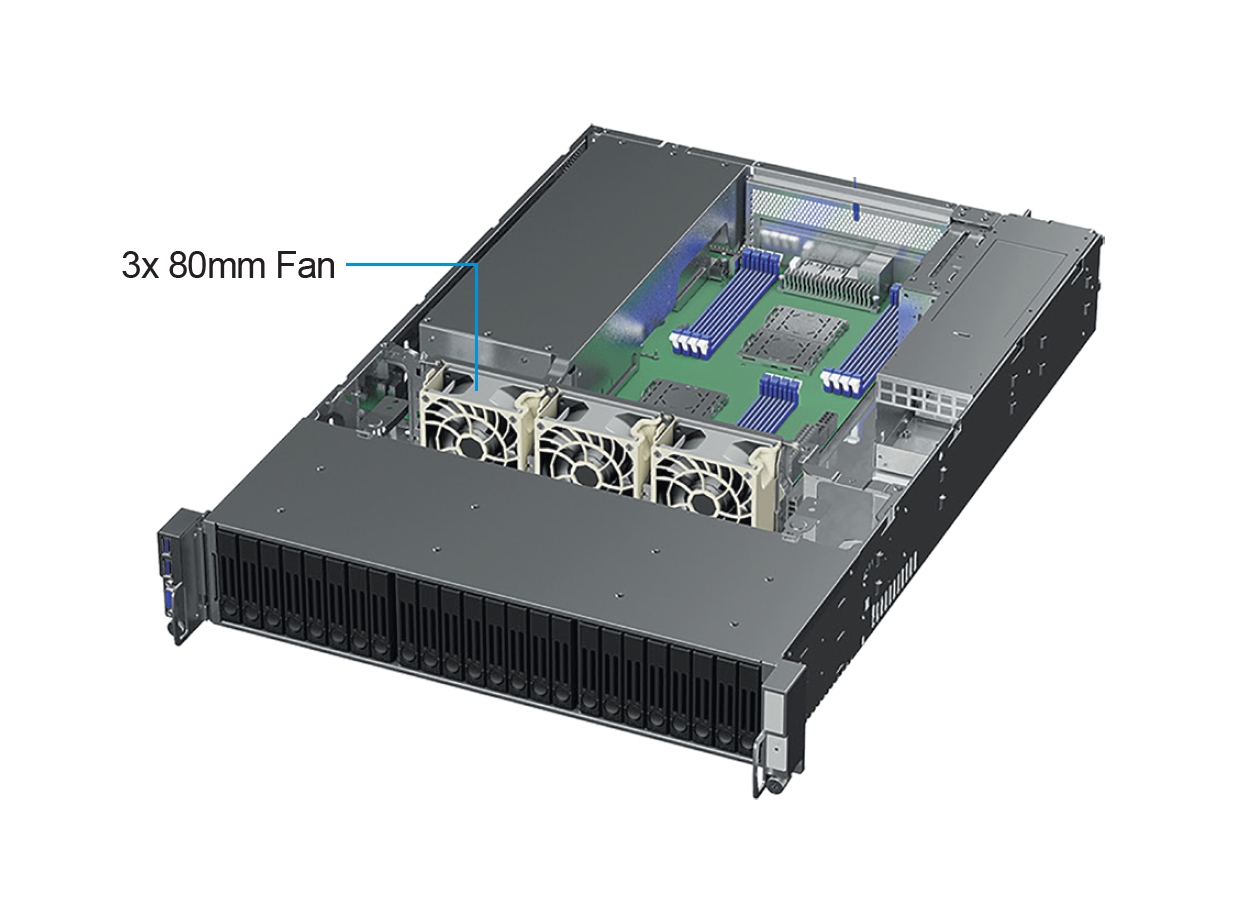

| System Cooling | 3 x 8038mm PWM Fan |
| Front Panel | Input / Output
2 x USB 3.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | 2U CRPS Power Supply: D260 x W77 x H84mm (Optional)
2U Single Power Supply: D240 x W100 x H70mm (Optional) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 85% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| Backplane | AC-B220 | 24-port 12Gbps to 4-port Mini-SAS HD, Single-Expander, 20- port SAS/SATA, 4-port NVMe/SAS/SATA |
| HDD Tray | AC-H200 | 2.5” HDD Tray with Easy Lock |
| HDD Tray | AC-H201 | 2.5” Tool-less HDD Tray |
| PSU | AC-PR5500 | 550W 2U CRPS PSU, 80PLUS Gold (Brand: Acbel) |
| PSU | AC-PR8000 | 800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel ) |
| PSU | AC-PR1K20 | 1200W 2U CRPS PSU, with PDB & BKT (Brand: Acbel) |
| PSU | AC-PR6500 | 650W 2U Redundant PSU, 80PLUS Gold (Brand: Acbel) |
| PSU | AC-PS5501 | 550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| PSU | AC-PS5500 | 550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| PSU | AC-PS6500 | 650W 2U Single PSU, 80PLUS Bronze (Brand: Acbel) |
| Slide Rail | AC-R50 | 2U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless |
| Slide Rail | AC-R55 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless |
| Slide Rail | AC-R53 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square To Round Hole Converter |
| Heatsink | - | Please Refer Heatsink Product List For More Option |
