ラックマウント
CS-R23
2U 12ベイ ラックマウント シャーシ
- E-ATXおよび15.2インチx13.2インチの専用マザーボードまでサポート

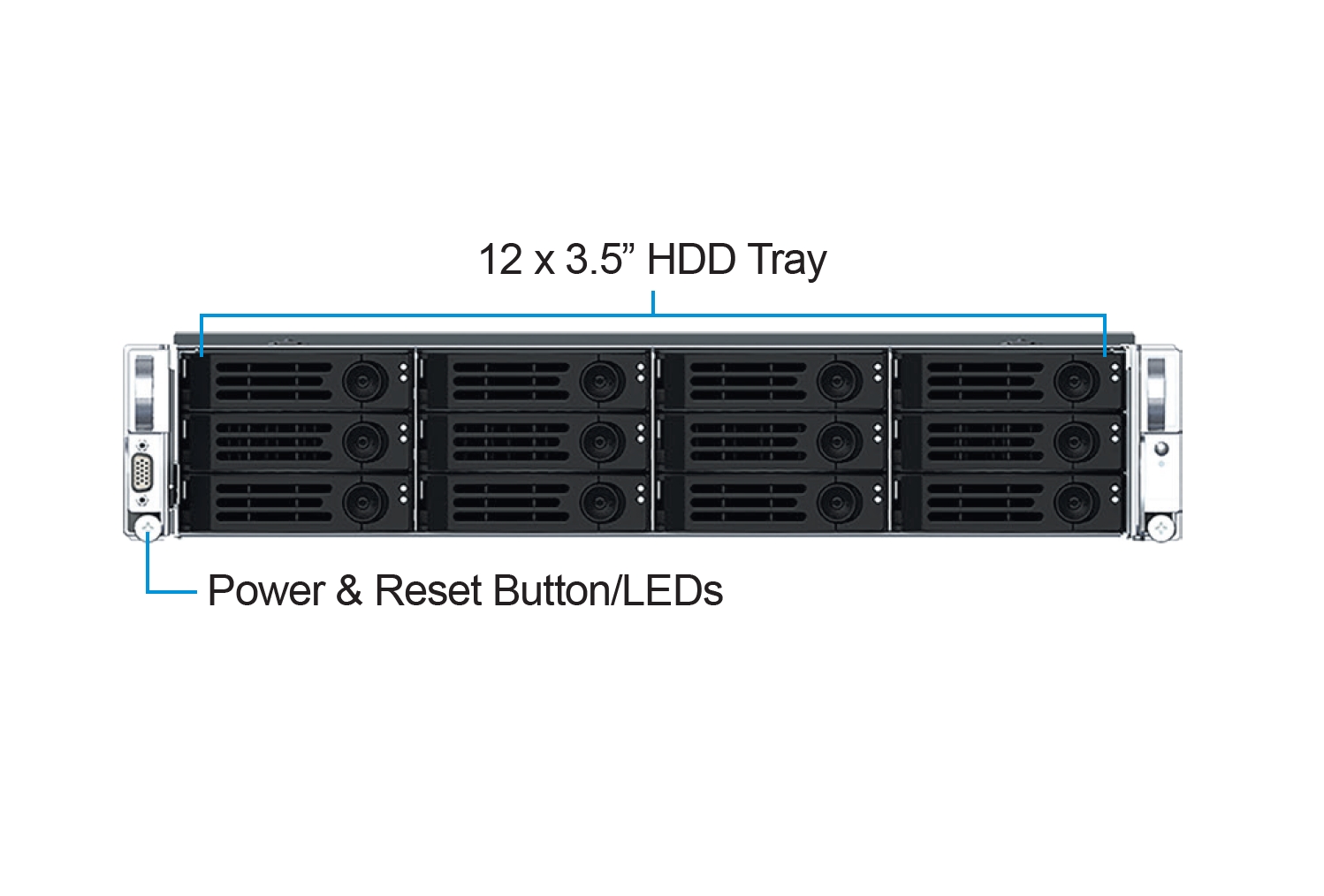

- 12 x 3.5 インチ交換可能 HDD トレイ (前面)

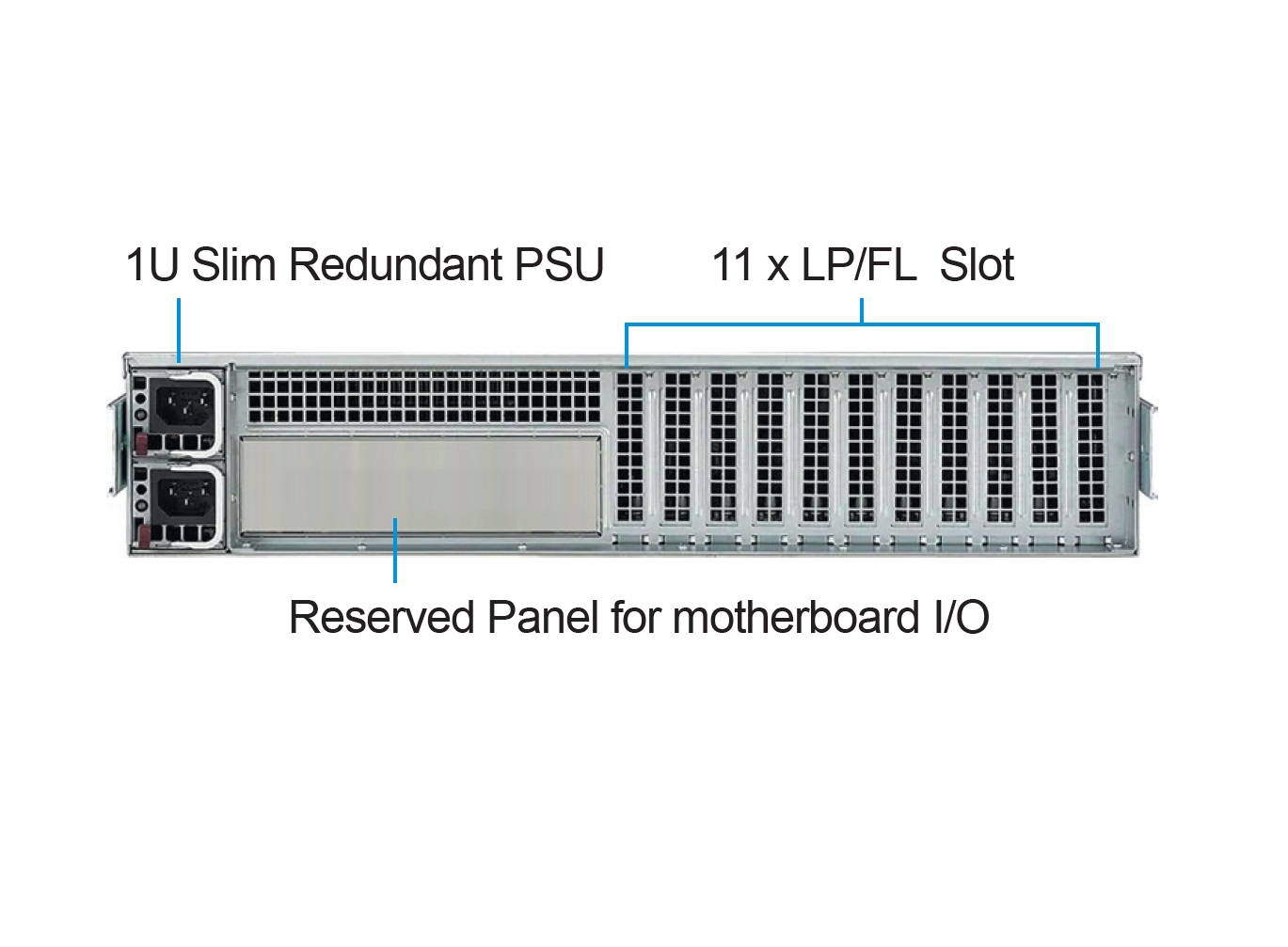

- ロープロファイル/フルレングス拡張スロット x 11
| Model | CS-R23 |
| M/B Form Factor | Proprietary 15.2" x 13.2", E-ATX, ATX, Micro-ATX, Mini-ITX" |

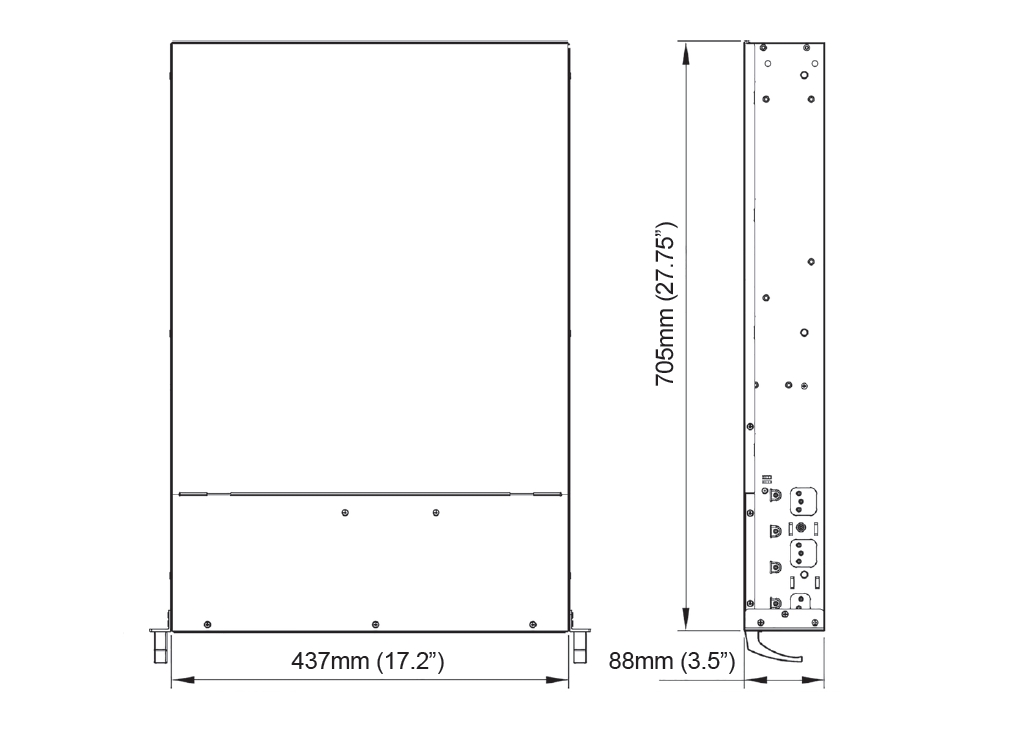

| Dimensions (W x D x H) | 437 x 705 x 89mm (17.2” x 27.75” x 3.5”) |
| Color | Black C (Front Panel Only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 12 x 3.5 Swappable HDD Trays |
| Peripheral Bay | N/A |
| HDD Backplane | 12-port 12Gbps SAS/ SATA to 3-port Mini-SAS HD with SGPIO |
| Expansion Slot | 11 x Low-Profile /Full-Length |
| System Cooling | 4 x 80mm PWM Fan |
| Front Panel | Button
1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion Switch |
| Power Supply | 1U Slim RPSU: D360 x W38 x H40 mm (Optional) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” to 2.5” HDD Converter Tray with Easy Lock |
| HDD Tray | AC-H34 | 3.5” to 2.5” HDD Converter Tray with Key Lock |
| Backplane | AC-B237 | 12-port 12Gbps SAS/SATA to 3-port Mini-SAS HD with SGPIO |
| Bezel | AC-F201 | 2U Plastic Front Bezel with Key Lock, Black |
| Bracket | AC-K200 | 3.5” to 2.5” HDD Tray Bracket |
| Power Supply | AC-PR1K00 | 1000W 1U Slim Redundant PSU, 80 Plus Titanium (Brand: Compuware) |
| Slide Rail | AC-R53 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square to Round Hole coverter |
| Slide Rail | AC-R55 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless |
| Heatsink | - | Please Refer Heatsink Product for More Option |
