CS-R21

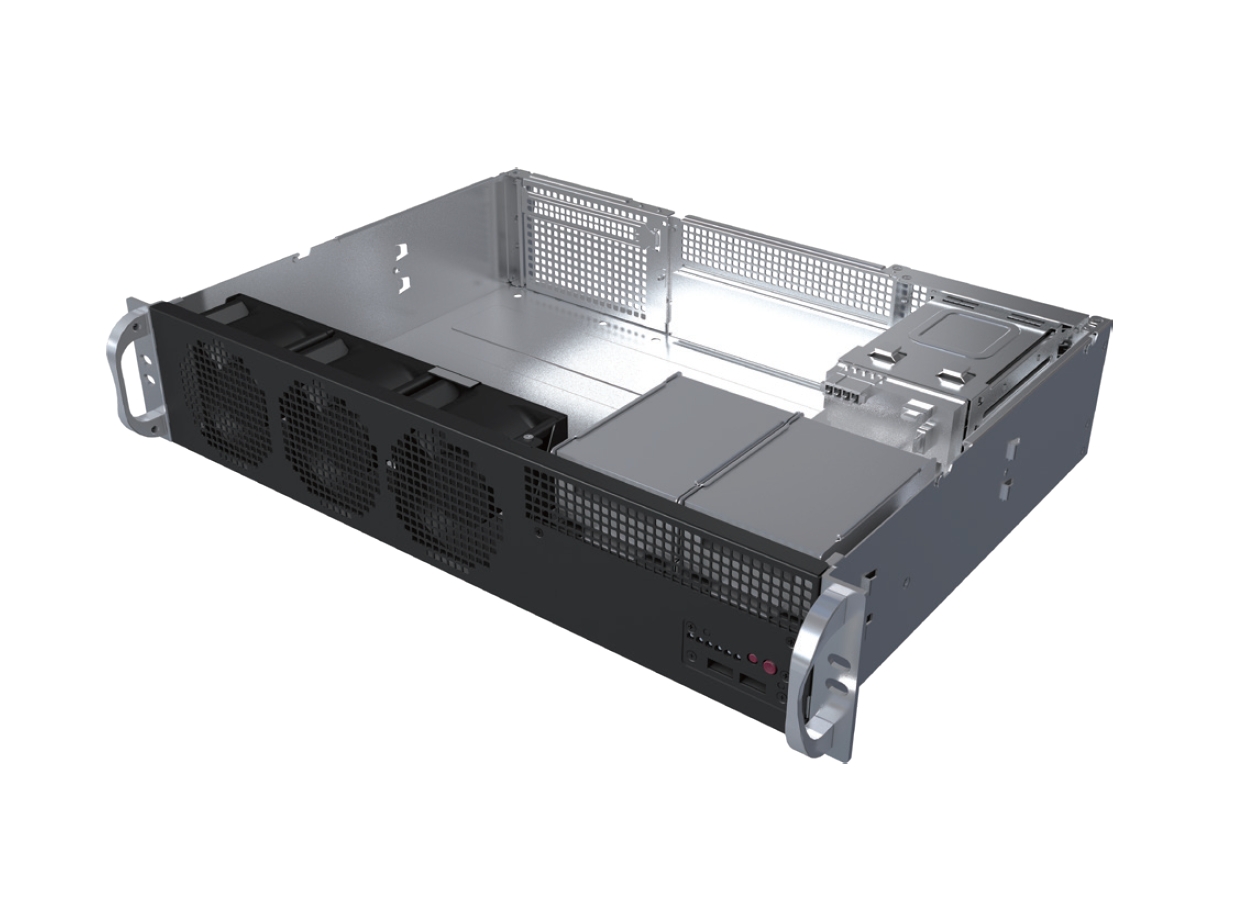

2U ラックマウントシャーシ

    • 奥行き13インチのコンパクトなデザイン
    • ATXまでのマザーボードサイズをサポート
    • 2 x 2.5 インチ交換可能 HDD トレイ (背面)



      SKU1:2 x (4 x 2.5インチ) モバイルラック</



    SKU2:2.5インチ内蔵/交換可能なHDDトレイ4個 ロープロファイル/ハーフレングス x 7 またはフルハイト/ハーフレングス拡張スロット x 3
ModelCS-R21
M/B Form FactorATX, Micro-ATX, Mini-ITX

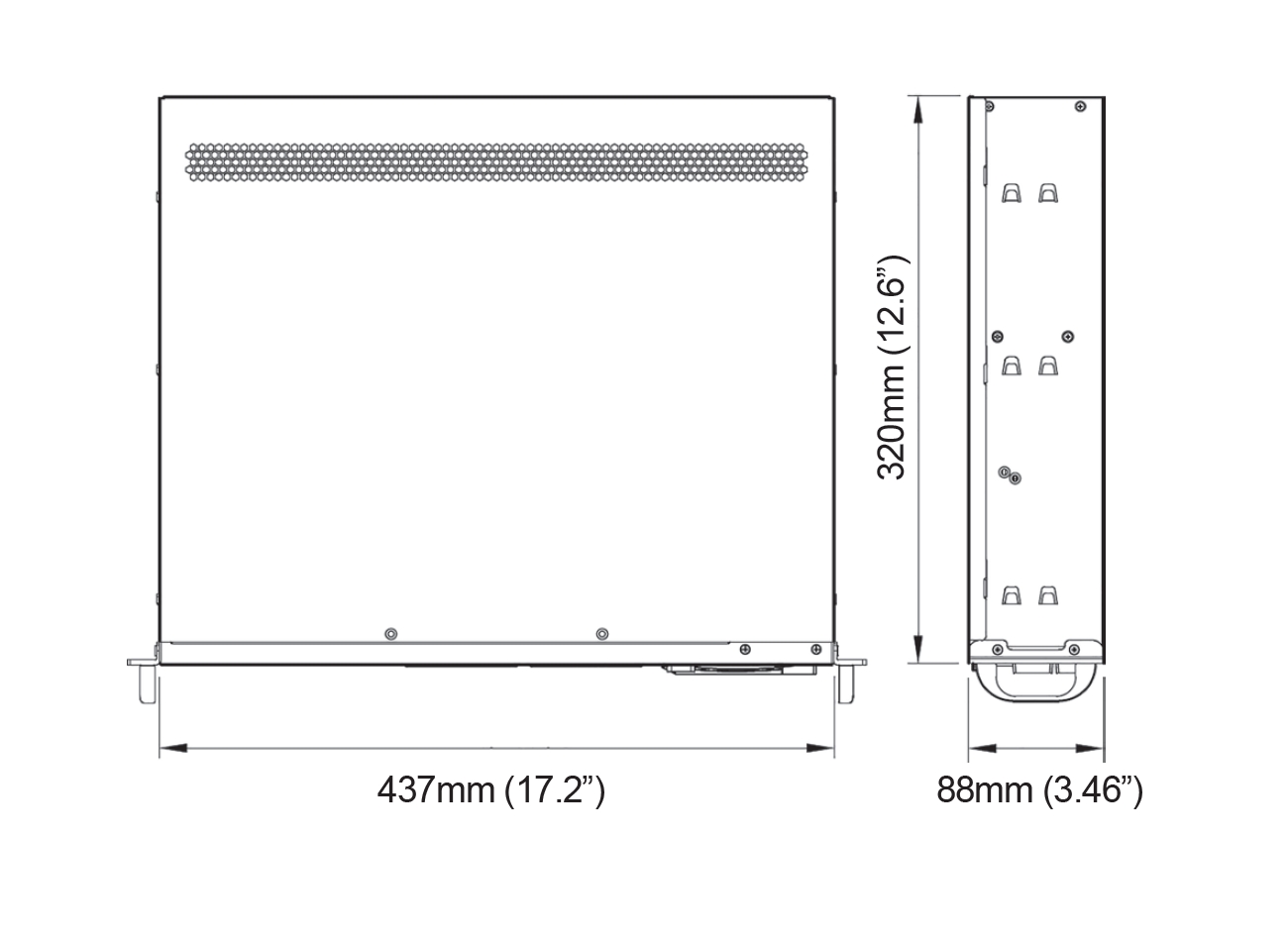

Dimensions (W x D x H)437 x 320 x 88mm (17.2” x 12.6” x 3.46”)
ColorBlack C (Front Panel Only)
Processor SupportDual and Single Intel® and AMD processors

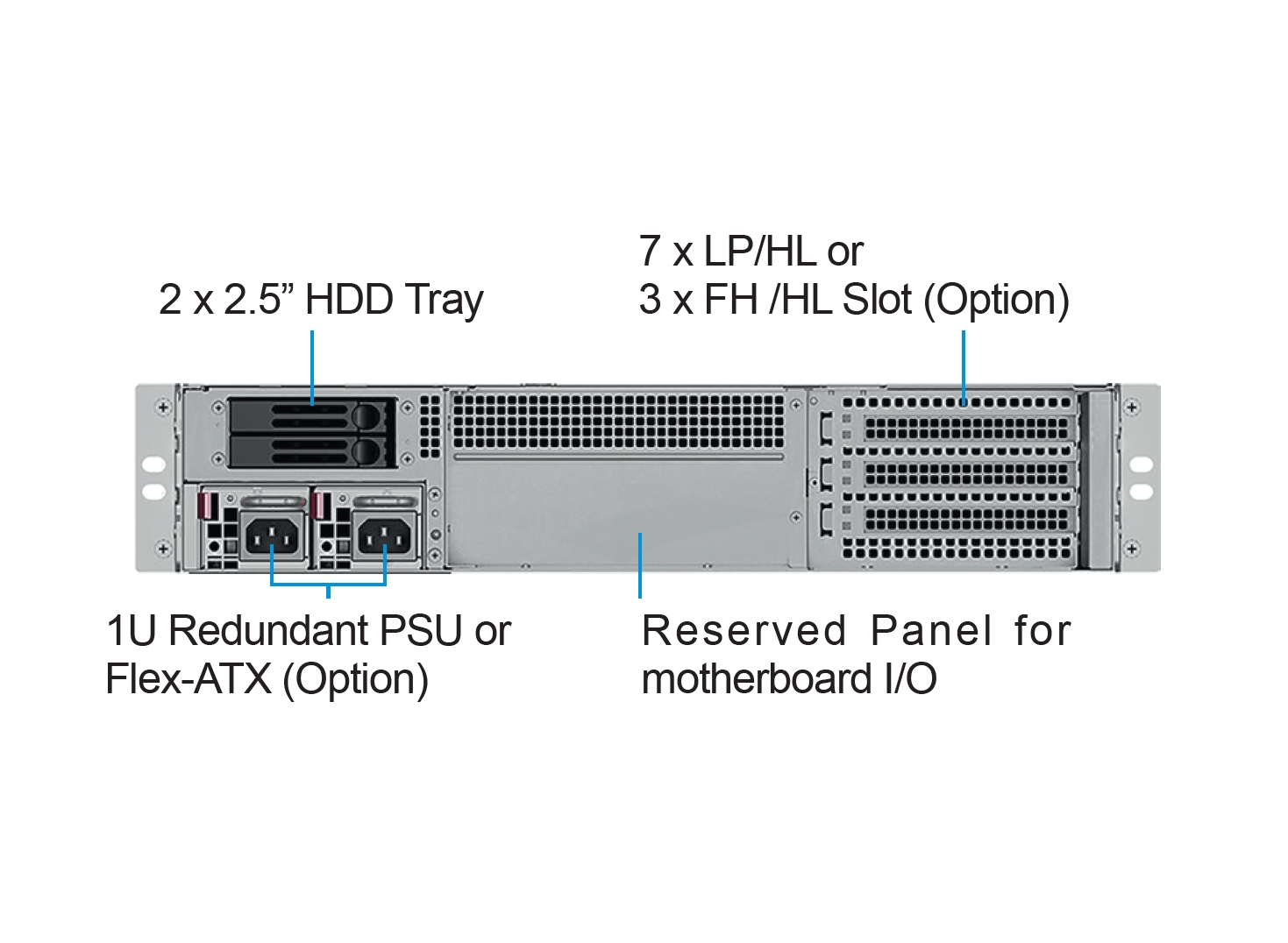

Drive Bay2 x 2.5” Swappable HDD Trays (Rear)
SKU1:2 x (4 x 2.5”) Mobile Rack
SKU2:4 x 2.5” Internal/ Swappable HDD Trays
Peripheral BayN/A
HDD BackplaneRear 2.5”: 2-port 6 Gbps SAS/ SATA to SAS/ SATA with SGPIO
4 x 2.5” mobile rack :4-port 12 Gbps SATA3 to SAS/ SATA
Expansion Slot7 x Low-Profile/ Half-Length
3 x Full-Height/ Half-Length

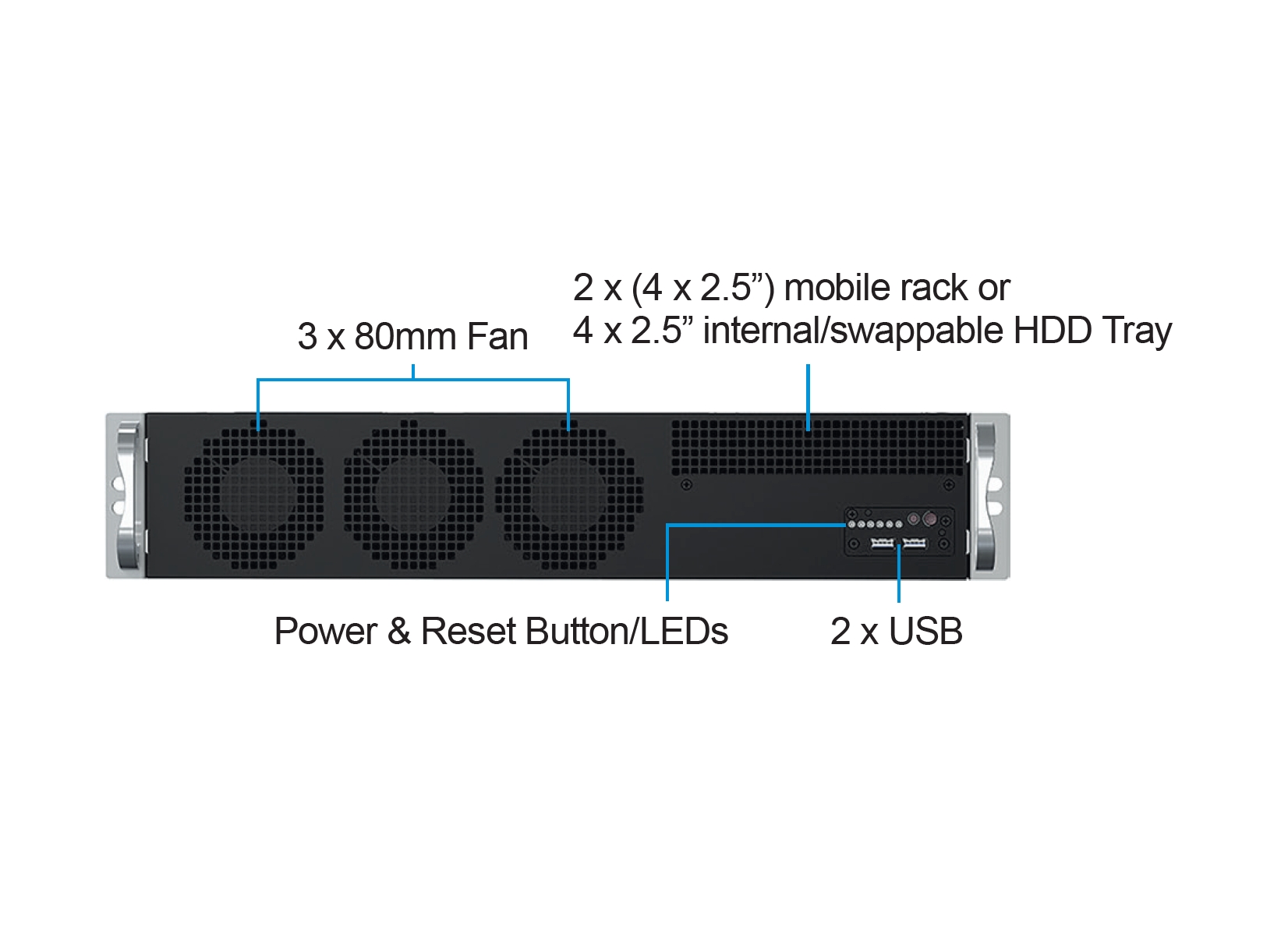

System CoolingSKU1:1 x 8025mm + 4 x 4028mm PWM Fan(Front)
SKU2:3 x 8025mm PWM Fan
Front PanelInput / Output
2 x USB 2.0
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network Activity LEDs
1 x Overheat LED
1 x Power Fail LED
Physical SecureN/A
Power Supply1U Mini Redundant Power Supply (Optional): D220 x W106 x H40.5 mm
Flex-ATX Power Supply (Optional): D150 x W82 x H40mm
EnvironmentOperating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 90% RH (Non-Condensing)
Storage Humidity: 5% ~ 95% RH (Non-Condensing)
CategoryModel No.Description
HDD TrayAC-H2002.5" HDD Tray with Easy Lock
HDD TrayAC-H2012.5" Tool-less HDD Tray
Power SupplyAC-PR6000600W 1U Redundant PSU with PDB&BKT (Brand: 3Y)
Power SupplyAC-PS2500250W 1U Single PSU, Flex-ATX, 80PLUS Bronze (IE62368) (Brand: FSP)
Power SupplyAC-PS3500350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Brand: Acbel)
Power SupplyAC-PS2501250W 1U Single PSU, Flex-ATX (IEC62368) (Brand: Liteon)
Power SupplyAC-PR6001600W 1U Redundant PSU with PDB&BKT (Brand: 3Y)
USBAC-U202USB2.0 Dual Port Cable
USBAC-U305USB3.0 Dual Port Cable
Heatsink-Please Refer Heatsink Product List For More Option
