CS-R11

1U ラックマウントシャーシ

  • 1U ラックマウント 19.85 インチ奥行きシャーシ
  • ATXまでのマザーボードサイズをサポート

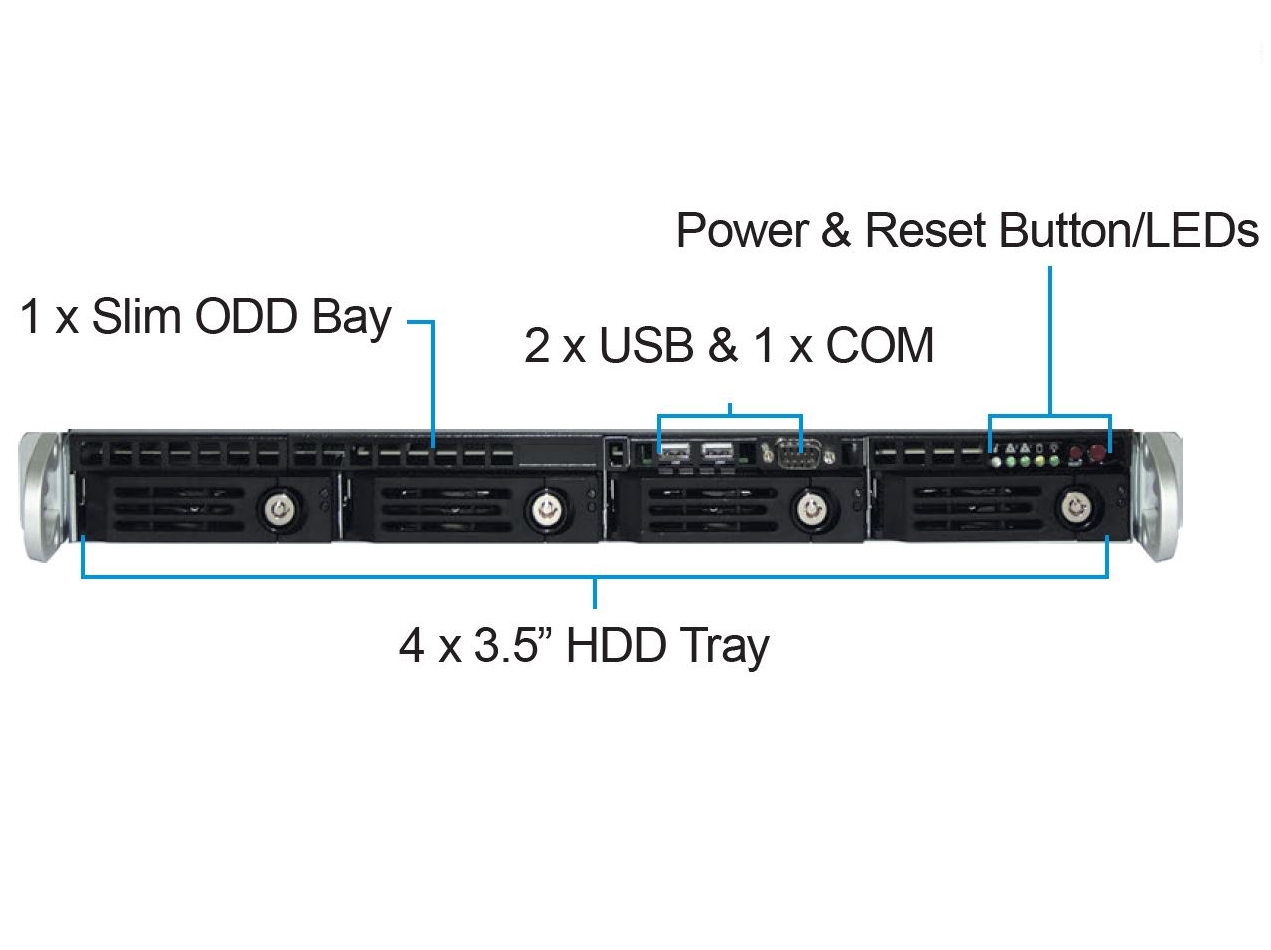

  • 4 x 3.5 インチ交換可能 HDD トレイ (前面)
  • USB ポート x 2、COM ポート x 1 (前面)
  • ライザーカード経由のフルハイト/ハーフレングス拡張スロット x 1
ModelCS-R11
M/B Form FactorMini-ITX, Micro-ATX, ATX

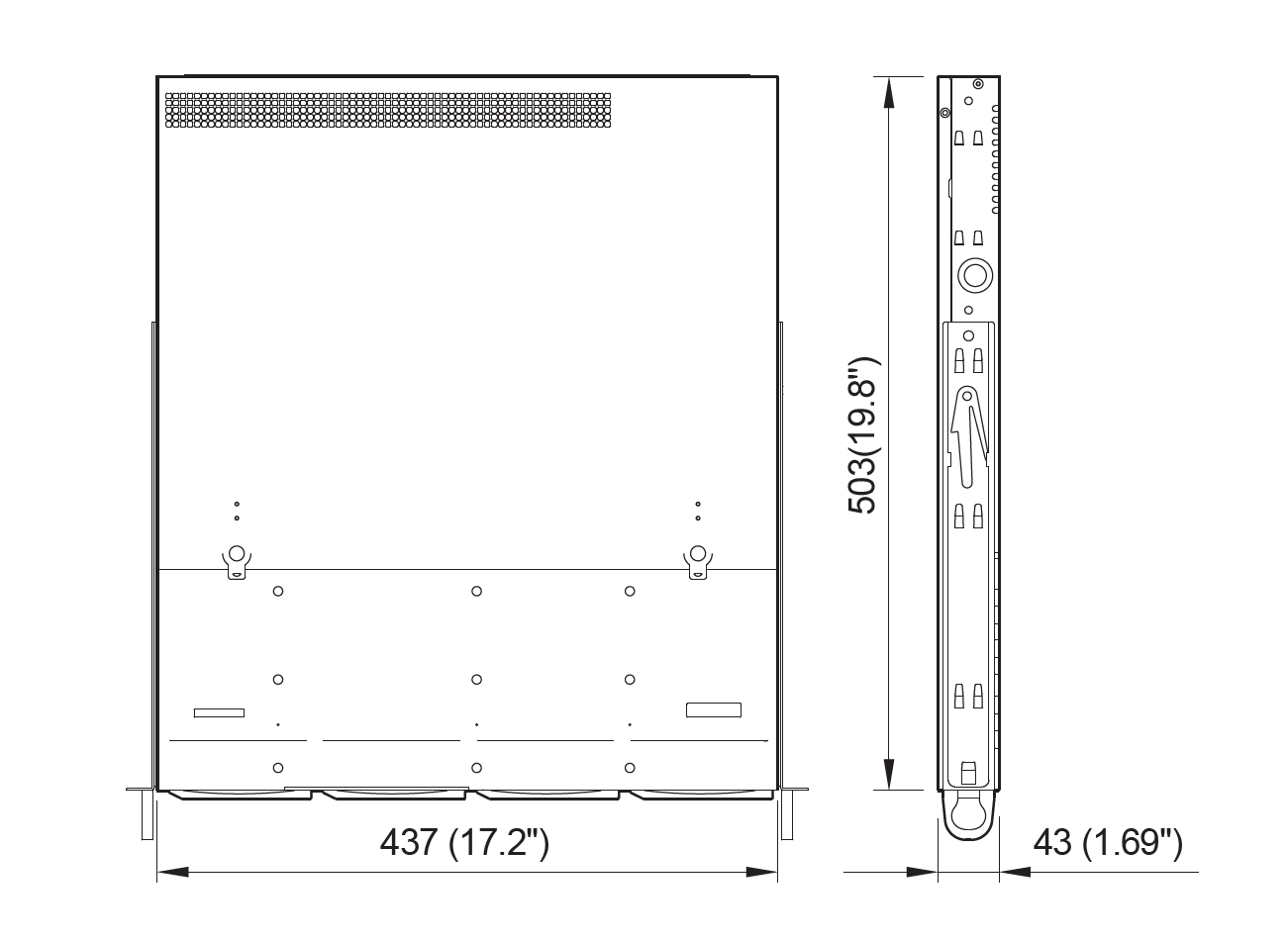

Dimensions (W x D x H)437mm x 503mm x 43mm (17.2” x 19.85” x 1.69”)
ColorBlack (Front panel only)
Processor SupportDual and Single Intel® and AMD processors
Drive Bay4 x 3.5” SAS/ SATA HDD Trays (Front)
Peripheral Bay1 x Slim ODD Bay (Optional)
HDD Backplane4-port 6 Gbps SAS/ SATA to 4-port SAS/ SATA
4-port 6Gbps SAS/ SATA to 4-port SAS/ SATA W/ SGPIO

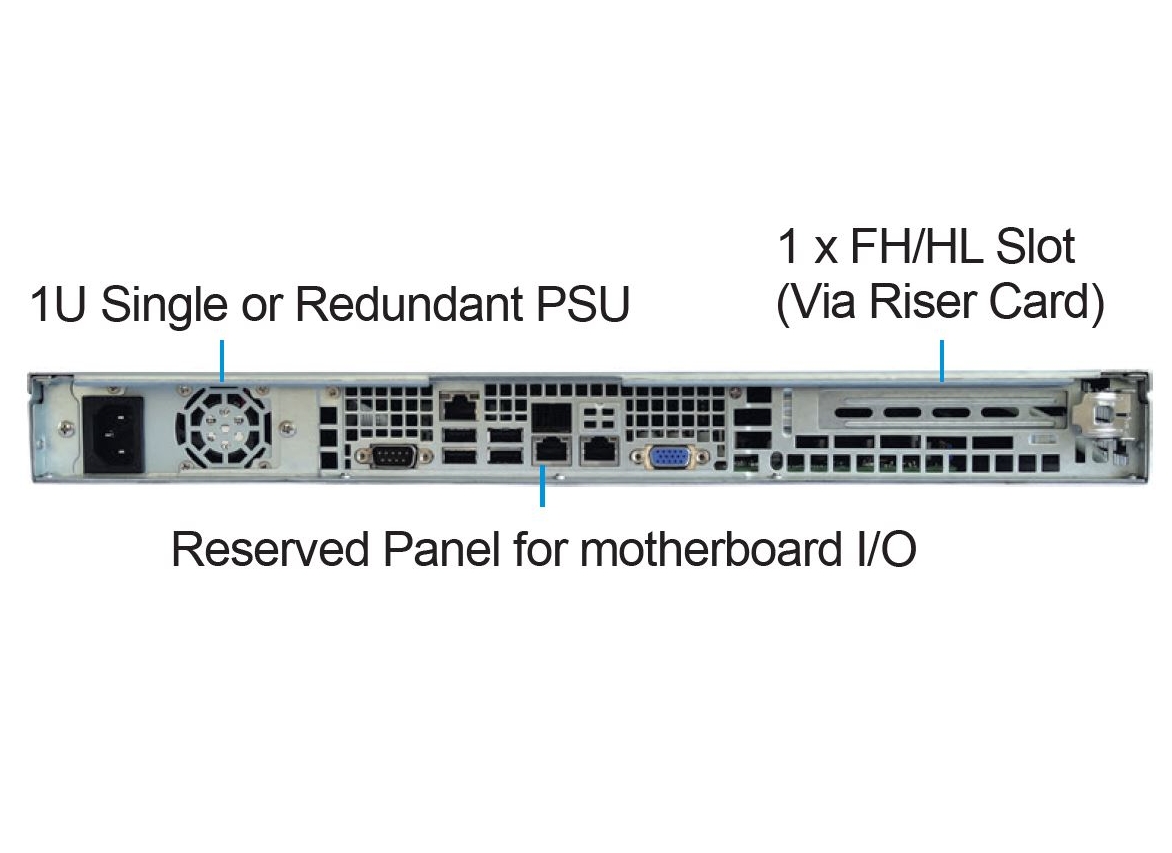

Expansion Slot1 x Full-Height/ Half-Length via Riser Card

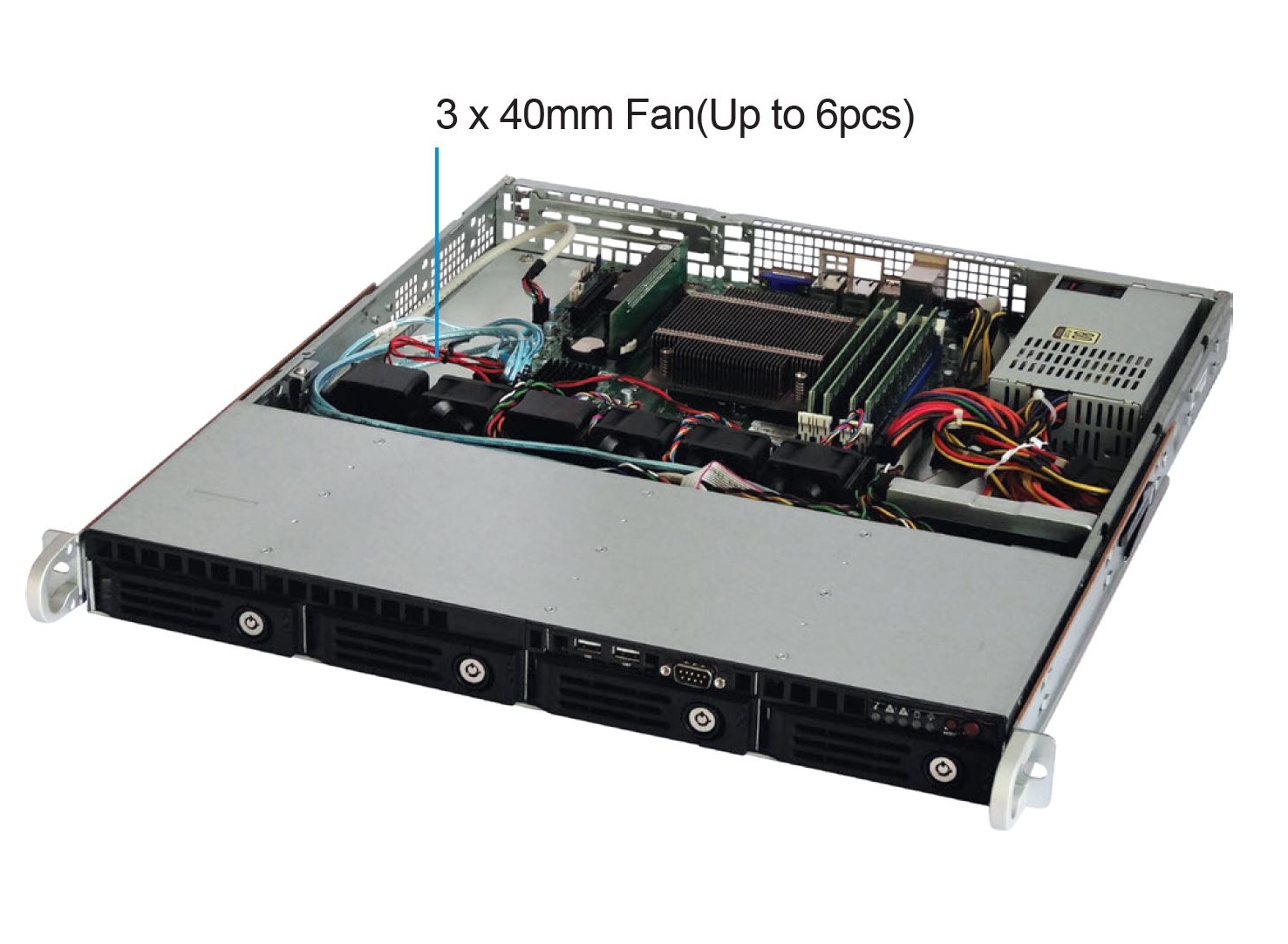

System Cooling3 x 40mm Swappable PWM Fan (Up to 6 Fans)
Front PanelInput / Output
2 x USB 2.0 or USB 3.0 (Optional)
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network Activity LEDs
1 x Overheat LED
Physical SecureChassis Intrusion switch
Power Supply1U single PSU (Optional): D220 x W100 x H40mm
1U redundant PSU (Optional): D220 x W55 x H40mm
EnvironmentOperating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 85% RH (non-condensing)
Storage Humidity: 5% ~ 95% RH (non-condensing)
CategoryModel No.Description
HDD TrayAC-H313.5" HDD Tray with Easy Lock (Plastic)
HDD TrayAC-H323.5" HDD Tray with Key Lock (Plastic)
HDD TrayAC-H333.5" HDD Tray with Easy Lock (Metal)
HDD TrayAC-H343.5" HDD Tray with Key Lock (Metal)
BracketAC-K2003.5" to 2.5" HDD Tray Bracket
BezelAC-F1001U Plastic Front Bezel with Key Lock, Black
BackplaneAC-B1304-Port 6Gbps SAS/SATA to SATA
BackplaneAC-B1314-port 6Gbps SAS/SATA to SATA with SGPIO
PSUAC-PS2501250W 1U Single PSU, Flex-ATX (IEC62368) (Brand: Liteon)
PSUAC-PS2500250W 1U Single PSU, Flex-ATX, 80PLUS Bronze (IE62368) (Brand: FSP)
PSUAC-PS3500350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Brand: Acbel)
PSUAC-PS4000400W 1U Single PSU, Flex-ATX, with PDB&BKT (Brand: Acbel)
PSUAC-PR6001600W 1U Redundant PSU with PDB&BKT (Brand: 3Y)
Slide RailAC-R1021U Slide Rail, Thin Type, 26.5"~33.05", Linear, Toolless
Slide RailAC-R561U Slide Rail, Thin Type, 19"~26.4", Linear, Toolless
Heatsink-Please Refer Heatsink Product List for More Option
