ファンレス
CS-916
3.5” インチSBC汎用ファンレスシャーシ
- 3.5インチSBCマザーボードをサポート
- 2.5インチHDDブラケット×1
- Mini-PCIe 拡張モジュール拡張スロット x 1
- 外部12Vアダプター（オプション）

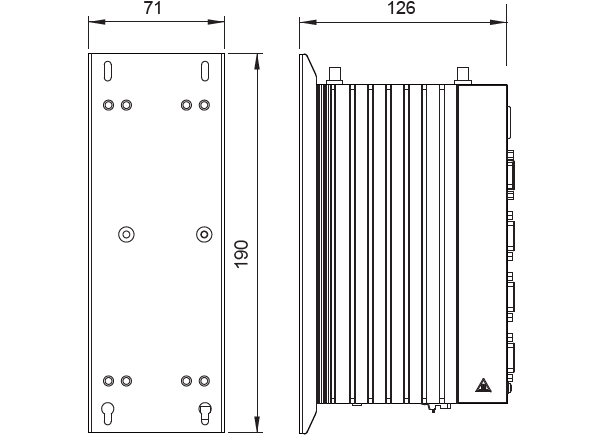

- 壁掛けブラケットをサポート
- マルチ拡張I/Oコネクタ
| Model | CS-916 |
| M/B Form Factor | 3.5” SBC |
| Dimensions (W x D x H) | 180 x 125 x 70mm (7.1” x 4.9” x 2.75”) |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors,
TDP < 15W (Depends on CPU Heatsink) |
| Drive Bay | 1 x 2.5" Internal HDD Bracket |
| Peripheral Bay | N/A |
| Backplane | N/A |
| Expansion Slot | 1 x Mini-PCIe expanded module |
| System Cooling | Customized Thermal Block Solution |
| Front Panel | Input / Output
1 x DIO via DB9 4 x COM I/O Depends on Motherboard Specification Button 1 x Power Button LED 1 x Power LED 1 x HDD Activity LED |
| Back Panel | N/A |

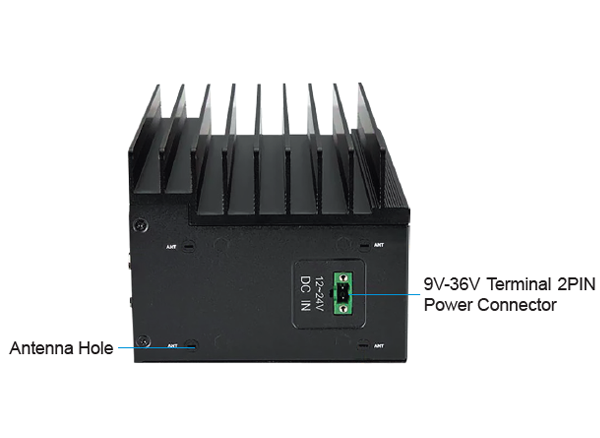

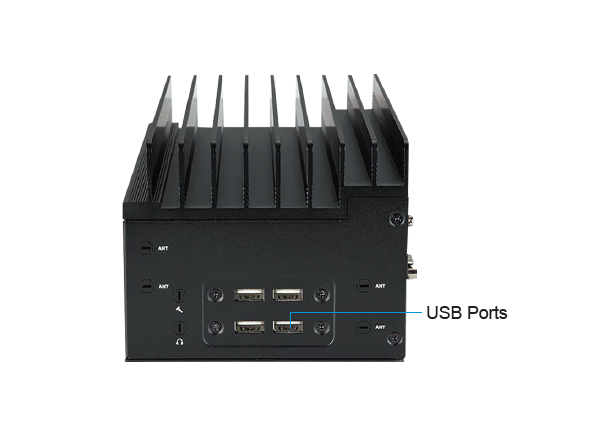

| Side Panel | 4 x Reserved Wifi Antenna Hole(2 on each side)
4 x USB 2.0 or 3.0 2 x Audio Jacks (Optional) SKU1：1 x Power Connector Terminal Block Type SKU2：DC Jack |
| Power Supply | External 12V Adapter(optional) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| PSU | AC-PS3500 | 350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Acbel: FSJ008-4BAG) |
| PSU | AC-PS4000 | 400W 1U Single PSU, Flex-ATX, with PDB&BKT (Acbel: FSE001-FEAG) |
| PSU | AC-PS2501 | 250W 1U Single PSU, Flex-ATX (IEC62368) (Liteon: PS- 5251-05LD) |
| Slide Rail | AC-R102 | 1U Slide Rail, Thin Type, 26.5"~33.05", Linear, Toolless |
| Slide Rail | AC-R56 | 1U Slide Rail, Thin Type, 19"~26.4", Linear, Toolless |
| Heatsink | - | Please refer Heatsink Product for more option |
