Tower / Workstation
CS-M55
5 Trays Mini-Tower Chassis
- Supports Mini-ITX motherboard
- 2 x 2.5” Swappable HDD trays(Optional)
- 5 x 3.5” Swappable HDD trays
- 1 x Full-Height/Half-Length expansion slots
- Support 250W Flex-ATX Power Supply
| Model | CS-M55 |
| M/B Form Factor | Mini-ITX |

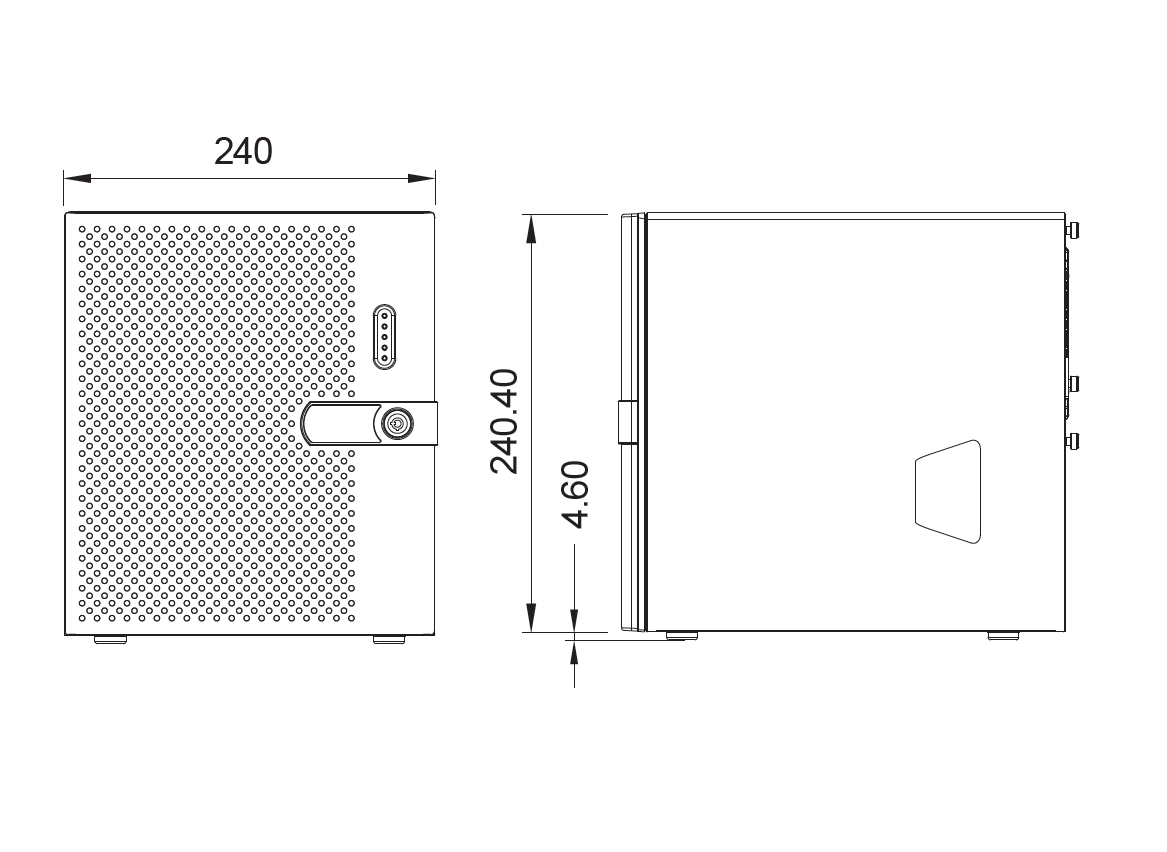

| Dimensions (W x D x H) | 210 x 254 x 240 mm (8.27” x 10” x 9.45”) |
| Color | Black C |
| Processor Support | TDP < 65W (With 1U Active Heatsink) |
| Drive Bay | 2 x 2.5” Swappable HDD Trays (Optional)
5 x 3.5” Swappable HDD Trays |
| Peripheral Bay | N/A |
| HDD Backplane | 3.5”: 5-port 12 Gbps SAS/ SATA to SATA HDD
2.5”: 2-port 6 Gbps SAS/ SATA to SATA HDD with SGPIO (Optional) |
| Expansion Slot | 1 x Fall-Height / Half-length |

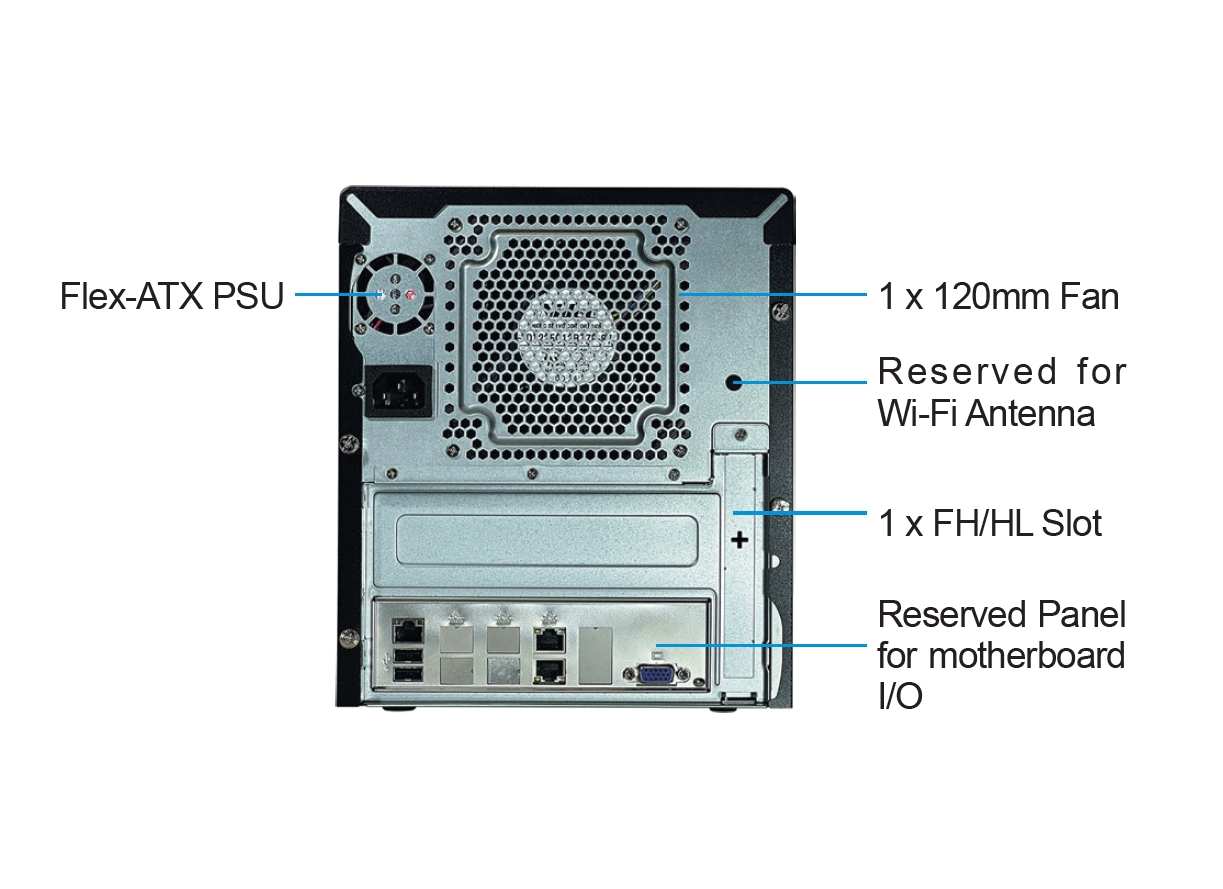

| System Cooling | 1 x 120mm PWM Fan

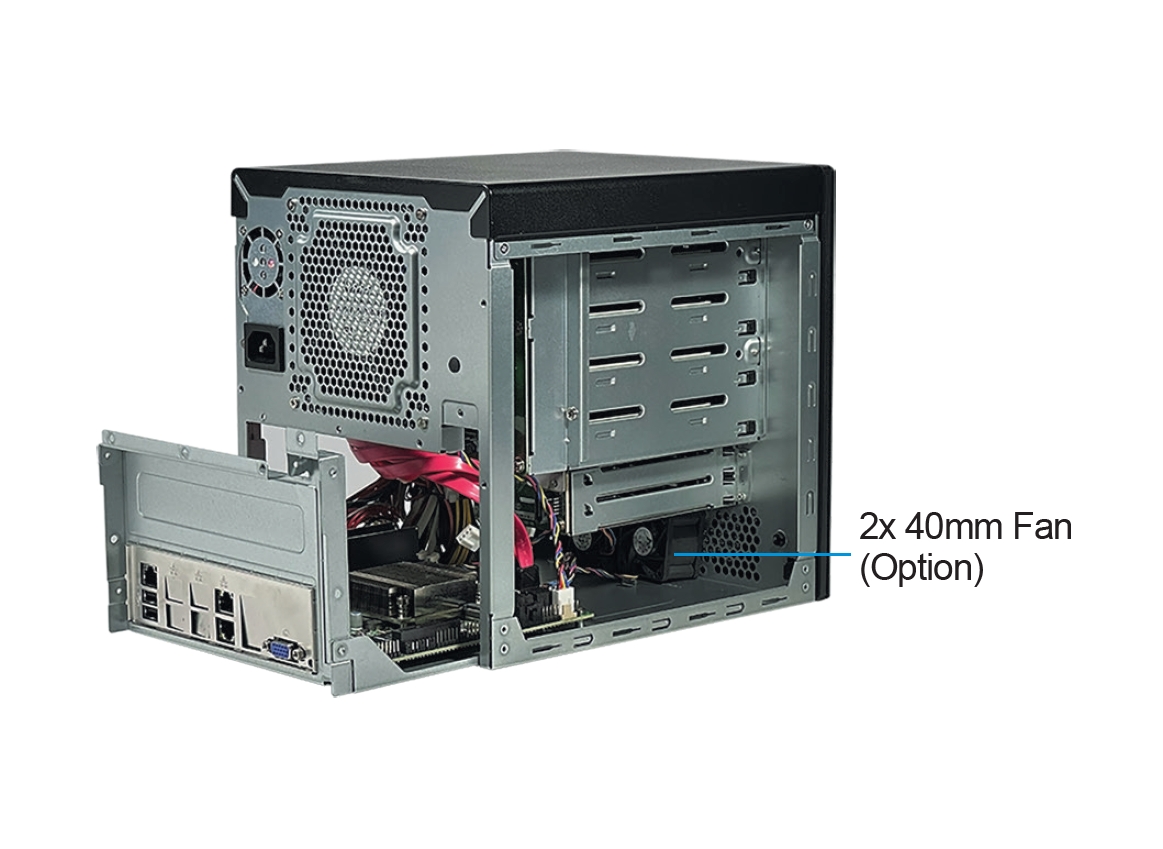

2 x 40mm PWM Fan (Front: optional) |

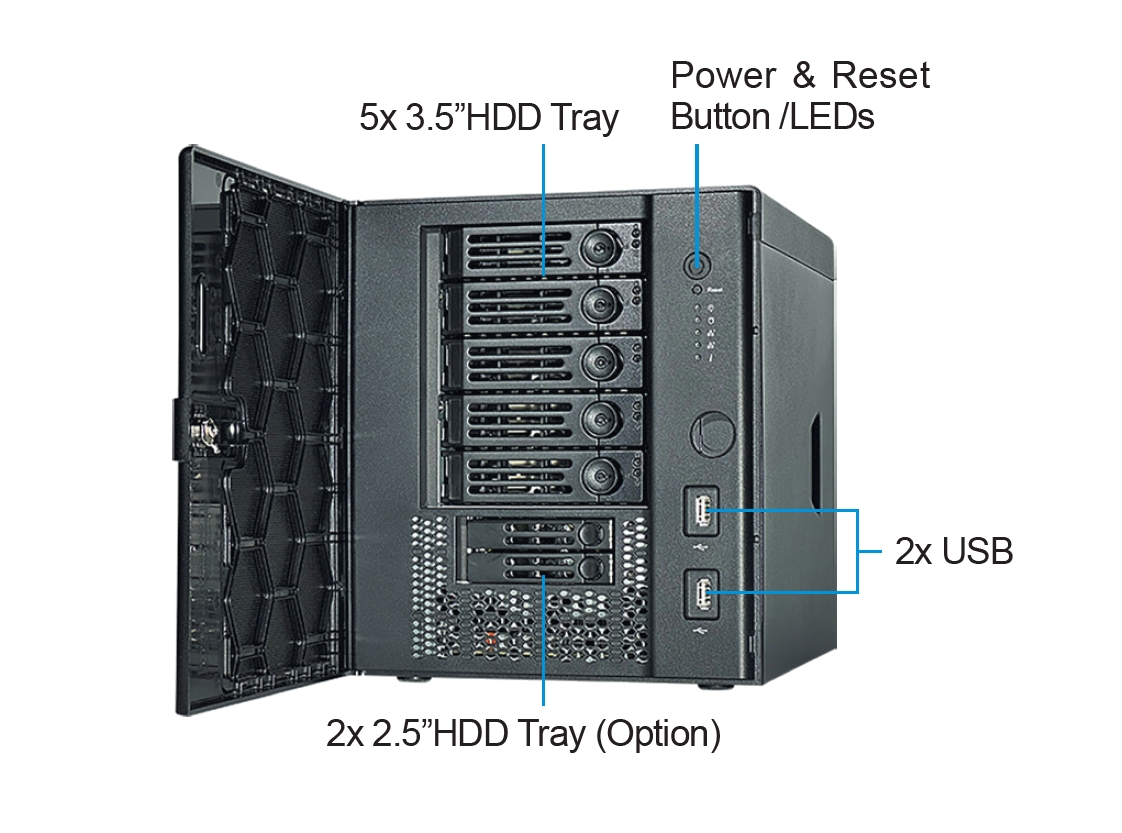

| Front Panel | Input / Output
2 x USB 2.0 or 3.0 Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED |
| Physical Secure | Intrusion Switch and Front Door Key Lock |
| Power Supply | 250W Flex-ATX Power Supply: D150 x W82 x H40mm |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 85% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Category | Model No. | Description |
| Backplane | AC-B920 | 2-port 6Gbps SAS/SATA to SATA (for 2.5” HDD) |
| Backplane | AC-B932 | 5-port 6G/12G bps SAS/SATA to SATA with SGPIO |
| Power Supply | AC-PS2500 | 250W 1U Single PSU, Flex-ATX, 80PLUS Bronze (IE62368) (Brand: FSP) |
| Power Supply | AC-PS3500 | 350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Brand: Acbel) |
| Power Supply | AC-PS2501 | 250W 1U Single PSU, Flex-ATX (IEC62368) (Brand: Acbel) |
| HDD Tray | AC-H200 | 2.5” HDD Tray with Easy Lock |
| HDD Tray | AC-H201 | 2.5” Tool-less HDD Tray |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” to 2.5” HDD Converter Tray with Easy Lock |
| HDD Tray | AC-H34 | 3.5” to 2.5” HDD Converter Tray with Key Lock |
| USB Cable | AC-U200 | USB2.0 Panel-Mount Cable (Single port) |
| USB Cable | AC-U201 | USB2.0 Panel-Mount Cable (Dual port) |
| USB Cable | AC-U303 | USB3.0 Panel-Mount Cable (Dual port) |
| USB Cable | AC-U203 | USB2.0 Panel-Mount Cable (Dual port) |
| Heatsink | - | Please Refer Heatsink Product List For More Option |
