Rackmount
CS-R36
3U 16-Bay Rackmount Chassis
- Supports motherboard size up to E-ATX
- 8 x 3.5” swappable HDD trays
- 2 x 3.5” internal HDD bays
- 2 x 2.5” swappable HDD trays(rear)
- 7 x Low-Profile/Half-Length expansion slots
- 2 x USB 3.0
| Model | CS-R36 |
| M/B Form Factor | EE-ATX(13" x 13.68"), E-ATX, ATX, Micro-ATX, Mini-ITX |
| Dimensions (W x D x H) | 437 x 647 x132mm (17.2" x 25.5" x 5.2") |
| Color | Black (Front panel only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 16 x 3.5” Swappable SAS/ SATA HDD Trays (Front)
2 x 2.5” Swappable SAS/ SATA HDD Trays (Rear: Optional) |
| Peripheral Bay | 1 x Slim DVD-ROM Drive or
1 x Slim 1.44MB Floppy Drive (Front: Optional) |
| HDD Backplane | 16-port 12 Gbps SAS/ SATA to SATA or 12Gbps single expenders |
| Expansion Slot | 7 x Full-Height/ Full-Length |

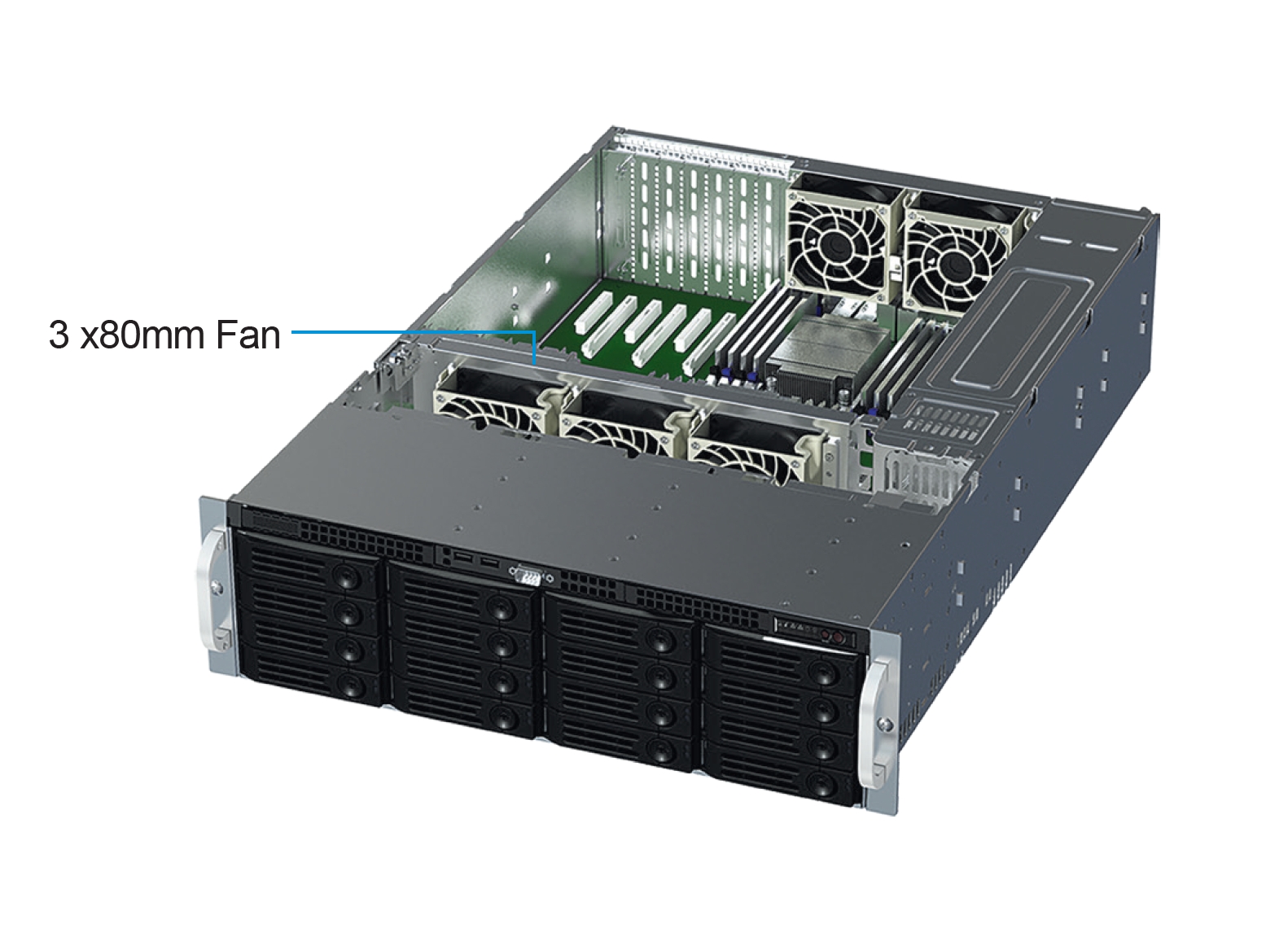

| System Cooling | 3 x 80mm Swappable PWM Fans

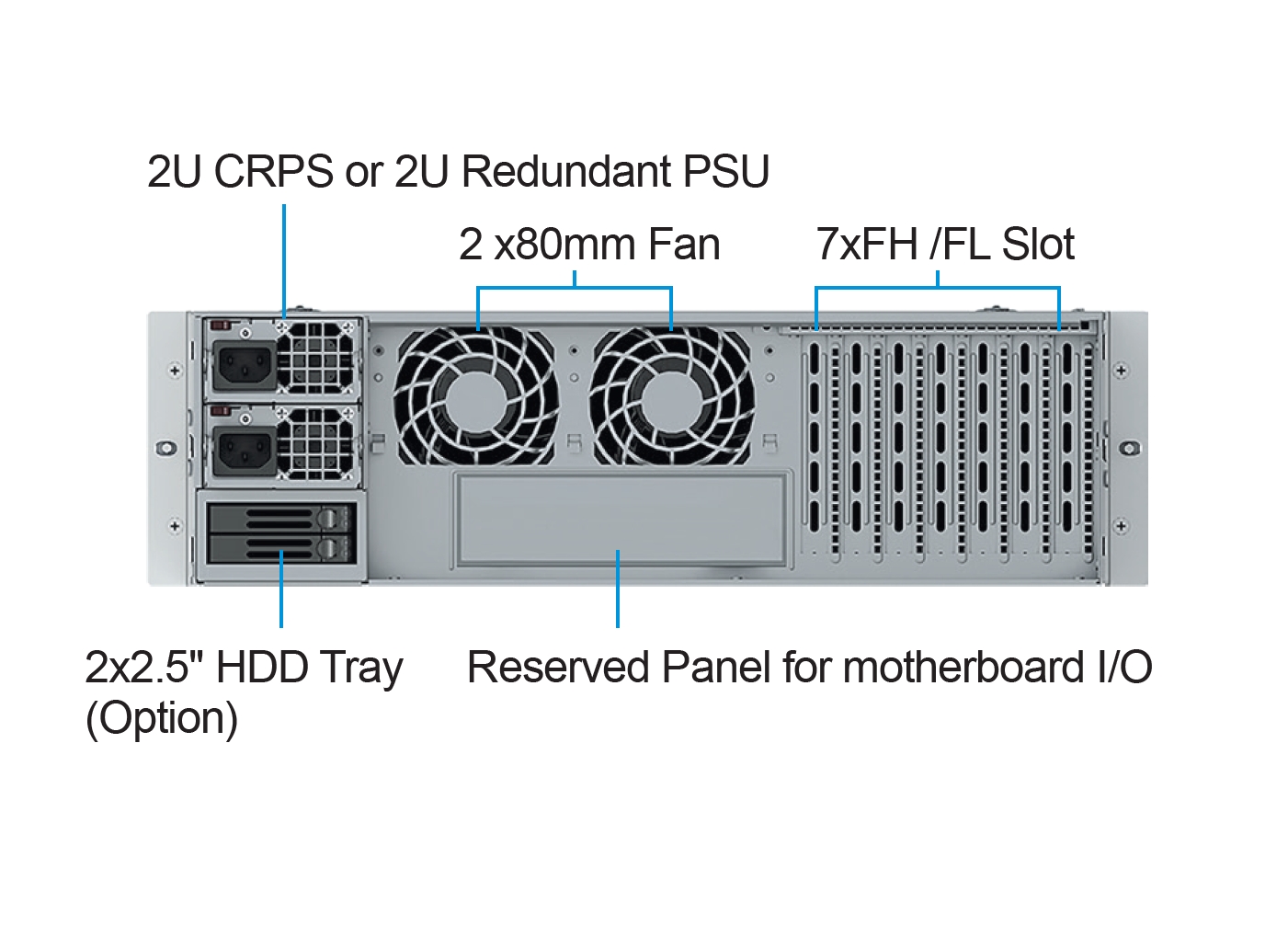

2 x 80mm Swappable PWM Fans (Rear) |

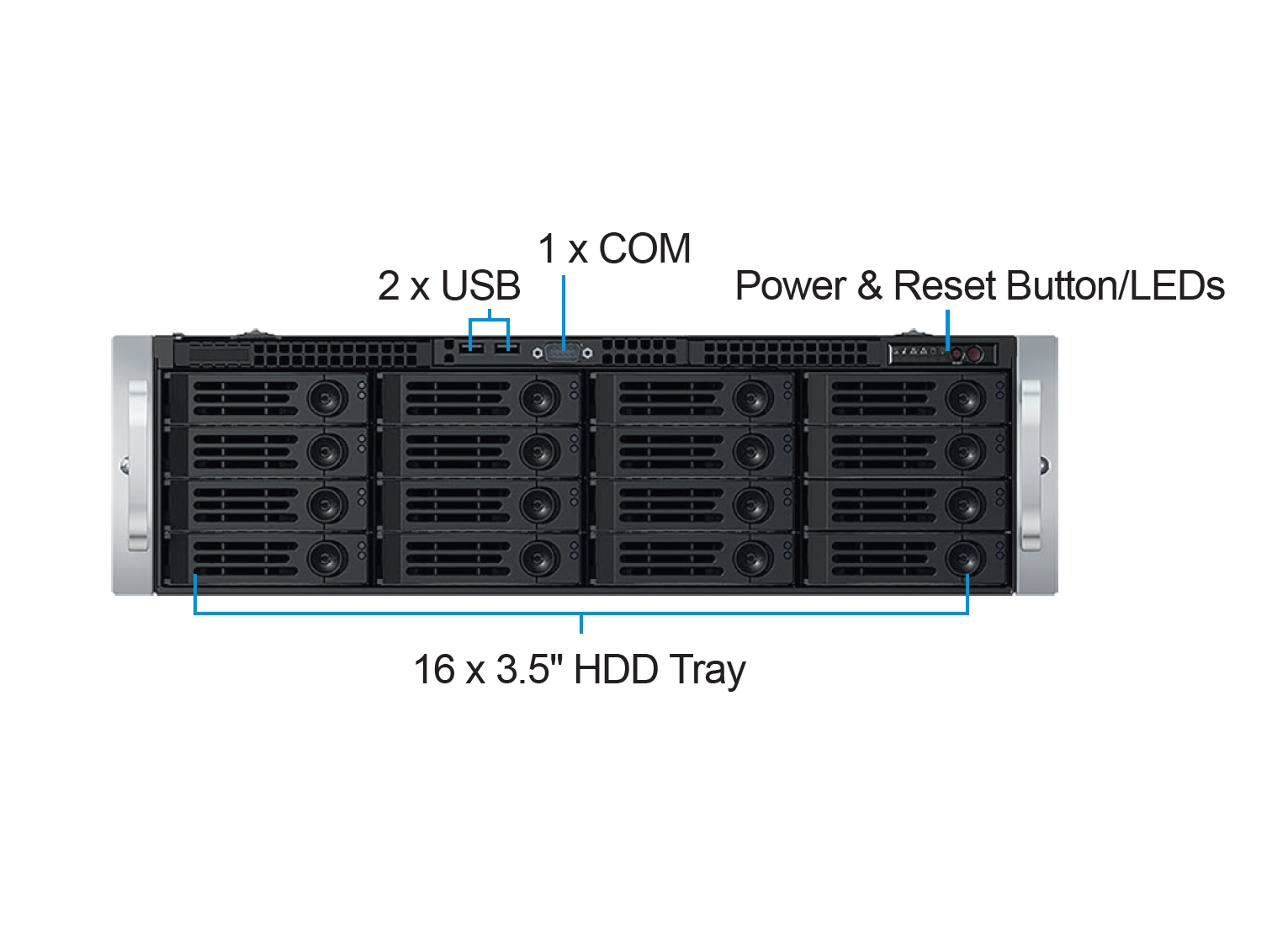

| Front Panel | Input / Output
2 x USB 2.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | 2U CRPS Power Supply: D260 x W77 x H84mm (Optional)
2U Redundant Power Supply: D336 x W40 x H76mm (Optional) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” HDD Tray with Easy Lock (Metal) |
| HDD Tray | AC-H34 | 3.5” HDD Tray with Key Lock (Metal) |
| Bracket | AC-K200 | 3.5” to 2.5” HDD Tray Bracket |
| Power Supply | AC-PR9201 | 920W 2U Redundant PSU with PDB&BKT (Brand: Compuware) |
| Power Supply | AC-PR8000 | 800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel ) |
| Power Supply | AC-PR1K20 | 1200W 2U CRPS PSU, with PDB & BKT (Brand: Acbel) |
| Slide Rail | AC-R50 | 2U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless |
| Slide Rail | AC-R55 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless |
| Slide Rail | AC-R58 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless (With Square-hole to Round-hole Converter) |
| Heatsink | - | Please refer Heatsink/Cooler Product for more option |
