Rackmount
CS-R27S

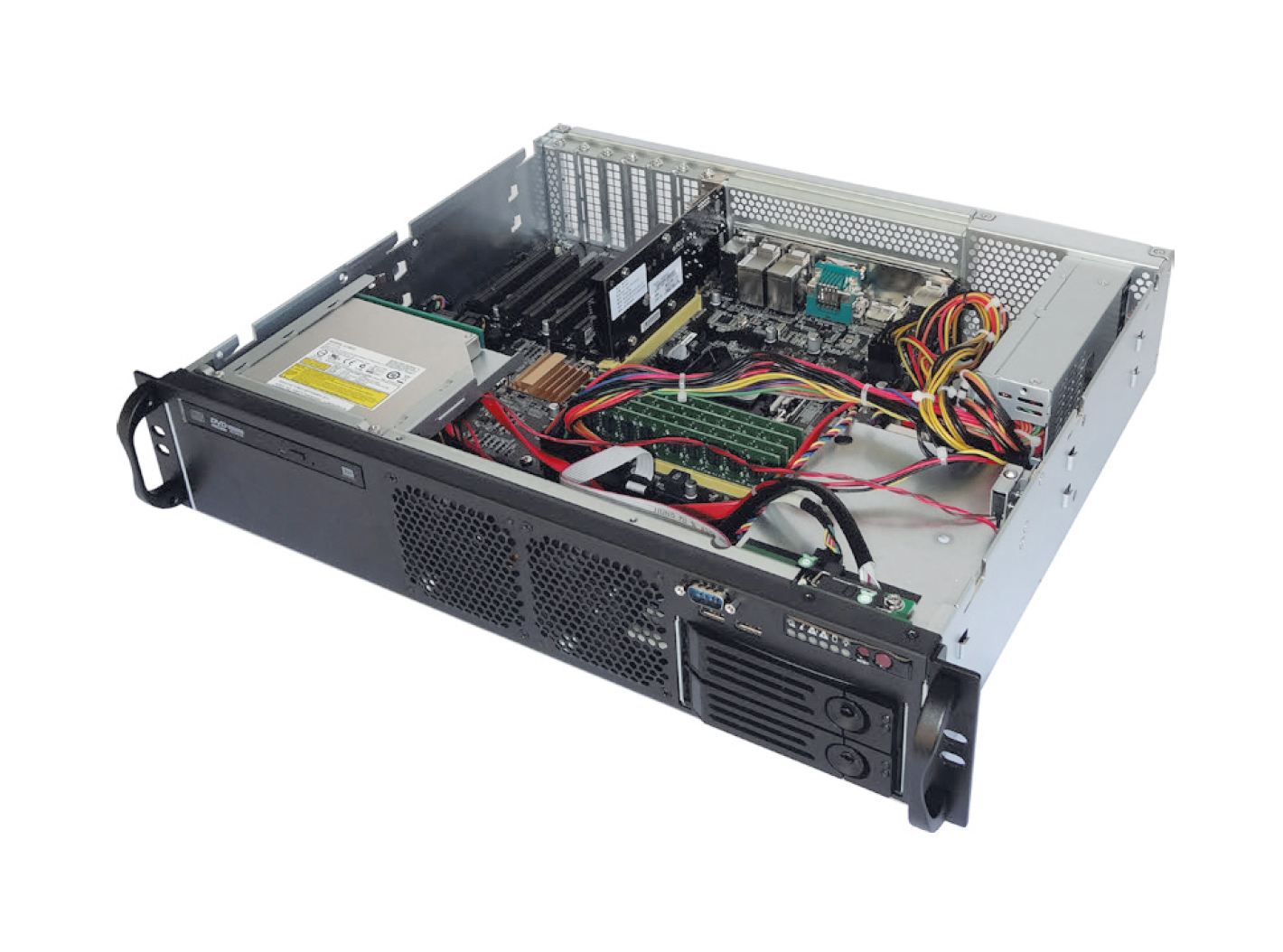

2U Rackmount Chassis
- 2U rackmount short depth 15” chassis
- Supports motherboard size up to ATX
- 1 x 2.5" internal HDD bay
- Mini-ITX：4 x 3.5” swappable HDD trays
- ATX & Micro-ATX：2 x 3.5” swappable HDD trays and 2 x 3.5” internal HDD trays
- Micro-ATX & Mini-ITX：5 x Low-Profile/Half-Length
- ATX：7 x Low-Profile/Half-Length or 3 x Full-Height/Full-Length
| Model | CS-R27S |
| M/B Form Factor | ATX, Micro-ATX, Mini-ITX |

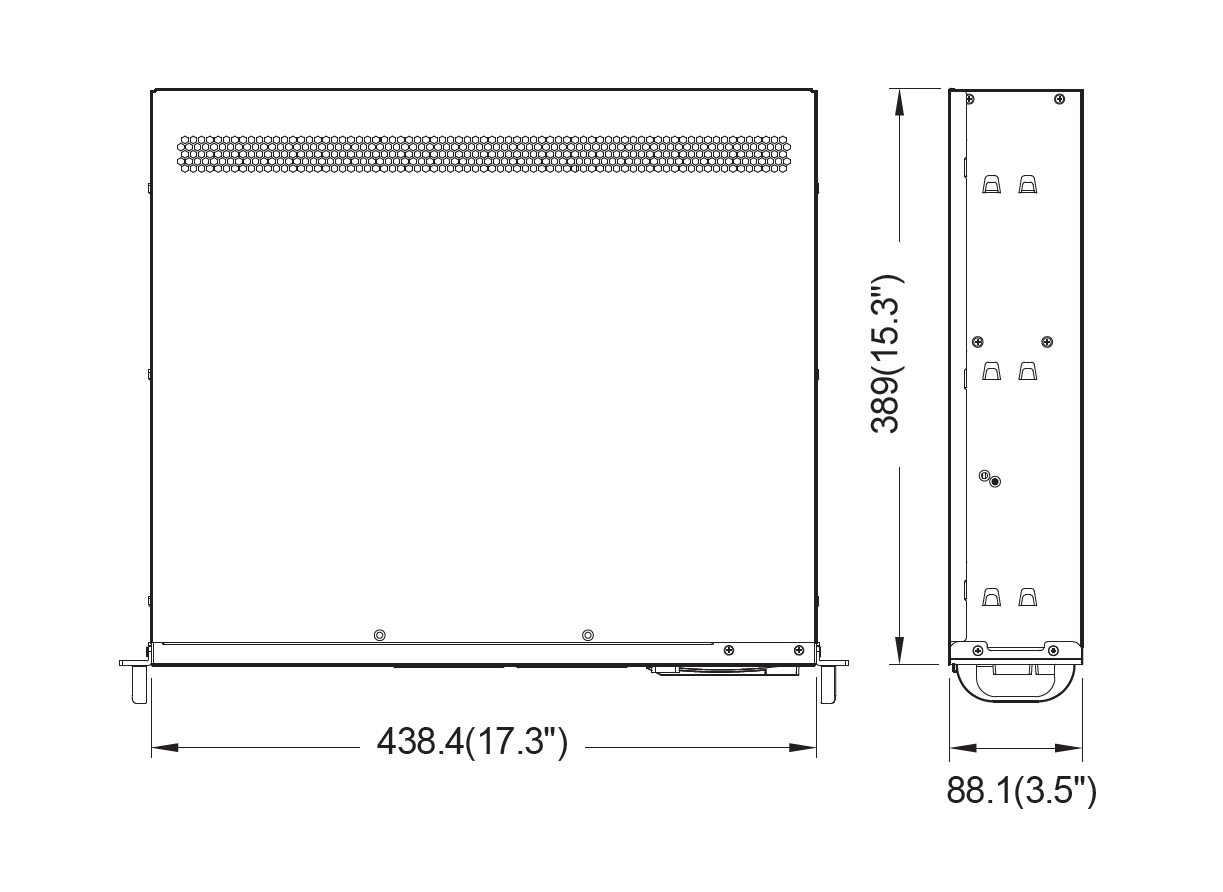

| Dimensions (W x D x H) | 438 x 380 x 88mm (17.24” x 14.96" x 3.45”) |
| Color | Black C (Front panel only) |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 1 x 2.5” Internal HDD Bay
Mini-ITX: 4 x 3.5” Swappable HDD Trays ATX & Micro-ATX: 2 x 3.5” Swappable HDD Trays 2 x 3.5” Internal HDD Trays |
| Peripheral Bay | 1 x Slim type ODD Bay (optional) |
| HDD Backplane | 2-port 6 Gbps SAS/ SATA to 2-port SATA HDD |
| Expansion Slot | Micro-ATX & Mini-ITX：5 x Low-Profile/ Half-Length
ATX：7 x Low-Profile/ Half-Length ATX：3 x Full-high/ Full-length(Optional) |
| System Cooling | 2 x 8025mm PWM fan |

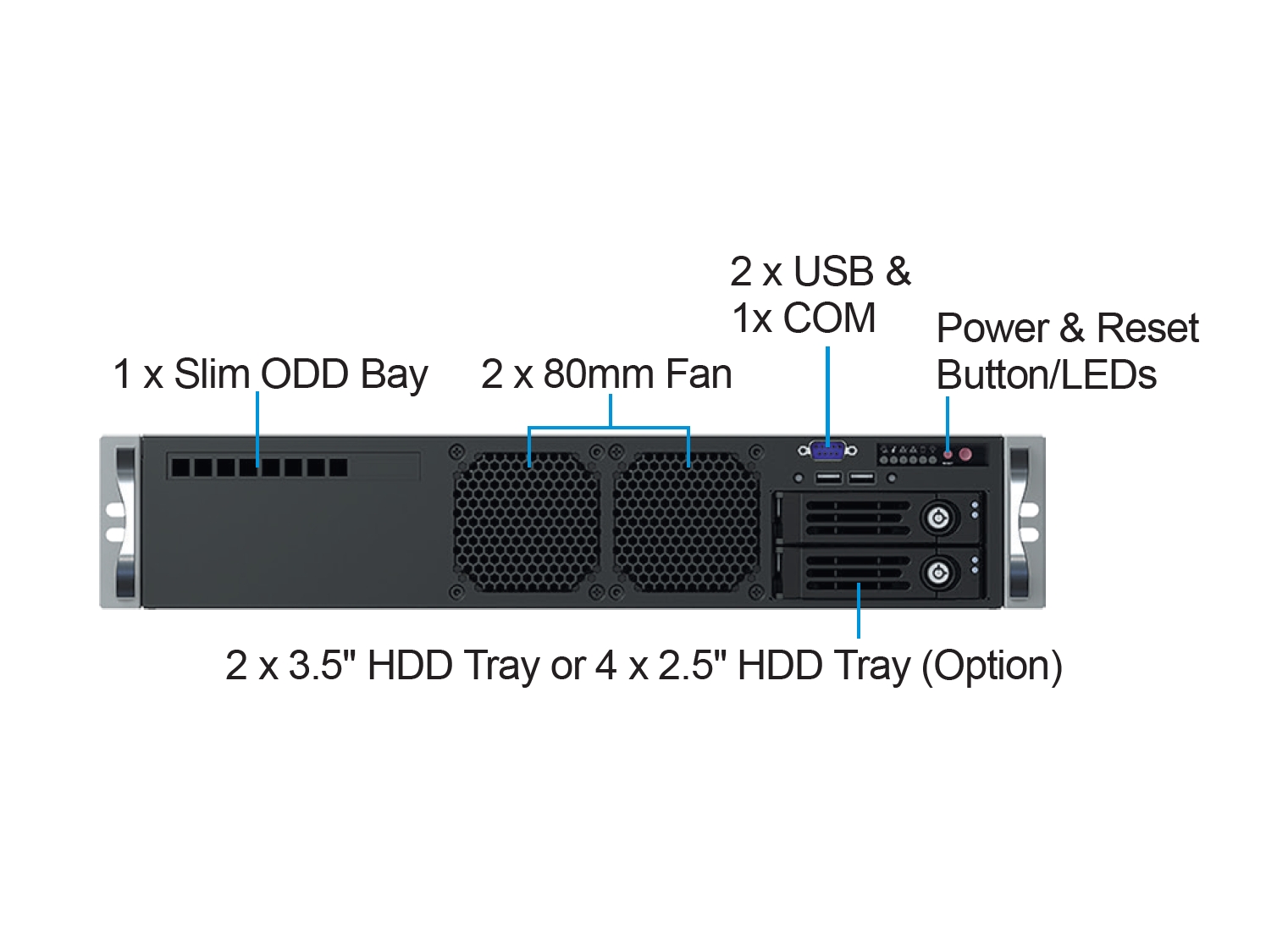

| Front Panel | Input / Output
2 x USB 2.0 or 3.0 1 x COM Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED 1 x Power Fail LED |
| Physical Secure | Chassis intrusion switch |
| Power Supply | Micro-ATX & Mini-ITX：PS/2 ATX Power Supply: D190 x W150 x H86mm (Optional)
Flex-ATX Power Supply: D150 x W82 x H40mm (Optional) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” to 2.5” HDD Converter Tray with Easy Lock |
| HDD Tray | AC-H34 | 3.5” to 2.5” HDD Converter Tray with Key Lock |
| Bracket | AC-K200 | 3.5” to 2.5” HDD Tray Bracket |
| Bezel | AC-F200 | 2U Plastic Front Bezel with Key Lock, Black |
| Backplane | AC-B235 | 2-port 6Gbps SAS/SATA to SATA |
| PSU | AC-PS2500 | 250W 1U Single PSU, Flex-ATX, 80PLUS Bronze (IE62368) (Brand: FSP) |
| PSU | AC-PS3500 | 350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Brand: Acbel) |
| PSU | AC-PS8501 | 850W PS/2 ATX PSU, 80PLUS Gold (Brand: Liteon) |
| PSU | AC-PS5503 | 550W PS/2 ATX PSU (Brand: Acbel) |
| PSU | AC-PS2501 | 250W 1U Single PSU, Flex-ATX (IEC62368) (Brand: Liteon) |
| USB | AC-U305 | USB3.0 Dual Port Cable |
| USB | AC-U202 | USB2.0 Dual Port Cable |
| Slide Rail | AC-R50 | 2U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless |
| Slide Rail | AC-R55 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless |
| Slide Rail | AC-R53 | 2U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square to Round Hole converter |
| Heatsink | - | Please Refer Heatsink Product List For More Option |
