CS-R24

2U 24-Bay Rackmount Chassis

  • Supports motherboard size up to E-ATX

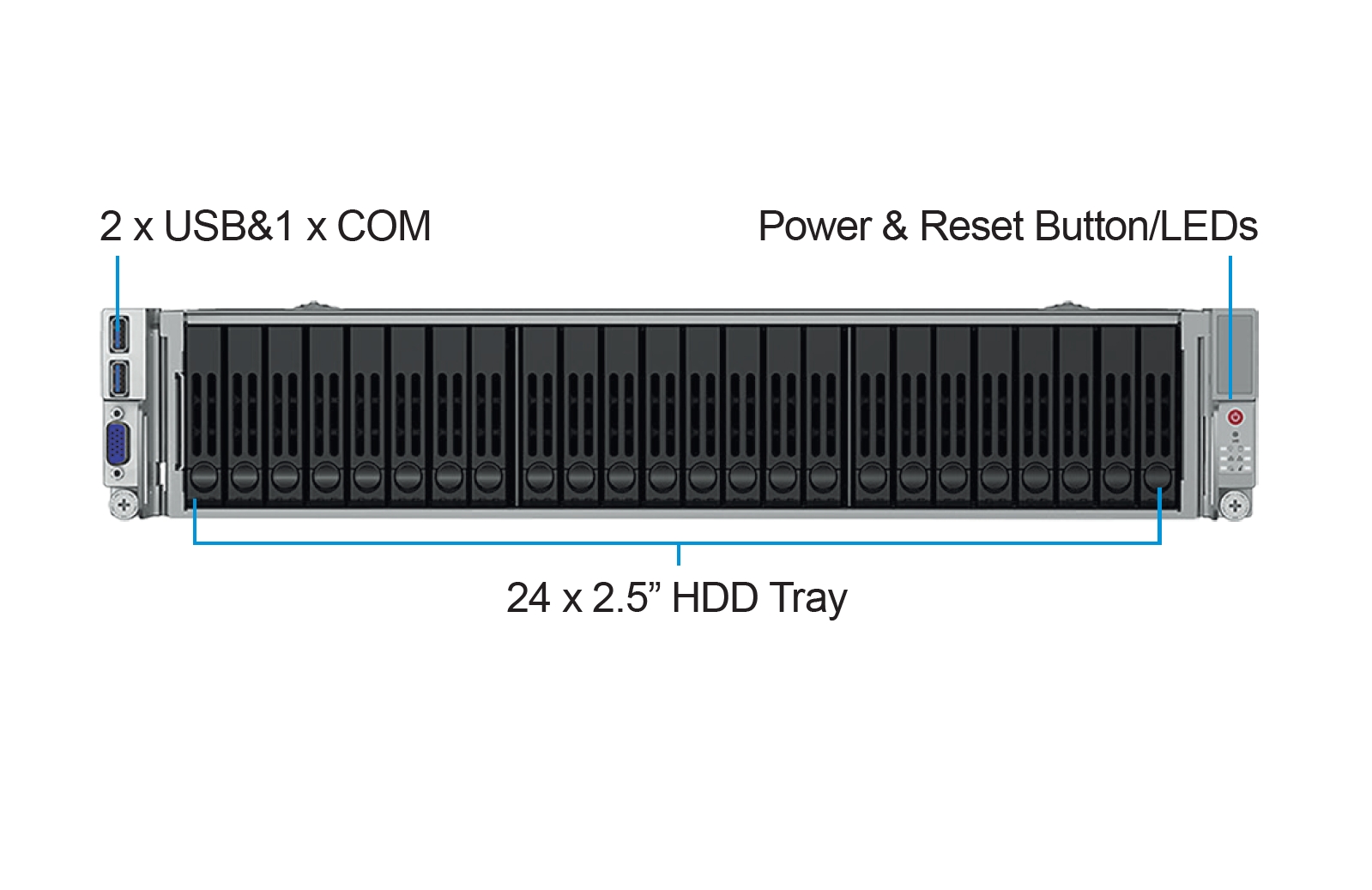

  • 24 x 2.5" swappable HDD trays

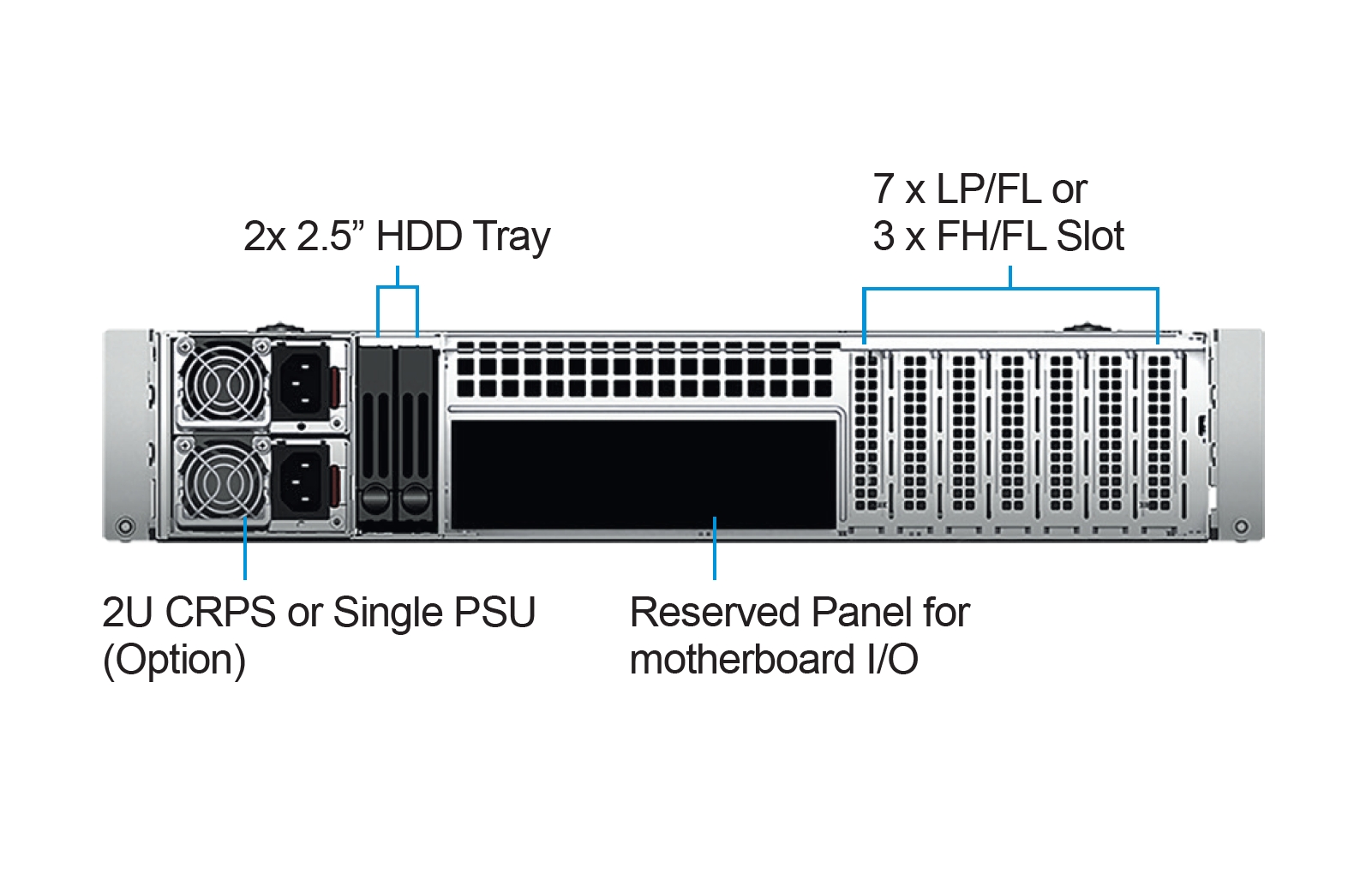

  • 2 x 2.5” swappable HDD trays
  • 7 x Low-Profile/Full-Length or 3 x Full-Height/Full-Length Expansion Slot
  • 2x USB 3.0
  • Available for 2U CRPS Power Supply
ModelCS-R24
M/B Form FactorE-ATX, ATX, Micro-ATX, Mini-ITX

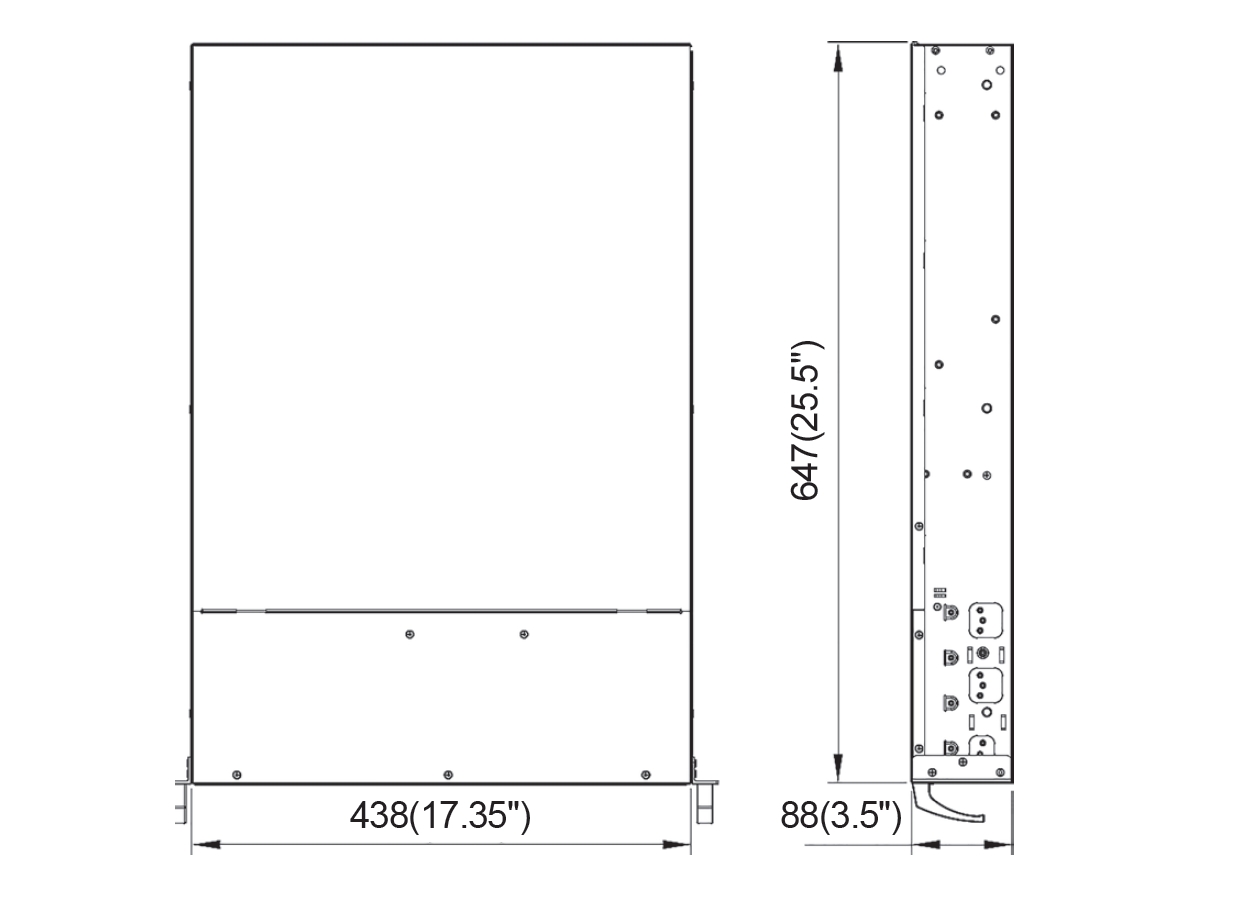

Dimensions (W x D x H)438 x 647 x 88mm (17.2”x25.5”x3.5”)
ColorBlack (Front panel only)
Processor SupportDual and Single Intel® and AMD processors
Drive Bay24 x 2.5” Swappable Tool-less HDD Trays
2 x 2.5” Swappable HDD Trays (Rear)
Peripheral BayN/A
HDD Backplane24-port 24Gbps SAS/ SATA/ NVMe to / Slim SAS with SGPIO
Expansion Slot7 x Low-Profile/ Half-Length
3 x Full-height/ Half-length (Optional)

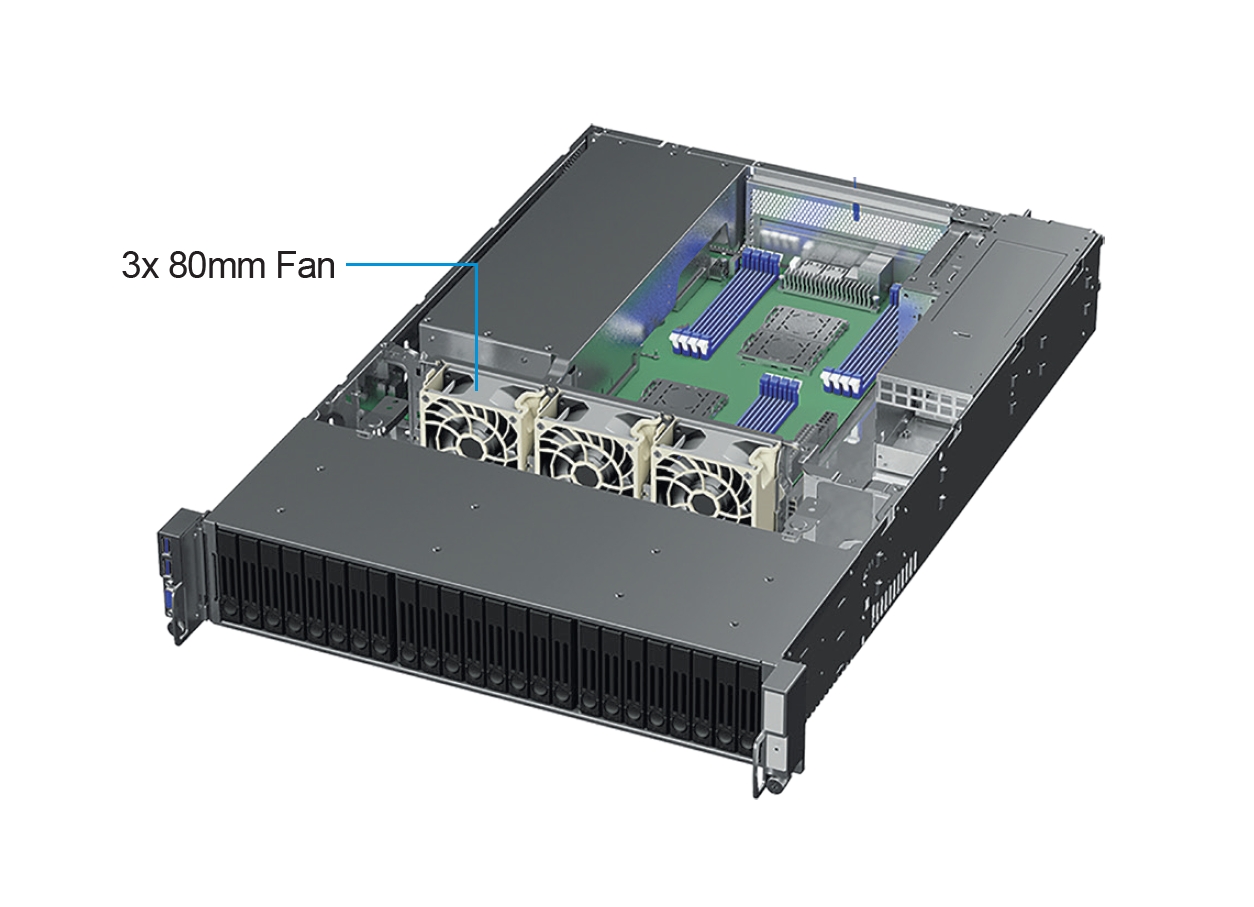

System Cooling3 x 8038mm PWM Fan
Front PanelInput / Output
2 x USB 3.0
1 x COM
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network Activity LEDs
1 x Overheat LED
1 x Power Fail LED
Physical SecureChassis intrusion switch
Power Supply2U CRPS Power Supply: D260 x W77 x H84mm (Optional)
2U Single Power Supply: D240 x W100 x H70mm (Optional)
EnvironmentOperating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 85% RH (Non-Condensing)
Storage Humidity: 5% ~ 95% RH (Non-Condensing)
CategoryModel No.Description
BackplaneAC-B22024-port 12Gbps to 4-port Mini-SAS HD, Single-Expander, 20- port SAS/SATA, 4-port NVMe/SAS/SATA
HDD TrayAC-H2002.5” HDD Tray with Easy Lock
HDD TrayAC-H2012.5” Tool-less HDD Tray
PSUAC-PR5500550W 2U CRPS PSU, 80PLUS Gold (Brand: Acbel)
PSUAC-PR8000800W 2U CRPS PSU, 80PLUS Platinum (Brand: Acbel )
PSUAC-PR1K201200W 2U CRPS PSU, with PDB & BKT (Brand: Acbel)
PSUAC-PR6500650W 2U Redundant PSU, 80PLUS Gold (Brand: Acbel)
PSUAC-PS5501550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
PSUAC-PS5500550W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
PSUAC-PS6500650W 2U Single PSU, 80PLUS Bronze (Brand: Acbel)
Slide RailAC-R502U Slide Rail, Thin Type, 19”~26.6”, Ball Bearing, Toolless
Slide RailAC-R552U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless
Slide RailAC-R532U Slide Rail, Thin Type, 26.5”~36.4”, Ball Bearing, Toolless, w/ Square To Round Hole Converter
Heatsink-Please Refer Heatsink Product List For More Option
