Fanless
CS-916
3.5” SBC Generic Fanless Chassis
- Supports 3.5” SBC motherboard
- 1 x 2.5” HDD bracket
- 1 x Mini-PCIe extend module expansion slot
- External 12V adapter(optional)
- Supports wall-mount bracket
- Multi-extended I/O connectors
| Model | CS-916 |
| M/B Form Factor | 3.5” SBC |
| Dimensions (W x D x H) | 180 x 125 x 70mm (7.1” x 4.9” x 2.75”) |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors,
TDP < 15W (Depends on CPU Heatsink) |
| Drive Bay | 1 x 2.5" Internal HDD Bracket |
| Peripheral Bay | N/A |
| Backplane | N/A |
| Expansion Slot | 1 x Mini-PCIe expanded module |
| System Cooling | Customized Thermal Block Solution |

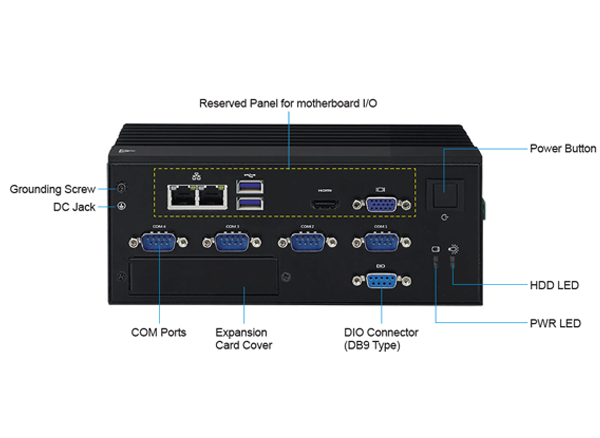

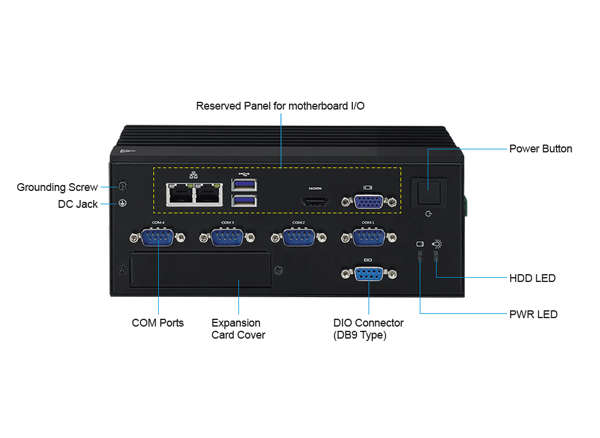

| Front Panel | Input / Output
1 x DIO via DB9 4 x COM I/O Depends on Motherboard Specification Button 1 x Power Button LED 1 x Power LED 1 x HDD Activity LED |
| Back Panel | N/A |

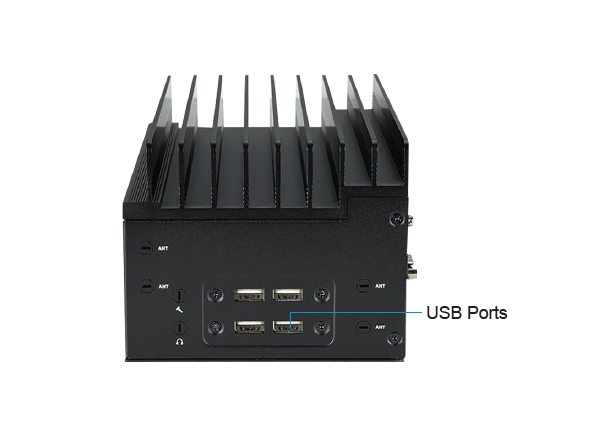

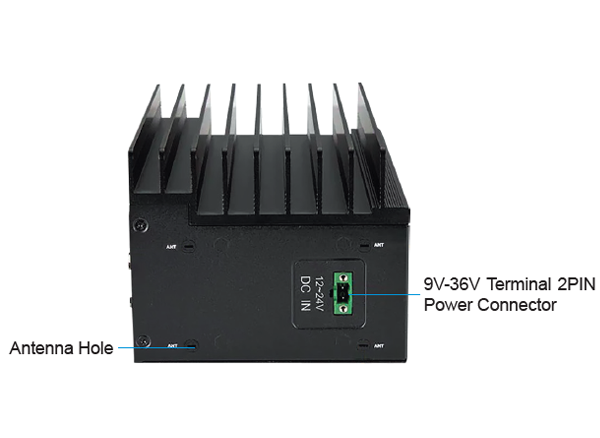

| Side Panel | 4 x Reserved Wifi Antenna Hole(2 on each side)
4 x USB 2.0 or 3.0 2 x Audio Jacks (Optional) SKU1：1 x Power Connector Terminal Block Type SKU2：DC Jack |
| Power Supply | External 12V Adapter(optional) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
