Fanless
CS-915
3.5 SBC Fanless Chassis
- Support 3.5” SBC motherboard, up to 15W CPU-TDP
- High-performance thermal solution
- Supports Wall-mount bracket
- Multi-extended I/O Connectors
- For SOHO, SMB Office application
| Model | CS-915 |
| M/B Form Factor | 3.5” SBC |

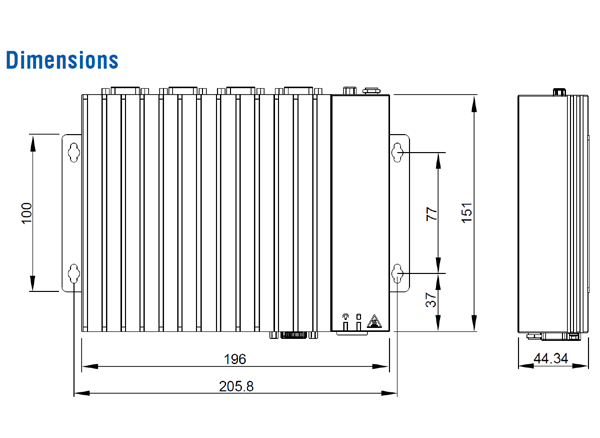

| Dimensions (W x D x H) | 195 x 151 x 44mm (7.68” x 5.94” x 1.73”) |
| Color | Black C |
| Processor Support | TDP<15W (depends on CPU Heatsink) |
| Drive Bay | N/A (support M.2 Module or SATA-DOM Type) |
| Peripheral Bay | N/A |
| Backplane | N/A |
| Expansion Slot | N/A |
| System Cooling | Customized Thermal Block Solution |

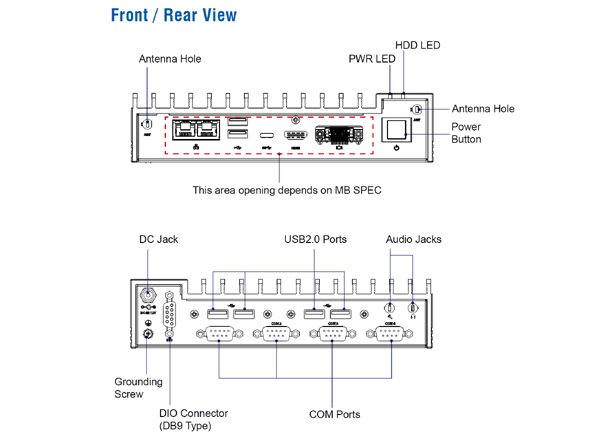

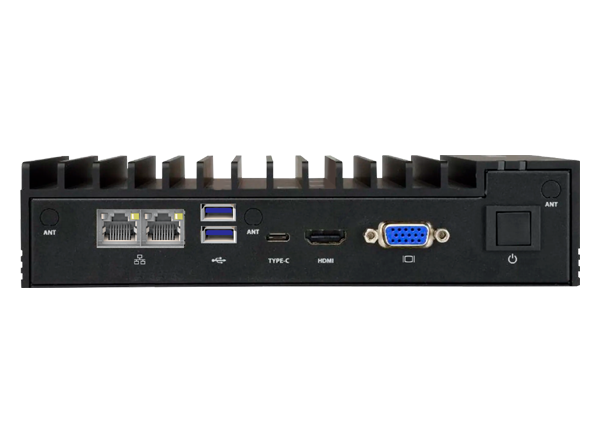

| Front Panel | Input / Output
2 x Wifi Antenna Hole (Reserved) I/O Depends on Motherboard Specification Button 1 x Power Button LED 1 x Power LED 1 x HDD Activity LED |

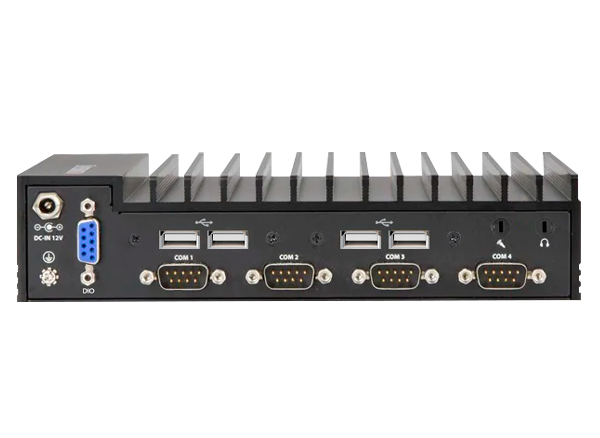

| Back Panel | 1 x DC Jack
1 x DIO via DB9 4 x USB 2.0 4 x COM 2 x Audio Jacks (MIC/SPK) |
| Side Panel | N/A |
| Power Supply | External 12V Adapter (optional) |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F) Operating Humidity: 5% ~ 85% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| Heatsink | ACL-S10010 | 1U Active Heatsink, LGA115X, AL fin+Cu plate |
| Heatsink | ACL-S10050 | 1U Passive Heatsink, LGA2011, Narrow |
| Heatsink | ACL-S10053 | 1U Passive Heatsink, LGA2011 |
