CS-E02
2U High Performance Mini-ITX Embedded Chassis
- Mini embedded chassis
- Supports Mini-ITX motherboard
- 1 x 3.5” or 2 x 2.5” internal HDD Bay (Option)

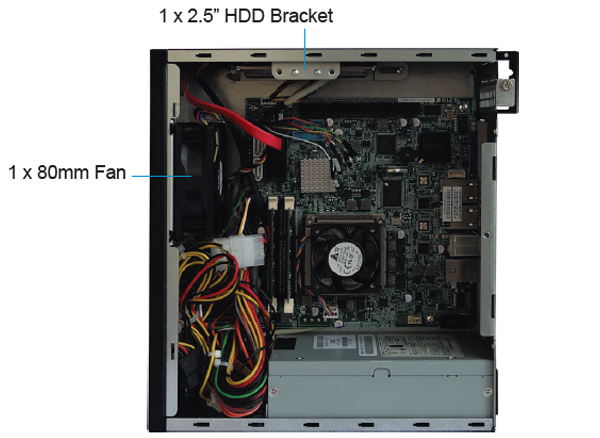

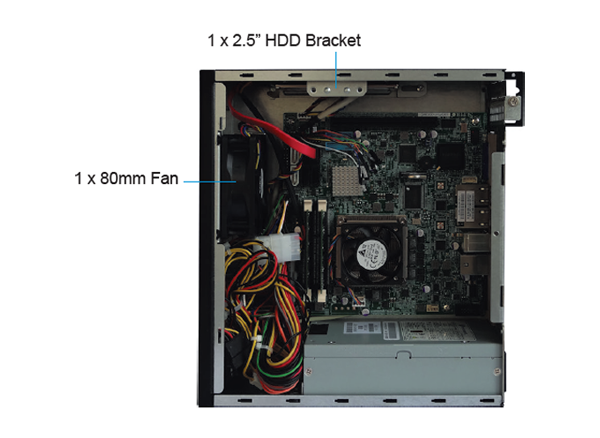

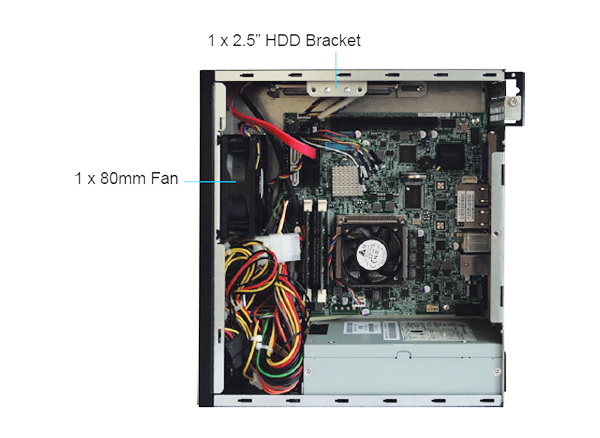

- 1 x 2.5” internal HDD Bay
- Supports 250W Flex-ATX power supply
- Supports VESA wall-mount bracket
| Model | CS-E02 |
| M/B Form Factor | Mini-ITX |

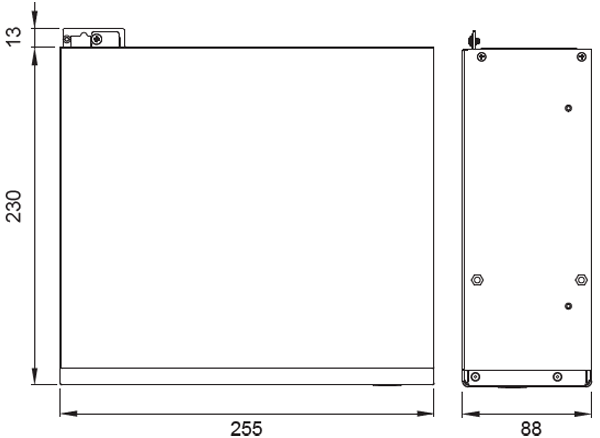

| Dimensions (W x D x H) | 255 x 228 x 88 mm (9.65" x 9.06" x 3.46") |
| Color | Black C |
| Processor Support | Dual and Single Intel® and AMD processors |
| Drive Bay | 1 x 3.5” or 2 x 2.5”internal HDD bays (optional)
1 x 2.5”internal HDD bay |
| Peripheral Bay | N/A |
| HDD Backplane | N/A |
| Expansion Slot | 1 x Low-Profile/ Half-Length (Dual Slot) |
| System Cooling | 1 x 80mm PWM fan |

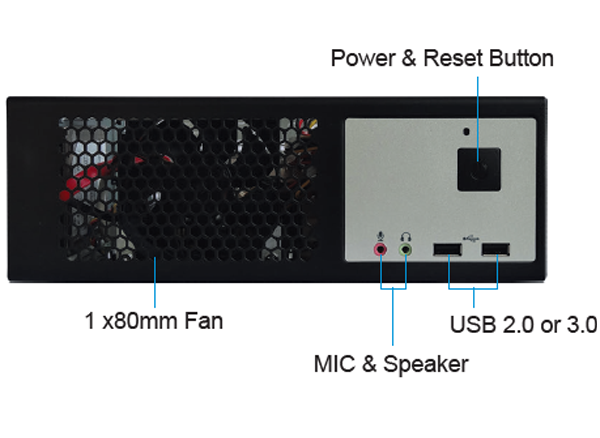

| Front Panel | Input / Output
2 x USB 2.0 or 3.0 2 x Audio Button 1 x Power Button 1 x Reset Button LED 1 x Power LED |
| Back Panel | N/A |
| Physical Secure | Kensington Lock Hole |
| Power Supply | 250W Flex-ATX Power Supply: D150 x W82 x H40mm |
| Environment | Operating Temperature: 10° ~ 40°C (50° ~ 104°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| Bracket | AC-K101 | Wall-mount Bracket (L Type) |
| USB | AC-U300 | USB 3.0 Dual Port Module with Audio |
| Heatsink | - | Please Check Heatsink Product List for More Optional |
